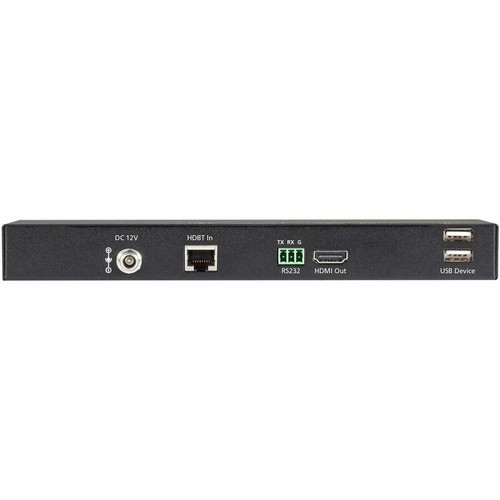

Black Box VX-1001-RX-R2 VX1000 Series Extender - 4K HDMI - CATx - USB - 330 ft Range - 2x RJ-45 - 2x USB - 1x HDMI Out
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This extender operates as a receiver in a transmitter-receiver pair, accepting signals over CATx cable from a compatible transmitter. It decodes and outputs 4K video through its HDMI port while simultaneously providing USB and network connectivity through dedicated RJ-45 and USB ports. The device supports common 4K graphics modes, ensuring compatibility with modern media players, computers, and AV sources.
The technical design prioritizes signal integrity over extended distances, utilizing advanced equalization and error correction to maintain video quality across the full 330-foot range. This makes it suitable for installations where cable runs traverse walls, ceilings, or between buildings without requiring expensive fiber optic infrastructure.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Graphics Modes, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VX1000 Series Extender simplifies long-distance AV deployments by consolidating video, USB, and network extension into a single, manageable solution. Its ability to use existing CATx cabling reduces installation costs and complexity compared to dedicated HDMI fiber extenders or wireless systems that may suffer from interference.
Unified Signal Extension
Extends 4K video, USB peripherals, and network connectivity simultaneously over one CATx cable, reducing cable clutter and simplifying system design.
- Single-cable solution for multiple signal types
- Eliminates separate extenders for video and data
Installation Flexibility
Includes mounting brackets for secure rack or wall mounting, and supports a wide range of international power supplies with included clips for US, EU, UK, and AU outlets.
- Tool-free mounting options
- Global power compatibility
Deployment / Use Cases
This extender is particularly effective in scenarios where AV source equipment must be centralized away from display locations. In corporate boardrooms, it allows presentation laptops and media players to be housed in a dedicated equipment rack while delivering flawless 4K video to wall-mounted displays. For digital signage networks, it enables centralized content management systems to control remote displays over long distances without compromising image quality.
Educational institutions benefit from its ability to extend instructor workstation signals to multiple classroom displays, supporting interactive teaching tools and video sources. In control room environments, the extender facilitates the placement of critical monitoring equipment in secure, temperature-controlled areas while providing real-time video feeds to operator consoles.
Conference & Training Rooms
Centralize AV sources in equipment closets while delivering high-quality 4K video to wall-mounted displays and projectors, reducing desktop clutter and improving cable management.
Digital Signage & Retail
Deploy content players in secure back-office locations and extend signals to storefront or lobby displays, simplifying maintenance and content updates across multiple screens.
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution for extension projects.
Highlights
- Extends 4K UHD video up to 330 feet over CATx cable
- Supports simultaneous USB and network extension alongside video
- Features 2x RJ-45 ports for network connectivity
- Includes 2x USB ports for peripheral extension
- Provides 1x HDMI output for display connection
- Compact, rack-mountable receiver design
- Includes international power supply clips for global deployment
- Comes with mounting brackets for flexible installation
- Compliant with RoHS and WEEE environmental standards
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VX-1001-RX-R2 |
| Brand Name | Black Box |
| Product Name | VX1000 Series Extender - 4K, HDMI, CATx, USB |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Video | |
| Graphics Modes | 4K,4K UHD |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Receiver Height | 0.98" (24.89 mm) |
| Receiver Width | 8.66" (219.96 mm) |
| Receiver Depth | 3.67" (93.22 mm) |
| Receiver Weight (Approximate) | 1.80 lb (816.47 g) |
| Miscellaneous | |
| Package Contents | VX1000 Series Extender - 4K, HDMI, CATx, USB 1 x 12-VDC, 1.5-A Power Supply with US, EU, UK, and AU Power Clips 1 x 3.5-mm 3-pin Phoenix Male Connector 2 x Mounting Brackets User Manual |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum distance this extender can transmit 4K video?
The Black Box VX1000 Series Extender supports a maximum operating distance of 330 feet (100584 mm) over standard CATx twisted-pair cable. This range allows for flexible installation in large rooms, between floors, or across buildings while maintaining 4K UHD video quality at 3840 x 2160 resolution.
Does this extender require a separate transmitter unit?
Yes, this product is a receiver unit designed to work with a compatible transmitter from the VX1000 series. The transmitter connects to the AV source equipment, while this receiver connects to the display and peripherals, with CATx cable carrying the signals between them. Always verify transmitter compatibility for your specific installation.
What types of signals can be extended besides video?
In addition to 4K HDMI video, this extender supports USB and network (RJ-45) signals over the same CATx cable. It features two USB ports for extending peripherals like keyboards, mice, or storage devices, and two RJ-45 ports for network connectivity, enabling comprehensive AV and data extension in a single solution.
What cabling is required for installation?
The extender uses standard twisted-pair CATx cable (such as CAT5e, CAT6, or higher) for signal transmission between the transmitter and receiver. This common, cost-effective cabling is widely available and easier to install than dedicated HDMI fiber cables, making it suitable for retrofitting existing infrastructure.
Can this extender be mounted in a rack?
Yes, the receiver includes two mounting brackets that support standard 19-inch rack mounting. Its compact dimensions of 8.66" wide, 3.67" deep, and 0.98" high allow it to fit in shallow equipment racks, while the 1.80 lb weight ensures stable mounting without requiring additional support hardware.
What power options are included with the extender?
The package includes a 12-VDC, 1.5-A power supply with interchangeable power clips for US, EU, UK, and AU outlets, providing global compatibility. This allows for deployment in international environments without needing separate power adapters, simplifying logistics for multi-location installations.
