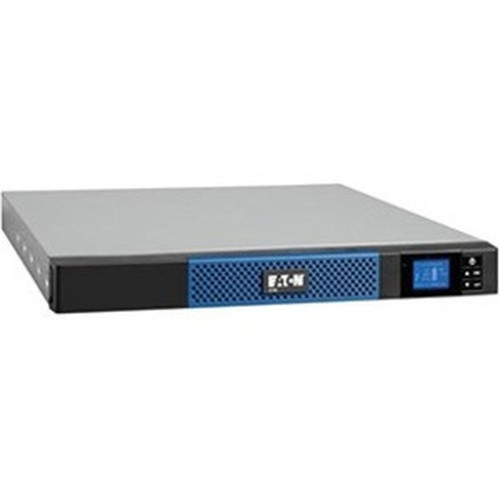

Eaton 5P1500R-L 1500VA 1U Rack/Wall Mountable UPS - 1.50 kVA / 1.10 kW - 6 Outlets - LiFePO4 Battery - 4 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 5P1500R-L is a line-interactive UPS engineered to deliver 1500VA/1.10kW of reliable backup power for critical IT infrastructure. This unit provides essential runtime for safe system shutdowns during power disruptions, protecting sensitive equipment from data loss and hardware damage. Its 1U rack-optimized or wall-mountable chassis makes it ideal for space-constrained environments where rack density is a priority.
Featuring six NEMA 5-15R outlets, the UPS supports multiple devices simultaneously, from networking gear to small servers. The advanced lithium iron phosphate (LiFePO4) battery chemistry offers significantly extended service life and faster recharge cycles compared to traditional lead-acid batteries. With input voltage support for 100V, 120V, and 125V AC systems, this UPS maintains stable output across varying power conditions, ensuring consistent performance in diverse electrical environments.
Designed with professional deployment in mind, the 5P1500R-L includes both USB and RJ-45 connectivity for comprehensive management options. The clear LED status indicators provide immediate visual feedback on load protection, battery operation, and fault conditions. This combination of capacity, connectivity, and monitoring makes it a versatile solution for modern IT protection needs.
Technical Overview
This line-interactive UPS operates with 60Hz input and output frequency, maintaining pure sine wave output for compatibility with sensitive electronics including servers, storage systems, and networking equipment. The input voltage range spans 89V to 151V AC, providing robust brownout protection and automatic voltage regulation that stabilizes power without switching to battery mode unnecessarily.
Communication interfaces include a USB HID-compliant port for direct computer connectivity and an RJ-45 network port for optional Eaton NETWORK-M2 Gigabit management card integration. These interfaces enable remote monitoring, configuration, and automated shutdown capabilities through Eaton's power management software. The unit's environmental specifications support operation at elevations up to 9842.52 feet and temperatures up to 104°F, ensuring reliable performance in diverse deployment scenarios.
The battery system features user-replaceable lithium iron phosphate cells with Eaton's exclusive ABM (Advanced Battery Management) technology. This three-stage charging system optimizes battery health, extends service life by up to 50%, and enables three times faster recharge after power events compared to conventional charging methods. The replaceable battery design simplifies maintenance and reduces long-term ownership costs.
Key Product Advantages
The Eaton 5P1500R-L combines rack-density with robust power protection features essential for modern IT environments. Its lithium iron phosphate battery delivers three times longer lifespan than conventional batteries, reducing maintenance frequency and total cost of ownership.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Battery Management, Flexible Deployment.
Advanced Battery Management
Exclusive ABM technology with 3-stage charging extends internal battery life by 50% while enabling three times faster recharge after power events.
- 50% longer battery life
- 3x faster recharge
- Reduced vulnerability window
Flexible Deployment
The 1U form factor fits standard 19-inch racks while offering wall-mount capability for space-constrained installations.
- 1U rack height
- Wall mountable
- Standard rack compatibility
Deployment / Use Cases
This UPS is engineered for network closets, server rooms, and edge computing locations where reliable backup power is critical. The 1500VA capacity supports typical rack-mounted equipment including switches, routers, security appliances, and small servers.
The 1U profile maximizes rack space utilization while providing sufficient runtime for orderly shutdowns. Wall-mount capability makes it suitable for telecommunications cabinets, point-of-sale systems, and industrial control panels where rack space is unavailable.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Receptacle Detail: 6 x NEMA 5-15R, Load Capacity (VA): 1.50 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Network Infrastructure Protection
Safeguards core networking equipment during power events, maintaining connectivity until generators engage or systems shut down properly.
Edge Computing Support
Provides backup power for distributed IT assets in remote offices, retail locations, and manufacturing facilities with limited power infrastructure.
Physical Profile
The compact 1U chassis measures 1.70 inches in height, 17.24 inches in width, and 21.81 inches in depth, fitting standard 19-inch rack enclosures with minimal space consumption. At 36.40 pounds, the unit maintains manageable weight for single-person installation while providing substantial power protection capacity. The rack/wall mountable design offers deployment flexibility for both data center and edge computing environments.
Front-panel LED indicators provide clear status visibility in rack-mounted configurations, with separate indicators for load protection, battery operation, and fault conditions. The unit's 45 dB sound emission rating ensures quiet operation suitable for office environments and network closets. The environmental compliance includes RoHS certification and environmentally friendly construction, meeting modern sustainability standards for IT equipment deployment.
- Width
- 17.24" (438 mm)
- Depth
- 21.81" (554 mm)
- Height
- 1.70" (43.20 mm)
- Weight
- 36.40 lb (16510.76 g)
What's in the Box
The package includes all components needed for immediate deployment of the UPS system.
Highlights
- 1500VA/1.10kW line-interactive UPS with 4-minute full load runtime
- 1U rack-mountable or wall-mountable form factor for space efficiency
- Lithium iron phosphate (LiFePO4) battery with extended lifespan
- Six NEMA 5-15R outlets for multiple device protection
- Input voltage support for 100V, 120V, and 125V AC systems
- USB and RJ-45 ports for management and monitoring
- LED status indicators for load, battery, and fault conditions
- 5-year limited warranty for long-term reliability assurance
- RoHS compliant and environmentally friendly construction
- Optional NETWORK-M2 Gigabit card enables remote management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P1500R-L |
| Brand Name | Eaton |
| Product Series | 5P |
| Product Model | 5P1500R-L |
| Product Name | 5P1500R-L 1500VA Rack/Wall Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.10 kW |
| Input Voltage | 120 V AC,100 V AC,125 V AC |
| Input Voltage Range | 89 V AC - 151 V AC |
| Output Voltage | 120 V AC,100 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Controls/Indicators | |
| Status Indicators | LEDs: Load protected On battery Fault |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 90% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Physical Characteristics | |
| Height | 1.70" (43.20 mm) |
| Width | 17.24" (438 mm) |
| Depth | 21.81" (554 mm) |
| Rack Height | 1U |
| Form Factor | Rack/Wall Mountable |
| Weight (Approximate) | 36.40 lb (16510.76 g) |
| Miscellaneous | |
| Package Contents | 5P1500R-L 1500VA Rack/Wall Mountable UPS 6-foot RS-232 Cable USB Cable |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Eaton 5P1500R-L provides 1500VA (1.50 kVA) and 1100W (1.10 kW) of backup power capacity, suitable for protecting critical IT equipment like servers, networking gear, and storage systems during power disruptions.
What runtime can I expect at full and half load?
At full load, this UPS offers 4 minutes of runtime, allowing for safe system shutdowns. At half load, runtime extends to 11 minutes, providing additional flexibility for managing power events in environments with varying equipment demands.
How many outlets does this UPS have?
It includes six NEMA 5-15R outlets, enabling simultaneous protection for multiple devices such as switches, routers, and small servers, with all outlets supporting battery backup and surge protection.
What input and output voltages are supported?
The UPS supports input and output voltages of 100V, 120V, and 125V AC, with an input range of 89V to 151V AC. This wide range ensures stable performance in diverse electrical environments and provides automatic voltage regulation.
Is this UPS designed for rack or tower deployment?
This unit features a 1U rack/wall mountable form factor, making it ideal for standard 19-inch rack enclosures in data centers or wall-mounted installations in space-constrained areas like network closets or edge computing sites.
What management and connectivity options are available?
It includes a USB HID-compliant port for direct computer connectivity and an RJ-45 network port for optional Eaton NETWORK-M2 Gigabit management card integration, enabling remote monitoring, configuration, and automated shutdown capabilities via power management software.
