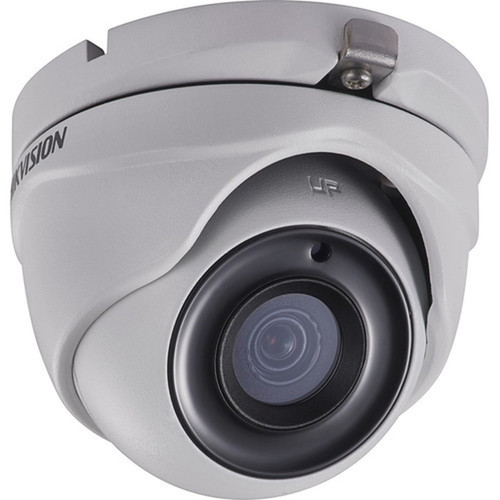

Hikvision DS-2CE56D8T-ITM 6MM Turbo HD 2MP Turret Camera - 1080p - 65. 62ft IR - Fixed 6mm Lens - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera utilizes Hikvision's Turbo HD technology to deliver high-definition video over traditional coaxial cabling, making it compatible with existing infrastructure while providing improved image quality over standard analog systems. The 2-megapixel CMOS sensor captures video at 1920x1080 resolution, offering sufficient detail for identification and monitoring purposes in most business environments.

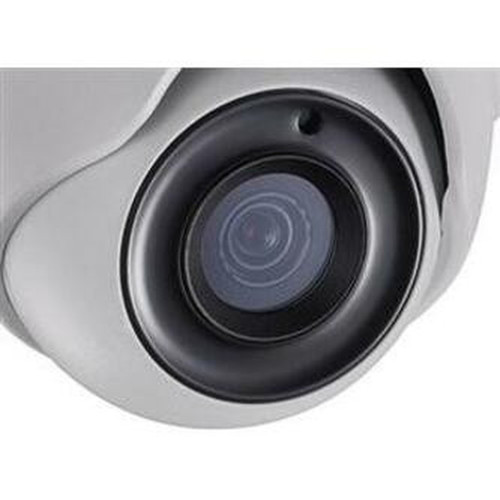

The camera's imaging system supports both color and monochrome operation, with automatic switching to black-and-white infrared mode when lighting conditions drop below usable levels. The fixed 6mm lens provides a consistent field of view without the complexity of adjustable optics, while the integrated EXIR infrared LEDs illuminate subjects up to 65.62 feet away without creating hot spots or overexposure in the center of the frame.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Hikvision turret camera delivers several practical advantages for surveillance system operators seeking reliable monitoring without excessive complexity or cost. The combination of proven technologies and thoughtful design choices results in a camera that performs consistently in diverse lighting conditions while remaining easy to install and maintain.
Enhanced Low-Light Performance
The EXIR infrared technology provides even illumination across the entire field of view, eliminating the common 'hot spot' effect where subjects in the center appear overexposed while peripheral areas remain dark. This results in usable night vision footage throughout the entire 65.62-foot range.
- Even infrared distribution
- No center hot spots
- Consistent illumination
Practical Turret Design
The turret form factor offers vandal resistance and weather protection while maintaining a lower profile than traditional dome cameras. The design allows for easy adjustment during installation while preventing casual tampering or redirection after deployment.
- Discrete appearance
- Vandal-resistant design
- Easy installation adjustment
Backward Compatibility
Turbo HD technology maintains compatibility with existing coaxial cabling infrastructure while delivering significantly improved image quality over standard analog systems. This allows for surveillance upgrades without complete rewiring of facilities.
- Works with existing coax
- Improved over analog
- Cost-effective upgrades
Deployment / Use Cases
The DS-2CE56D8T-ITM 6MM camera is well-suited for various business and institutional surveillance applications where reliable 24/7 monitoring is required. Its combination of image quality, night vision capability, and physical design makes it appropriate for both indoor and outdoor installations in controlled environments.
Retail establishments benefit from this camera's 1080p resolution for identifying customers and monitoring point-of-sale areas, while the turret design blends discreetly into commercial interiors. Office buildings and corporate campuses can deploy these cameras in lobbies, hallways, and parking areas where the 65.62-foot night vision range provides adequate coverage during overnight hours. Educational institutions find the vandal-resistant turret design particularly valuable in high-traffic student areas where equipment durability is essential.
Retail Surveillance
Monitor sales floors, entryways, and stock rooms with clear 1080p video that captures sufficient detail for identification while the turret design maintains a professional appearance that doesn't intimidate customers.
Perimeter Security
Deploy along building exteriors and parking areas where the 65.62-foot infrared range provides adequate coverage during nighttime hours without requiring additional lighting infrastructure.
Physical Profile
This turret camera measures 2.69 inches in height with a 3.58-inch diameter, creating a compact footprint that installs discreetly in most environments. The 350-gram weight ensures stable mounting without excessive stress on installation surfaces. The camera supports junction box, wall, and pole mounting configurations, providing flexibility for different architectural requirements and surveillance objectives.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.69" (68.30 mm), 350 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 2.69" (68.30 mm)
- Weight
- 350 g
- Length
- 6 mm
Highlights
- 2-megapixel CMOS sensor captures 1920x1080 resolution video
- EXIR infrared illumination provides night vision up to 65.62 feet (20 meters)
- Turbo HD technology delivers improved image quality over standard analog
- Fixed 6mm lens offers consistent field of view without adjustment complexity
- Turret form factor provides vandal resistance and discreet appearance
- Supports junction box, wall, and pole mounting for installation flexibility
- Wired connectivity ensures reliable video transmission
- Color and monochrome operation with automatic infrared switching
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE56D8T-ITM 6MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE56D8T-ITM |
| Product Name | 2 MP Ultra Low-Light EXIR Turret Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Wall Mount,Pole Mount |
| Form Factor | Turret |
| Height | 2.69" (68.30 mm) |
| Diameter | 3.58" (91 mm) |
| Weight (Approximate) | 350 g |
User Manual
FAQ
What resolution does this Hikvision camera record at?
The DS-2CE56D8T-ITM 6MM records at 1920x1080 resolution, which is full HD quality. This 2-megapixel resolution provides sufficient detail for identifying subjects and monitoring activities in most business surveillance scenarios, offering a significant improvement over standard analog cameras while maintaining compatibility with existing coaxial infrastructure through Hikvision's Turbo HD technology.
How far does the night vision reach on this camera?
This camera features integrated EXIR infrared LEDs that provide illumination up to 65.62 feet (20 meters) in complete darkness. The EXIR technology distributes infrared light evenly across the field of view, eliminating the common 'hot spot' effect where the center of the image becomes overexposed while peripheral areas remain dark, resulting in usable night vision footage throughout the entire range.
What type of lens does this camera have?
This camera features a fixed 6mm lens that provides a consistent field of view without the complexity of adjustable optics. Fixed lenses are ideal for surveillance applications where the monitoring area remains constant, as they eliminate the potential for accidental or intentional adjustment after installation while maintaining optical clarity and reliability over time.
What mounting options are available for this turret camera?
The DS-2CE56D8T-ITM 6MM supports junction box mounting, wall mounting, and pole mounting configurations. This flexibility allows installers to adapt the camera to different architectural requirements and surveillance objectives. The turret design itself provides vandal resistance and weather protection while maintaining a lower profile than traditional dome cameras in most installation scenarios.
Is this camera compatible with existing analog systems?
Yes, this camera utilizes Hikvision's Turbo HD technology, which maintains compatibility with traditional coaxial cabling infrastructure while delivering significantly improved image quality over standard analog systems. This allows businesses to upgrade their surveillance capabilities without completely rewiring their facilities, making it a cost-effective option for improving existing security systems.
What are the physical dimensions of this camera?
The camera measures 2.69 inches in height with a diameter of 3.58 inches, creating a compact footprint that installs discreetly in most environments. It weighs approximately 350 grams, which ensures stable mounting without excessive stress on installation surfaces. The turret form factor provides a balance of visibility for deterrent effect and discretion for blending into commercial environments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
