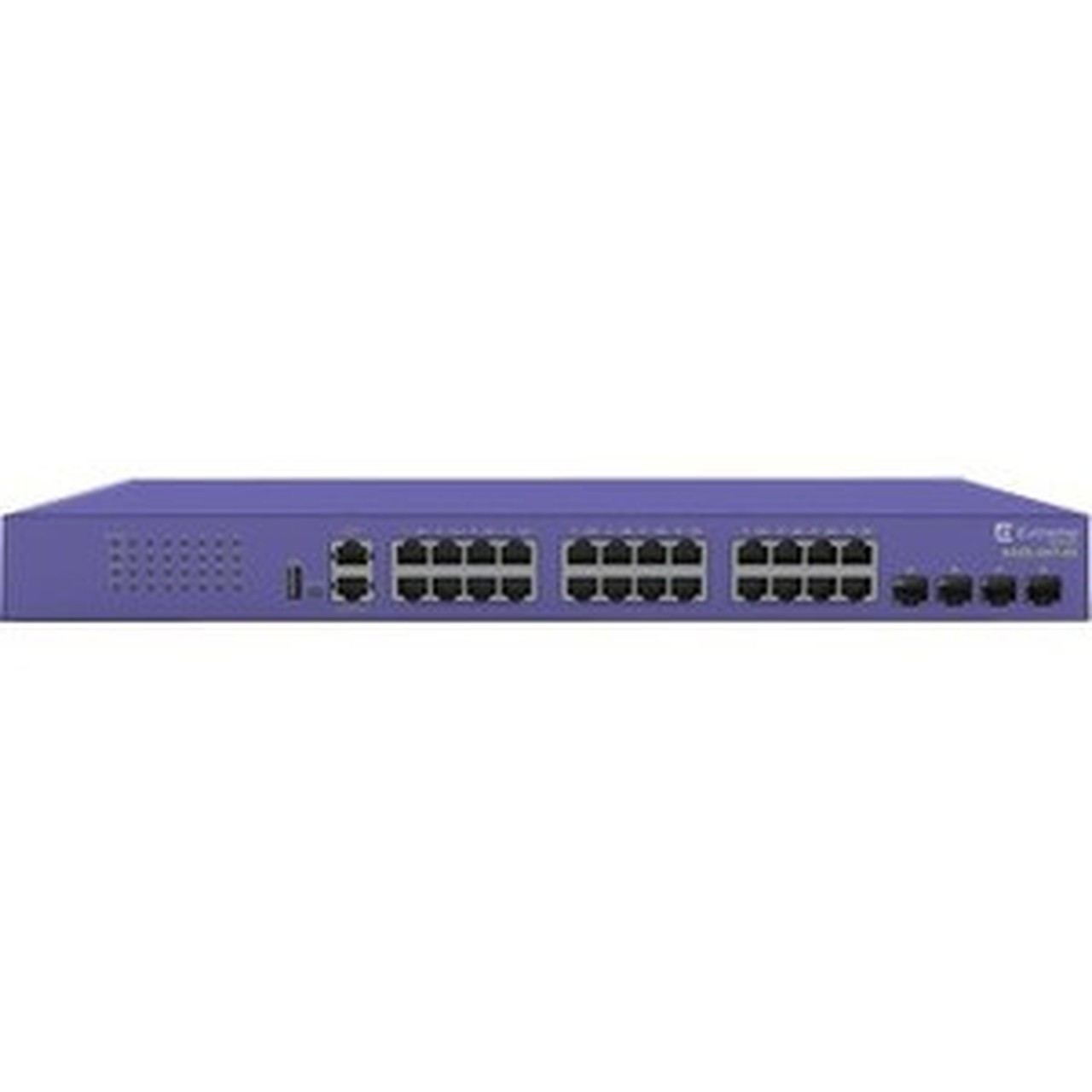

Extreme Networks ExtremeSwitching X435-24T-4S Ethernet Switch - 24 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - - (X435-24T-4S)

Marketing Information: ExtremeSwitching™ X435 Series

Economical Edge Switches for Distributed Enterprises, Branches and Small Sites

The ExtremeSwitching X435 Series are economical, standalone Ethernet switches suited to the needs of cost-conscious enterprises looking for a value-based edge solution. Powered by Extreme Networks ExtremeXOS, the X435 Series offers comprehensive Layer 2 switching, static routing, advanced PoE, role-based policy and comprehensive security services. This makes it ideal for enterprises looking for cost-effective Ethernet connectivity in their branch/small sites or at their network edge.

The X435 Series consist of three 8-port compact Gigabit Ethernet switches and two 24-port Gigabit Ethernet models with up to 4 x 1 / 2.5 Gb SFP uplink ports. 8-port models come without a fan enabling quiet operation in noise sensitive environments. IEEE 802.3at PoE+ models are also available to power connected IP Phones, wireless APs, surveillance cameras or other devices.

The family also includes an 8-port model supporting PoE pass-through that can draw power from an upstream PoE switch while providing up to 100W of downstream PoE to connected Ethernet devices.

Total Number of Network Ports: 24

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details: 24 x Gigabit Ethernet Network,4 x 2.5 Gigabit Ethernet Expansion Slot

Media Type Supported: Twisted Pair,Optical Fiber

Ethernet Technology: Gigabit Ethernet,2.5 Gigabit Ethernet

Network Technology: 10/100/1000Base-T,2.5GBase-X

Total Number of Expansion Slots: 4.0

Expansion Slot Type: SFP (mini-GBIC)

Number of SFP Slots: 4

Layer Supported: 2

Manageable: Yes

Power Source: Power Supply

Form Factor: Wall Mountable,Rack-mountable

Height: 1.73" (43.94 mm)

Width: 17.40" (441.96 mm)

Depth: 10" (254 mm)

Weight (Approximate): 2.95 kg
