Plugable USB 3.0 Universal Laptop Docking Station for Windows and Mac - (Dual Monitor: HDMI and DVI/HDMI/VGA, Gigabit Ethernet, Audio, (UD-3900H)

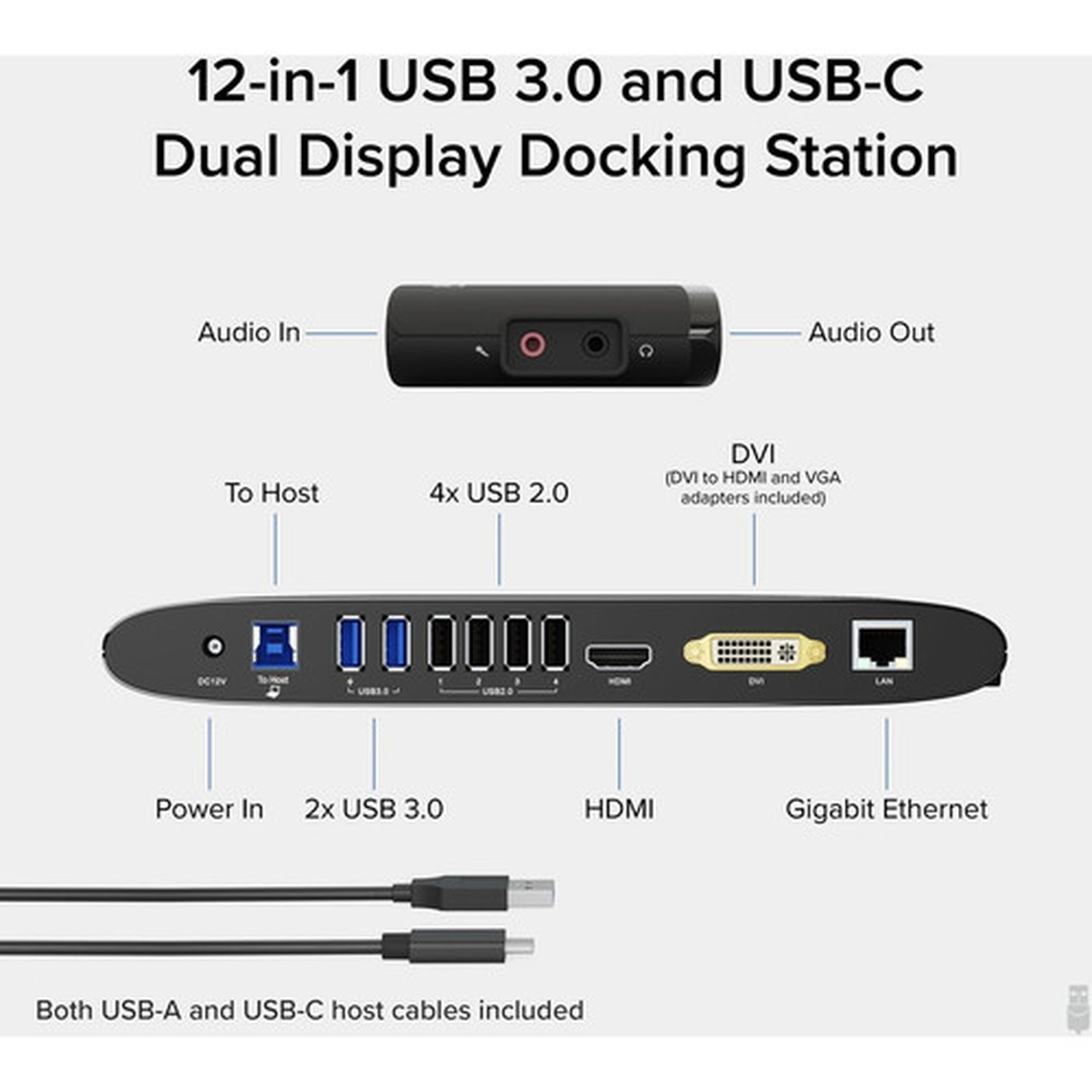

Marketing Information: USB docking station is a one-stop upgrade for your Windows tablet, laptop, or desktop. Connect up to 10 accessories through a single USB cable. Includes the latest drivers and firmware for compatibility with Windows 11 and earlier. Fully backward compatible with USB 2.0 PCs and devices. Features two graphics ports: an HDMI port and a DVI-I port with VGA adapter for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port (10/100/1000 supported, full-duplex required), audio input/output, two USB 3.0 ports, and four USB 2.0 ports.
Great hot desking or hoteling solution when using multiple laptop docking stations in an office space.
Compatibility
Windows 11, 10, 8.1, 8, and 7 and macOS 10.14+ drivers available
USB graphics require dual-core 2GHz+ CPU for best performance. If connecting via USB 3.0, up-to-date USB drivers on host system recommended.
DVI dual-link connection not supported. 2560x1440 (1440P) resolution only available with native HDMI monitor. 1440P not supported when using HDMI-to-DVI adapter/cable or DVI monitor.
Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.
Linux/Unix are not supported.
Power and Charging

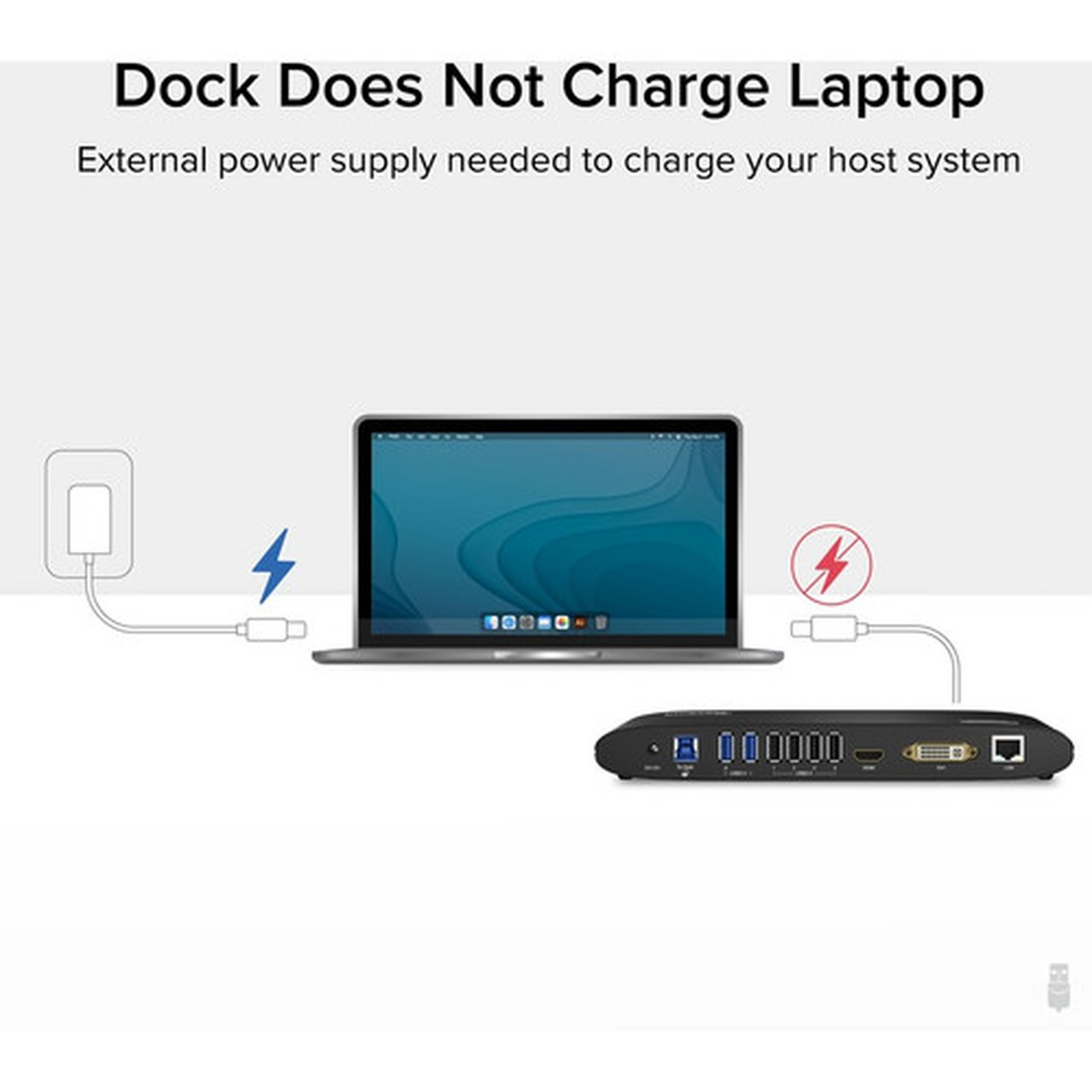

Includes robust 20W UL certified power supply. USB ports function as hub only, does not provide power to devices
In the Box

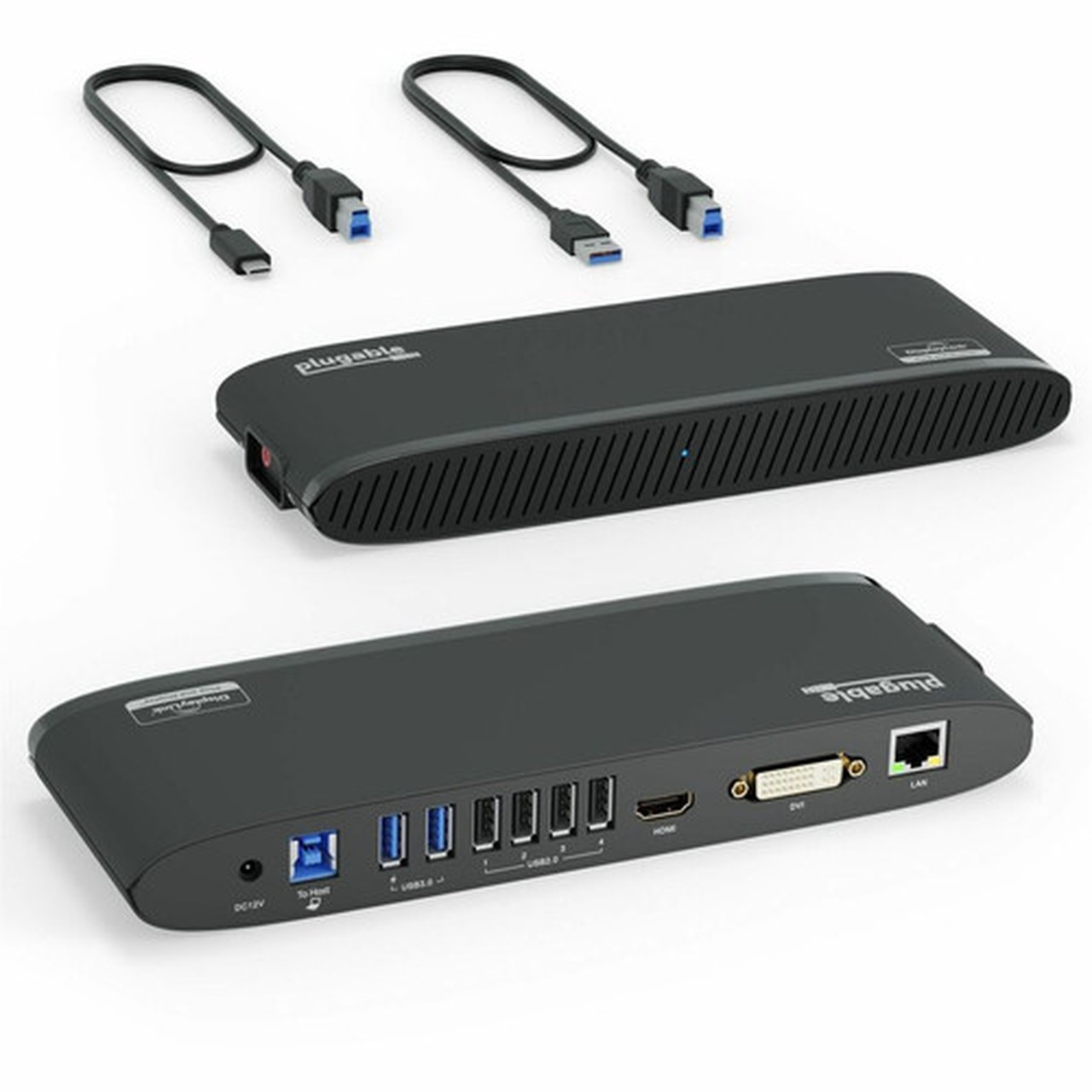

UD-3900H, premium 20W UL certified power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable, USB 3.0 Type-C to Type-C cable, DVI-to-VGA adapter, DVI-to-HDMI adapter, quick-install guide

More from the Manufacturer

Connectivity Technology: Wired

Number of Displays Supported: 2

Supported Resolutions: 1920 x 1080,1920 x 1200,1600 x 900,1280 x 1024,1280 x 800,1280 x 720,1152 x 864,1024 x 768,800 x 600,640 x 480,2048 x 1152

Screen Mode Supported: HD

Device Supported: Notebook/Desktop PC

Ethernet Technology: Gigabit Ethernet

Host Interface: USB 3.0

Audio Line In: Yes

Audio Line Out: Yes

Total Number of USB Ports: 6

Number of USB 2.0 Ports: 4

Number of USB 3.0 Ports: 2

Number of USB Type-A Ports: 6

USB Type-A: Yes

Number of RJ-45 Ports: 1

Network (RJ-45): Yes

Number of HDMI Outputs: 1

HDMI: Yes

HDMI Version: 1.3

DVI: Yes

Operating System Supported: Windows,macOS

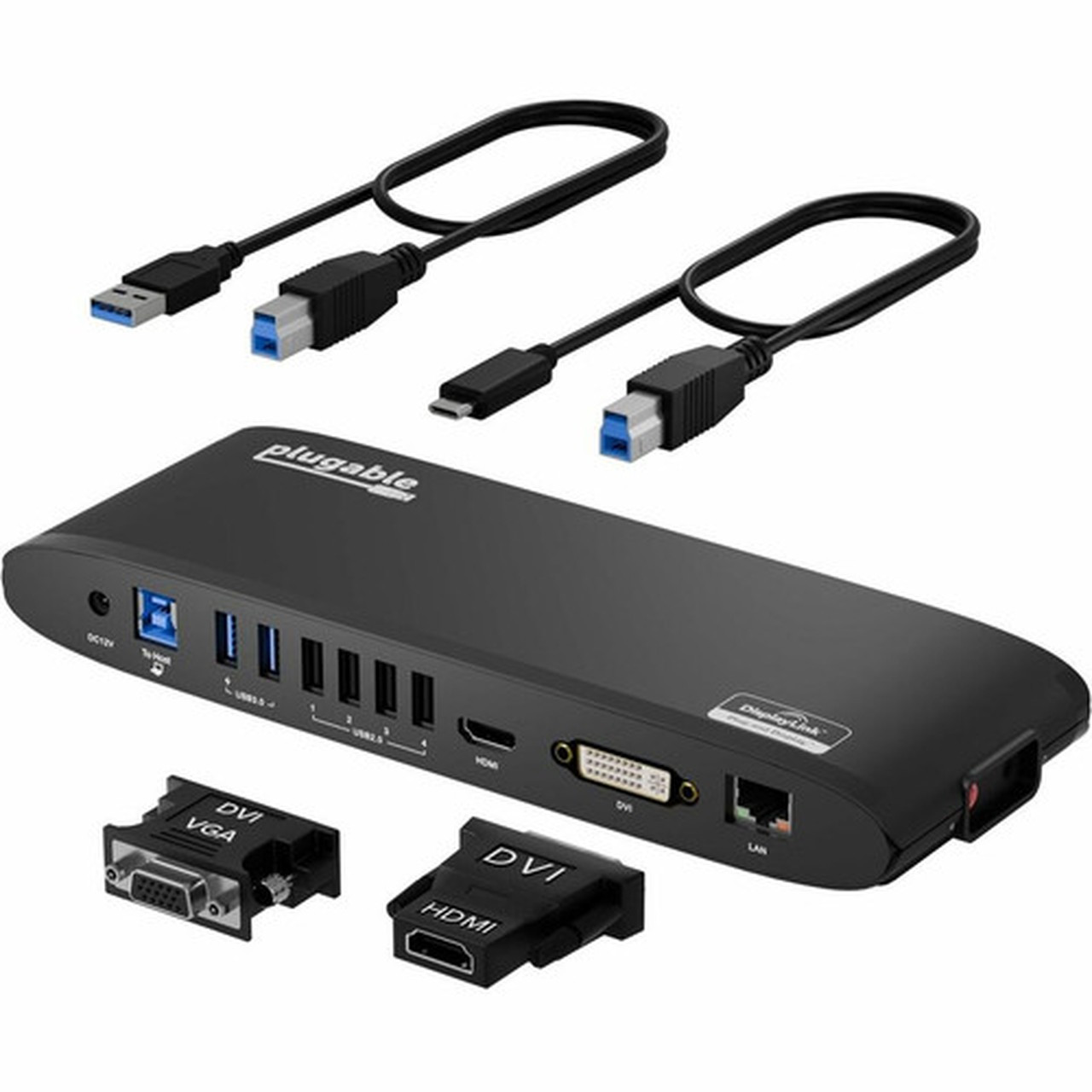

Package Contents:

• USB 3.0 Dual Monitor Horizontal Docking Station
• 1 x Power Adapter
• 1 x Passive DVI to HDMI adapter
• 1 x Passive DVI to VGA adapter
• 1 x USB 3.0 A to B Cable
• 1 x USB 3.0 C to B Cable
• 1 x Quick Start Guide

Compatibility:

Minimum System Requirements:

• CPU/APU:
  • Intel Core i5 or i7 2+GHz
  • AMD A8 2+GHz or newer
• Graphics with fully updated drivers:

  • Intel HD 4000 or better
  • AMD Radeon HD 7xxx series or better
  • NVIDIA GeForce 5xxM or better
• Connectivity/Ports:
  • USB 3.0 Standard-A or USB-C (with USB 3.0 5Gbps or 10Gbps capability)
• Displays:
  • First display: 1x HDMI input, up to 1920x1200 or 1080P resolution
  • Second display: 1x HDMI, 1x DVI, or 1x VGA input, up to 1920x1200 or 1080P resolution
  • 1366x768 resolution displays are not supported
  • HDR (High Dynamic Range) and refresh rates over 60Hz are not supported.

Country of Origin: China

Limited Warranty: 2 Year
