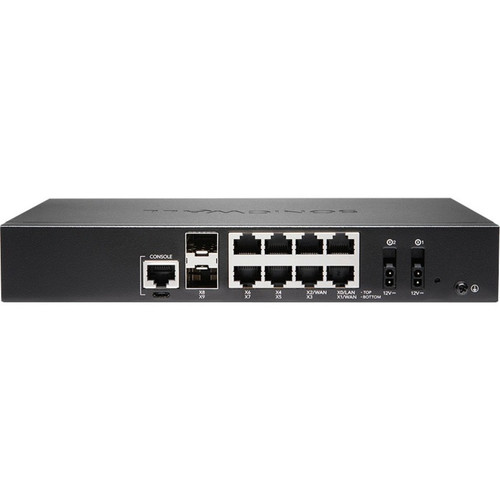

SonicWall 02-SSC-5671 TZ570W Network Security Firewall Appliance - 10 Port Gigabit Ethernet - Wireless 802. 11ac - Desktop/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TZ570W delivers enterprise-grade security features in a compact form factor suitable for branch offices, retail locations, and distributed networks. Its 10-port configuration includes both copper RJ-45 interfaces and expansion capabilities through two SFP+ slots, providing flexibility for fiber uplinks or additional network segmentation.
Wireless connectivity is integrated through IEEE 802.11ac technology, eliminating the need for separate access points while maintaining consistent security policies across wired and wireless segments. The appliance supports comprehensive encryption standards including multiple AES variants, 3DES, and WPA2 for secure communications.
This section brings together practical product details such as Firewall Protection Supported, Encryption Standard, Total Number of Ports, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TZ570W simplifies network security deployment by combining multiple protection layers into a single appliance. Its integrated approach reduces hardware sprawl while maintaining consistent security policies across all network traffic, whether originating from wired desktops, wireless devices, or remote VPN connections.
Unified Security Platform
Combines firewall, intrusion prevention, malware protection, content filtering, and wireless security in one manageable device, eliminating the need for multiple security appliances.
- Application control and URL filtering
- Stateful packet inspection
- Signature-based intrusion prevention
Flexible Deployment Options
Supports both desktop placement and standard rack mounting, with expansion capabilities through SFP+ slots for fiber connectivity or additional network interfaces.
- Dual form factor design
- High port density
- Future-proof expansion
Integrated Wireless Connectivity
Built-in 802.11ac wireless eliminates separate access point requirements while maintaining consistent security policies across all network segments.
- Simplified wireless deployment
- Unified security management
- Reduced hardware footprint
Deployment / Use Cases
The SonicWall TZ570W is ideally suited for small to medium business environments requiring comprehensive network security with minimal hardware complexity. Its combination of wired and wireless capabilities makes it particularly effective for retail locations, professional offices, and branch operations where space and management resources are limited.
Educational institutions can leverage the TZ570W's content filtering and application control features to maintain safe browsing environments, while healthcare practices benefit from the appliance's ability to secure both wired medical devices and wireless patient access networks. The rack-mountable option makes it suitable for IT closet installations where space optimization is critical.
Branch Office Security
Provides complete edge protection for remote offices with integrated wireless, VPN connectivity for headquarters communication, and centralized management capabilities.
Retail & Hospitality
Secures both point-of-sale systems and guest wireless networks while maintaining PCI compliance through comprehensive firewall and intrusion prevention features.
Physical Profile
The TZ570W features a compact desktop design that can also be rack-mounted using appropriate mounting hardware. With dimensions of 8.86" wide by 5.91" deep and just 1.38" in height, the appliance fits easily on office shelves or in standard network racks. The 2.18-pound weight makes it easily portable for temporary deployments or site-to-site moves.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.38" (35 mm), 8.86" (225 mm), 5.91" (150 mm), 2.18 lb (990 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.86" (225 mm)
- Depth
- 5.91" (150 mm)
- Height
- 1.38" (35 mm)
- Weight
- 2.18 lb (990 g)
Highlights
- 10 Gigabit Ethernet ports for high-density connectivity
- Integrated IEEE 802.11ac wireless eliminates separate access points
- Desktop or rack-mountable form factor for flexible deployment
- Deep packet inspection firewall with application control
- Secure IPsec VPN for remote access and site-to-site connections
- Two SFP+ expansion slots for fiber uplinks
- Comprehensive threat protection including malware and intrusion prevention
- Centralized management through cloud or local interfaces
- USB port for additional connectivity options
- Compliant with WEEE, RoHS, and REACH environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 02-SSC-5671 |
| Brand Name | SonicWall |
| Product Series | TZ |
| Product Model | TZ570W |
| Product Name | TZ570W Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Intrusion Prevention,Malware Protection,Application Control,Content Filtering,Spyware Protection,URL Filtering,Denial of Service (DoS),Stateful Packet Filtering,Signature-based Intrusion Prevention,Distributed Denial of Service (DDoS),Threat Protection,Secure IPsec VPN Connectivity,Deep Inspection Firewall |
| Encryption Standard | DES,3DES,MD5,SHA-1,AES (128-bit),AES (192-bit),AES (256-bit),WPA,WEP,WPA2,TKIP |
| Interfaces/Ports | |
| Total Number of Ports | 10 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.38" (35 mm) |
| Width | 8.86" (225 mm) |
| Depth | 5.91" (150 mm) |
| Weight (Approximate) | 2.18 lb (990 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
How many network ports does the SonicWall TZ570W have?
The TZ570W features 10 total network ports, all of which are RJ-45 Gigabit Ethernet interfaces. These ports support 10/100/1000Base-T connections for connecting wired devices, servers, switches, and other network infrastructure. Additionally, the appliance includes two SFP+ expansion slots for adding fiber optic connections or additional network interfaces as needed.
Does this firewall appliance include wireless capabilities?
Yes, the TZ570W includes integrated IEEE 802.11ac wireless connectivity. This built-in wireless functionality eliminates the need for separate access points while maintaining consistent security policies across both wired and wireless network segments. The wireless capabilities support modern Wi-Fi standards for reliable connectivity to laptops, mobile devices, and other wireless equipment.
Can the TZ570W be rack-mounted?
The TZ570W supports both desktop placement and standard rack mounting. The appliance is designed with a dual form factor that allows it to sit on a desktop or shelf, or be mounted in a standard network rack using appropriate mounting hardware. This flexibility makes it suitable for various deployment scenarios from small office desktops to data center rack installations.
What security features does this firewall provide?
The TZ570W provides comprehensive security features including intrusion prevention, malware protection, application control, content filtering, spyware protection, URL filtering, denial of service protection, stateful packet filtering, and distributed denial of service mitigation. It also supports secure IPsec VPN connectivity for encrypted communications and includes deep inspection firewall capabilities for analyzing network traffic at the application layer.
What encryption standards are supported?
The appliance supports multiple encryption standards including DES, 3DES, MD5, SHA-1, and AES with 128-bit, 192-bit, and 256-bit key lengths. For wireless security, it supports WPA, WEP, WPA2, and TKIP protocols. This comprehensive encryption support ensures secure communications for VPN connections, wireless networks, and other protected data transmissions.
Is the TZ570W manageable through centralized interfaces?
Yes, the TZ570W is fully manageable and supports centralized administration through both cloud-based and local management interfaces. This enables IT administrators to configure security policies, monitor network activity, and manage multiple appliances from a single console. The manageable design simplifies ongoing maintenance and policy enforcement across distributed network environments.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is 2, giving buyers a clearer picture of expected coverage after purchase.
