2N 03361-001 IP Force 2. 0 Intercom - SIP - PoE+ - IP69 - IK10 - Surface/Flush Mount - Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 2N IP Force 2.0 operates on standard SIP (Session Initiation Protocol) and integrates directly with most VoIP PBX systems and surveillance platforms. The built-in RFID reader supports 13.56 MHz cards and tags for secure, keyless entry. With one call button, it suits single-point access gates, doors, or entrance stations.
Power can be supplied via PoE+ (IEEE 802.3at) or a dedicated 12V DC power supply. The device draws a minimum of 4A at 12V DC when not using PoE. The aluminum enclosure protects internal electronics from harsh conditions, and the IP69 rating allows hot water pressure cleaning without damage. The IK10 rating (with IK08 on certain parts) ensures resistance to mechanical impact.
This section brings together practical product details such as Channel Frequency, Maximum Number of Buttons, Communication Protocol, Network (RJ-45), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
SIP Communication
Full SIP support enables easy integration with IP PBX systems and surveillance networks.
RFID Access Control
13.56 MHz RFID reader for contactless entry using standard credentials.
Key Product Advantages
The 2N IP Force 2.0 delivers exceptional durability, easy network integration, and reliable access control in one compact unit. Its robust construction reduces maintenance costs and ensures continuous operation in harsh environments.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Advantages are also easier to justify when they translate into measurable operational value, such as less downtime, more consistent user experience, easier replacement planning, or better alignment with existing accessories and workflows. That practical value tends to matter more than broad marketing language when teams are standardizing purchases.
Deployment / Use Cases
Typically deployed at building entrances, gated facilities, parking lots, and perimeter access points, the 2N IP Force 2.0 provides clear two-way audio and RFID-based entry. Its high ingress and impact protection make it suitable for factories, warehouses, car washes, and outdoor public spaces.
In surveillance integrations, the intercom can be linked to network video recorders and access control software for centralized monitoring. The PoE+ capability eliminates the need for separate power wiring, making retrofits and new installations faster and more cost-effective.
This section brings together practical product details such as Channel Frequency, Maximum Number of Buttons, Communication Protocol, Network (RJ-45), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Industrial Gate Access
Weatherproof design and vandal resistance make it ideal for truck gates and loading docks.
Perimeter Security
Surface or flush mount on walls, bollards, or gate pillars for secure entry control.
Physical Profile

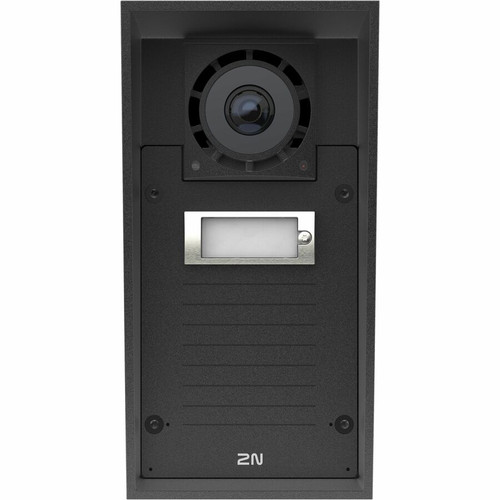

The intercom is crafted from a heavy-duty aluminum alloy, finished for maximum corrosion resistance. It supports both surface mount and flush mount installation. Weighing 4.40 lb (1995.81 g), it feels substantial and secure. The IK10-rated front panel withstands severe impacts, while the IP69 sealing protects electronics from water and dust ingress, including hot water pressure cleaning.
- Weight
- 4.40 lb (1995.81 g)
Highlights
- IP69-rated protection against dust, water jets, and high-pressure washdowns.
- IK10 (front) / IK08 (body) impact resistance for vandal-prone locations.
- PoE+ (IEEE 802.3at) or 12V DC power input for flexible installation.
- 13.56 MHz RFID contactless card reader for keyless entry.
- SIP protocol support integrates with most VoIP and surveillance systems.
- Solid aluminum housing for long-term durability.
- Surface or flush mount options adapt to different site requirements.
- 5-year limited warranty included.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 03361-001 |
| Brand Name | 2N |
| Product Line | IP Force 2.0 |
| Product Name | IP Force 2.0 Intercom System |
| Product Type | Intercom System |
| Technical Information | |
| Channel Frequency | 13.56 MHz |
| Maximum Number of Buttons | 1 |
| Communication Protocol | SIP |
| Impact Protection (IK) Rating | IK10,IK08 |
| Ingress Protection (IP) Rating | IP69 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Minimum Input Current | 4 A |
| Power Source | PoE+,Power Supply |
| Physical Characteristics | |
| Product Material | Aluminum |
| Form Factor | Surface Mount,Flush Mount |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Miscellaneous | |
| Application/Usage | Surveillance System |
| Country of Origin | Czech Republic |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What power options does the 2N IP Force 2.0 support?
The intercom can be powered via PoE+ (IEEE 802.3at) using a single Ethernet cable, or by a 12V DC power supply. When using DC power, the unit requires a minimum of 4A input current.
Can the 2N IP Force 2.0 be integrated with an existing SIP phone system?
Yes, the intercom uses the SIP communication protocol, allowing it to register with most SIP-based PBX systems and VoIP platforms for seamless audio communication.
What is the RFID frequency and what cards are compatible?
The built-in RFID reader operates at 13.56 MHz, supporting contactless credentials such as MIFARE and other 13.56 MHz compliant cards and tags for access control.
How does the IP69 and IK10 rating benefit installation?
IP69 ensures the unit is protected against dust and high-temperature, high-pressure water jets, making it ideal for outdoor or washdown environments. IK10/Ik08 provides resistance to vandalism and physical impact, reducing damage in high-traffic areas.
What mounting options are available for the IP Force 2.0?
The intercom supports both surface mount and flush mount installations, offering flexibility for different wall types and architectural requirements.
Does the unit include any buttons or RFID reader visible on the front?
The unit features a single call button and a built-in 13.56 MHz RFID reader on the front panel, allowing visitors to call and authorized users to present credentials for access.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
