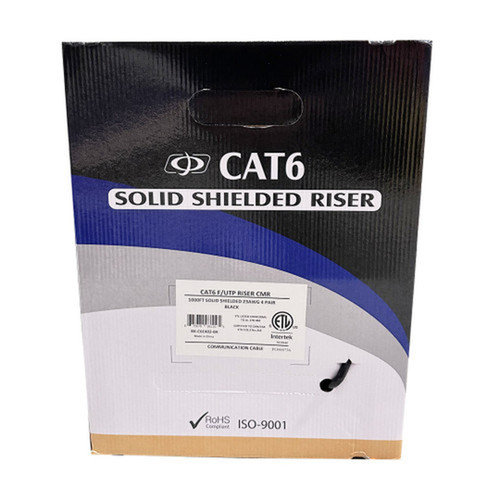

4 Pair CAT6 FUTP Solid 23AWG CMR Riser Rated Bulk Cable Black F/UTP FN-BK-C6E402-BK
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6 jack. It is great for all high bandwidth applications such as high speed networks.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000ft |
| Color | Black/ Blue/ Grey/ White |
| Number of Pairs | 4 Pairs Twisted |
| Wire Gauge | 4 Pairs of 23AWG solid + 23AWG TC Drain Wire |
| Conductor Material | 100% Bare Copper |
| Product Standard Certification | CMR |
| Jacket Material | PVC |
| Jacket Rating | Riser |
| Jacket Diameter | 7.0mm |
| Aluminum Foil | Yes |
| Rip Cord | Yes |
| Cable Shielding | Aluminium Foil |
| Insulation | PE |
| Temperature | -20℃~75℃ |
| Voltage Rating | 300V |
| Performance | |
| Spark Test |
2.5 KV AC |
| Dielectric Strength | 2500 Vdc/2secs |
| Insulation Resistance | >5GΩ.km |
| Mutual Capacitance | 5.6nF/100m |
| Capacitance Unbalance | 330pF/100m |
| Conductor Resistance | < 9.38Ω/100m |
| Resistance Unbalance | 2.5% Max |
| Impedance | 100±15Ω |
| Electrical Characteristics | |
| Frequency (MHz) | 1 | 4 | 10 | 20 |
100 |
200 | 250 |
500 |
550 |
| Insertion Loss (dB/100m) |
2.1 | 3.8 |
6 |
8.5 |
19.9 |
29.1 |
33 |
43 |
45.4 |
| NEXT (dB) | 66 |
65.3 |
59.3 |
54.8 |
44.3 |
39.8 |
38.3 |
39.5 |
38.9 |
| PSNEXT (dB) | 64 |
63.3 |
57.3 |
52.8 |
42.3 |
37.8 |
36.3 |
39.5 |
38.9 |
| ACR-F (dB) | 66 |
58 |
50 |
44 | 30 |
24 |
22 |
28 |
27.2 |
| PSACR-F (dB) | 64 |
55 |
47 |
41 |
27 |
21 |
19 |
25 |
24.2 |
| Return Loss (dB) | 27 |
23 |
25 |
25 |
20.1 |
18 |
17.3 |
20.2 |
19.9 |
| Environmental | ||
|---|---|---|
| RoHS | Yes | |
| Approvals | ||
| c(ETL)us | Yes | |
| NEC Compliance | Article 800 CMR | |
| Flammability Standard Compliance |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] |
|
| TIA/EIA Compliance |
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
|
| ISO/IEC Compliance | ISO/IEC 11801-1 IEC61156-5 | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 33.5 lbs [15.2kg] | |
