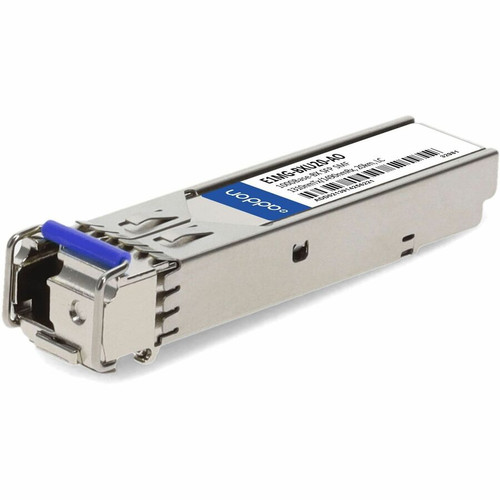

AddOn E1MG-BXU20-AO Brocade Compatible 1000Base-BX SFP Transceiver - Singlemode - 1310nmTx/1490nmRx - 20km - LC - DOM - TAA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on the 1000Base-BX standard, which uses a single fiber strand for bidirectional communication. The 1310nm/1490nm wavelength pairing is specifically engineered for single-mode fiber, minimizing signal loss over extended distances up to 20 kilometers. The module supports full-duplex Gigabit Ethernet, providing up to 1000 Mbps data transfer rates for bandwidth-intensive applications.
Digital Optical Monitoring (DOM) functionality allows network administrators to track optical power, temperature, and voltage directly through supported management interfaces. The hot-swappable form factor enables installation and replacement without powering down the host device, reducing network downtime. With a depth of 2.20 inches (55.88 mm), the module fits standard SFP slots in switches, routers, and media converters.
Key Product Advantages
The E1MG-BXU20-AO combines performance, compatibility, and monitoring capabilities in a single transceiver solution. Its bidirectional design reduces fiber infrastructure requirements by utilizing a single strand for both transmit and receive functions, lowering deployment costs while maintaining high-speed connectivity.
Extended Reach Capability
With 20 km reach over single-mode fiber, this transceiver connects geographically dispersed network segments without signal degradation, ideal for campus networks, metro Ethernet, and data center interconnects.
- 20 km maximum distance
- Single-mode fiber optimization
- Low signal attenuation
Comprehensive Monitoring
DOM support provides visibility into optical performance metrics, enabling proactive network management and troubleshooting without physical inspection.
- Real-time power monitoring
- Temperature and voltage tracking
- SNMP-compatible alerts
Regulatory Compliance
TAA compliance ensures eligibility for government contracts and regulated industries, while MSA standards guarantee interoperability with a wide range of networking equipment.
- TAA compliant
- MSA standard
- Brocade compatible
Deployment / Use Cases
This transceiver is engineered for optical network deployments where reliable, high-speed connectivity over extended distances is required. The 1000Base-BX technology makes it particularly effective in fiber-to-the-building, metro Ethernet, and enterprise backbone applications where fiber resources may be limited.
Common deployment scenarios include connecting network switches between buildings in campus environments, extending network reach in industrial settings, and providing uplinks in data center architectures. The single-mode fiber compatibility ensures stable performance over long runs, while the hot-swappable design supports maintenance and upgrades without network interruption.
Enterprise Network Expansion
Extend Gigabit Ethernet connectivity across multiple buildings or floors using existing single-mode fiber infrastructure, maintaining high bandwidth for voice, video, and data applications.
Data Center Interconnect
Connect switches and routers within data center environments where fiber density is optimized, utilizing bidirectional communication to maximize fiber utilization.
Physical Profile
The transceiver features a compact SFP form factor with a depth of 2.20 inches (55.88 mm), designed to fit standard SFP slots in networking equipment. The hot-swappable design allows for easy installation and replacement while the host device remains operational. The LC connector provides a secure optical interface with low insertion loss, ensuring reliable fiber connections in various mounting orientations.
- Depth
- 2.20" (55.88 mm)
Highlights
- 1000Base-BX SFP transceiver for Gigabit Ethernet over optical fiber
- Bidirectional 1310nm transmit / 1490nm receive wavelengths
- 20 km reach over single-mode fiber
- LC connector for reliable optical interface
- DOM (Digital Optical Monitoring) support
- Hot-swappable MSA-compliant form factor
- Brocade compatible with broad interoperability
- TAA compliant for government and regulated procurement
- Lifetime limited warranty
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | E1MG-BXU20-AO |
| Brand Name | AddOn |
| Product Name | Brocade SFP (miniGBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Depth | 2.20" (55.88 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer rate of this SFP transceiver?
This transceiver supports Gigabit Ethernet with a maximum data transfer rate of 1000 Mbps (1 Gbps). It utilizes 1000Base-BX technology, which provides full-duplex communication over a single fiber strand, delivering high-speed connectivity for data networking applications.
What type of fiber cable is compatible with this module?
The module is designed for single-mode fiber optic cable. Single-mode fiber supports longer distance transmission with minimal signal loss, making this transceiver suitable for reaches up to 20 kilometers. It is not compatible with multimode fiber.
What does the 1310nm/1490nm wavelength specification mean?
This bidirectional transceiver uses 1310nm wavelength for transmitting data and 1490nm wavelength for receiving data on the same fiber strand. This configuration enables communication in both directions over a single fiber, reducing infrastructure requirements while maintaining Gigabit Ethernet performance.
What is DOM monitoring and how does it work?
DOM stands for Digital Optical Monitoring, a feature that allows the transceiver to report real-time performance parameters such as optical power, temperature, and voltage. This information is accessible through supported network management systems, enabling administrators to monitor link health and troubleshoot issues without physical inspection.
Is this transceiver hot-swappable?
Yes, this SFP transceiver features a hot-swappable form factor. This means you can install or remove the module while the host networking device (such as a switch or router) remains powered on and operational, minimizing network downtime during maintenance or upgrades.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this transceiver meets sourcing requirements for U.S. government contracts and other regulated procurement. The product is manufactured in the United States and adheres to specific trade agreement standards, making it eligible for use in government and institutional networking deployments.
