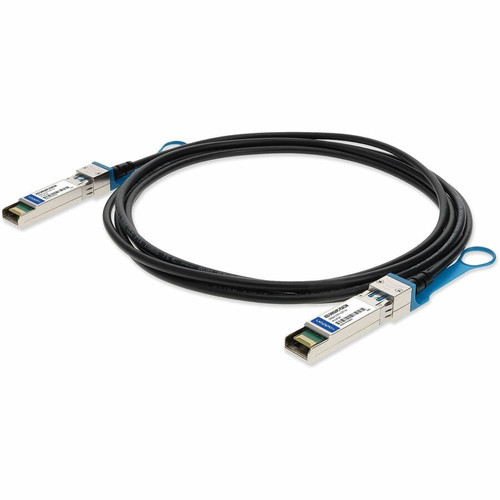

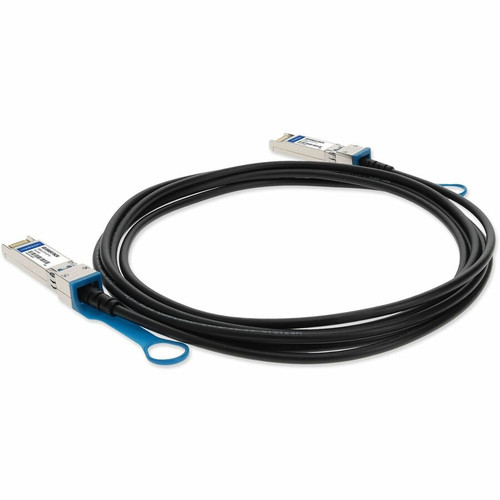

AddOn ADD-SHPASHPC-PDAC5M 10GBase-CU SFP+ to SFP+ Direct Attach Cable - Passive Twinax - 5m - 16. 4 ft - TAA Compliant - HP JG081C Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This direct attach cable operates as a passive twinaxial cable, meaning it does not require external power or signal conditioning electronics. The 10 Gbit/s data transfer rate supports 10 Gigabit Ethernet connections, while the SFP+ connectors on both ends ensure compatibility with standard SFP+ ports found in switches, routers, and network interface cards.
The cable's 24 AWG copper conductors provide efficient electrical performance for distances up to 5 meters, which is typical for direct attach copper cables in data center and server room deployments. The passive design simplifies installation and reduces potential points of failure compared to active optical cables or transceivers.
Key Product Advantages
This AddOn direct attach cable offers several advantages for network administrators seeking reliable 10GbE connectivity solutions. The passive twinax design eliminates the need for separate transceivers at each connection point, reducing both cost and complexity in high-density network environments.
Cost-Effective 10GbE Solution
Provides 10 Gigabit Ethernet connectivity at a lower total cost than fiber optic alternatives with separate transceivers, while maintaining performance for short-distance connections.
- No separate transceivers required
- Lower total cost of ownership
- Maintains 10 Gbit/s performance
Simplified Deployment
The plug-and-play design with SFP+ connectors on both ends allows for quick installation without configuration or driver installation, reducing deployment time and technical overhead.
- Plug-and-play installation
- No configuration required
- Reduces deployment complexity
Compliance Ready
TAA compliance and United States manufacturing make this cable suitable for government contracts and enterprises with specific procurement requirements for trade agreement adherence.
- TAA compliant
- US manufactured
- Government procurement ready
Deployment / Use Cases
The ADD-SHPASHPC-PDAC5M direct attach cable is ideal for connecting switches to servers, storage arrays, or other networking equipment within rack enclosures or adjacent cabinets. The 5-meter length provides flexibility for typical data center layouts where equipment may be separated by short distances.
Common deployment scenarios include connecting top-of-rack switches to server interfaces in hyper-converged infrastructure, linking aggregation switches in small to medium business environments, and expanding port capacity on compatible HP switch series. The cable's compatibility with HP JG081C and numerous HP switch models makes it particularly valuable for maintaining or expanding existing HP networking infrastructure without compatibility concerns.
Data Center Interconnects
Connect servers to top-of-rack switches within the same rack or adjacent racks, providing high-speed 10GbE connectivity for virtualized environments and storage networks.
- Server-to-switch connections
- Storage network links
- Virtualization host connectivity
HP Network Expansion
Add connectivity between compatible HP switches or expand port capacity on existing HP switch installations, maintaining consistency with OEM-compatible cabling solutions.
- Switch-to-switch linking
- Port capacity expansion
- HP environment compatibility
Physical Profile
This direct attach cable features a compact and flexible design with SFP+ connectors that support hot-pluggable installation in compatible ports. The 5-meter length (16.4 feet) provides sufficient reach for most rack-to-rack or within-rack connections while maintaining signal integrity through its copper twinaxial construction. The cable's approximate weight of 11.20 ounces ensures minimal strain on switch ports and easy handling during installation and cable management.
- Weight
- 11.20 oz (317.51 g)
- Length
- 16.4 ft (5 m)
Highlights
- 10GBase-CU SFP+ to SFP+ direct attach cable with 10 Gbit/s data transfer
- Passive twinaxial design eliminates need for separate transceivers
- 5-meter (16.4-foot) length ideal for rack-to-rack or within-rack connections
- Compatible with HP JG081C and numerous HP switch models
- TAA compliant and manufactured in the United States
- Copper construction with 24 AWG wiring for reliable signal integrity
- SFP+ connectors on both ends for standard compatibility
- 1 Year Lifetime limited warranty for added protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-SHPASHPC-PDAC5M |
| Brand Name | AddOn |
| Product Name | Twinaxial Network Cable |
| Packaged Quantity | 1.0 |
| Package Type | OEM |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Physical Characteristics | |
| Product Material | Copper |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Compatibility | HP Switches: 2920-24G (J9726A) 2920-24G-PoE+ (J9727A) 2920-48G (J9728A) 2920-48G-PoE+ (J9729A) 5500-24G (JD373A) 5500-24G (JD377A) 5500-24G-PoE (JD378A) 5500-24G-PoE+ (JG241A) 5500-24G-SFP (JD379A) 5500-24G-SFP (JD374A) 5500-48G (JD375A) 5500-48G-PoE (JD376A) 5500-48G-PoE+ (JG240A) 5900AF-48XG-4QSFP+ (JC772A) A5800-24G-PoE (JC099A) A5800-24G-SFP (JC103A) A5800-48G (JC105A) A5800-48G (JC101A) A5800-48G-PoE (JC104A) A5800AF-48G (JG225A) CN1000Q BS668A 2910al-24G (J9145A) 2910al-24G-PoE+ (J9146A) 2910al-48G (J9147A) 2910al-48G-PoE+ (J9148A) 3500yl-24G-PoE+ Switch (J9310A) 3500yl-24G-PWR (J8692A) 3500yl-48G-PoE+ 3500yl-48G-PWR (J8693A) 3800-24G-2SFP+ (J9575A) 3800-24G-PoE+-2SFP+ (J9573A) 3800-24SFP-2SFP+ (J9584A) 3800-48G-4SFP+ (J9576A) 3800-48G-PoE+-4SFP+ (J9574A) 516733-B21 6200yl-24g-Mgbic (J8992A) 6600-24G (J9263A) 6600-24G-4XG (J9264A) 6600-24XG (J9265A) 6600-48G (J9451A) 498358-B21 629142-B21 |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year Lifetime |
User Manual
FAQ
What type of cable is the ADD-SHPASHPC-PDAC5M?
The ADD-SHPASHPC-PDAC5M is a 10GBase-CU SFP+ to SFP+ direct attach cable using passive twinaxial copper construction. It provides 10 Gigabit Ethernet connectivity between devices with SFP+ ports without requiring separate optical transceivers, making it a cost-effective solution for short-distance connections up to 5 meters.
What is the maximum data transfer rate of this cable?
This direct attach cable supports data transfer rates of 10 Gbit/s (10 Gigabits per second), which is sufficient for 10 Gigabit Ethernet applications. The passive twinax design maintains this performance level across the entire 5-meter cable length without signal degradation typical of longer copper runs.
Which HP switches are compatible with this direct attach cable?
The cable is compatible with numerous HP switch models including the JG081C reference and series such as 2920, 3500yl, 3800, 5500, 5900AF, A5800, and 6600 switches. The extensive compatibility list covers both PoE and non-PoE variants across HP's networking portfolio, making it suitable for expanding or maintaining existing HP network infrastructure.
What does TAA compliant mean for this product?
TAA compliance indicates that this cable meets the requirements of the Trade Agreements Act, which governs procurement for U.S. government agencies and certain enterprises. The product is manufactured in the United States and uses materials that comply with trade agreement specifications, making it suitable for contracts requiring TAA-compliant networking components.
How does a passive direct attach cable differ from an active one?
A passive direct attach cable like the ADD-SHPASHPC-PDAC5M uses copper conductors without signal conditioning electronics, drawing power minimally from the SFP+ port. This contrasts with active cables that include electronics to boost or reshape signals, allowing longer distances but at higher cost. Passive cables are ideal for shorter runs (typically up to 7 meters) where signal integrity remains strong without amplification.
What warranty coverage does this cable include?
The AddOn ADD-SHPASHPC-PDAC5M direct attach cable comes with a 1 Year Lifetime limited warranty. This warranty provides protection against manufacturing defects and ensures reliable performance for the specified period, offering peace of mind for network deployments where cable reliability directly impacts network availability.
