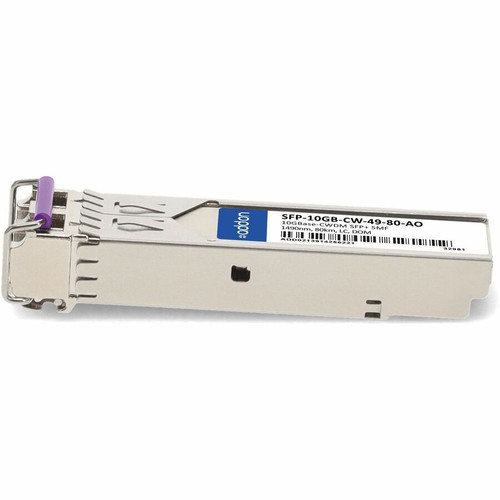

AddOn SFP-10GB-CW-49-80-AO SFP+ Transceiver - 10GBase-CWDM - 1490nm - 80km - LC - Single-Mode Fiber - DOM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver supports a maximum data transfer rate of 10 Gbit/s using 10 Gigabit Ethernet technology. It is optimized for single-mode fiber, which minimizes signal loss over long-haul connections. The 10GBase-CWDM implementation allows multiple wavelengths to share the same fiber, increasing bandwidth capacity without additional cabling.
The module features a single LC port for duplex fiber connections, with DOM enabling monitoring of parameters like temperature, voltage, and optical power. Physical dimensions are compact at 1.20" height, 2.75" width, and 4.75" depth, with a weight of approximately 6.40 ounces.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver combines long-distance performance with advanced monitoring capabilities. The 80-kilometer reach makes it suitable for metropolitan area networks and data center interconnects, while DOM support allows proactive network maintenance.
Extended Reach
Supports transmissions up to 80 kilometers on single-mode fiber, ideal for long-haul applications.
- 1490nm wavelength
- Low signal attenuation
Monitoring Ready
DOM functionality provides real-time diagnostics for optical power, temperature, and bias current.
- Network visibility
- Proactive maintenance
Standards Compliance
MSA compliance ensures broad compatibility with switches, routers, and other networking hardware.
- Interoperability
- Reliable performance
Deployment / Use Cases
This transceiver is designed for optical network infrastructure where high bandwidth and distance are required. It is commonly deployed in enterprise networks, service provider backbones, and data center interconnects.
Typical applications include connecting network switches over single-mode fiber in campus environments, linking data centers across metropolitan areas, and supporting high-speed data transfers in storage area networks. The CWDM technology allows efficient use of fiber resources in dense wavelength division multiplexing setups.
Data Center Interconnect
Connect geographically separated data centers with high-speed 10GbE links over single-mode fiber.
Enterprise Backbone
Extend network segments across large campuses or between buildings with reliable 80km reach.
Physical Profile
The transceiver has a compact form factor measuring 1.20" in height, 2.75" in width, and 4.75" in depth. Weighing approximately 6.40 ounces, it is designed for standard SFP+ slots in networking equipment. The small footprint allows high-density installations in switches and routers.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.20" (30.48 mm), 2.75" (69.85 mm), 4.75" (120.65 mm), 6.40 oz (181.44 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.75" (69.85 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 6.40 oz (181.44 g)
Highlights
- 10GBase-CWDM SFP+ transceiver for 10 Gigabit Ethernet networks
- 1490nm wavelength operation on single-mode fiber
- Maximum reach of 80 kilometers (49.71 miles)
- LC duplex connector for secure optical connections
- DOM (Digital Optical Monitoring) for real-time diagnostics
- MSA compliant for broad equipment compatibility
- Data transfer rate up to 10 Gbit/s
- Compact dimensions: 1.20" H x 2.75" W x 4.75" D
- Lifetime warranty from AddOn
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | SFP-10GB-CW-49-80-AO |
| Brand Name | AddOn |
| Product Model | SFP-10GB-CW-49-80-AO |
| Product Name | SFP-10GB-CW-49-80-AO SFP+ Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBase-CWDM Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-CWDM |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum distance this SFP+ transceiver supports?
This AddOn transceiver supports a maximum distance of 80 kilometers (approximately 49.71 miles) over single-mode fiber. This extended reach makes it suitable for long-haul optical network connections in metropolitan area networks and data center interconnects.
What type of connector does this transceiver use?
The transceiver uses an LC duplex connector, which is standard for SFP+ optical modules. It features one LC port for 10GBase-CWDM network connections, providing a secure and reliable interface for single-mode fiber cabling.
Does this transceiver support DOM monitoring?
Yes, this transceiver includes DOM (Digital Optical Monitoring) functionality. DOM allows real-time monitoring of key parameters such as optical power, temperature, and voltage, enabling network administrators to perform proactive maintenance and troubleshoot performance issues.
What is the wavelength of this CWDM SFP+ module?
This module operates at a 1490nm wavelength, which is part of the coarse wavelength division multiplexing (CWDM) spectrum. This wavelength is optimized for long-distance transmission over single-mode fiber with minimal signal attenuation.
Is this transceiver MSA compliant?
Yes, the transceiver is MSA (Multi-Source Agreement) compliant. This ensures it meets industry standards for form factor, electrical interface, and optical characteristics, guaranteeing interoperability with a wide range of networking equipment from different manufacturers.
What applications is this transceiver designed for?
This transceiver is designed for optical network and data networking applications, including enterprise backbones, data center interconnects, and service provider networks. It supports 10GBase-CWDM technology for efficient bandwidth utilization over single-mode fiber.
