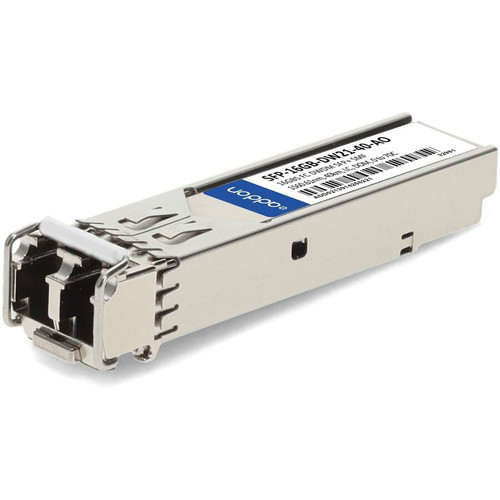

AddOn SFP-16GB-DW21-40-AO 16GBase-DWDM FC SFP+ Transceiver - C-Band 100GHz - 1560. 61nm - 40km - LC - DOM - Single-Mode Fiber - MSA/TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver delivers 16 Gbps data rates using DWDM technology, which multiplexes multiple optical carrier signals onto a single fiber by using different wavelengths. It supports single-mode fiber media, optimized for long-distance transmissions up to 40 kilometers with minimal signal loss, making it ideal for metropolitan area networks (MANs) and data center interconnects.
The module features an LC duplex connector for secure fiber optic connections and includes DOM (Digital Optical Monitoring) support, allowing real-time monitoring of optical parameters such as transmit power, receive power, temperature, and voltage for proactive network management.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This transceiver combines advanced optical engineering with practical deployment features to enhance network performance and reliability. Its DWDM capability maximizes fiber utilization by supporting multiple channels, while the 40km reach extends connectivity across expansive infrastructures without intermediate signal regeneration.
Long-Distance Performance
With a 40km reach over single-mode fiber, this module supports extended network links, reducing the need for additional hardware and lowering overall deployment costs.
- Optimized for low signal loss
- Ideal for MAN and data center links
Compliance and Reliability
MSA compliance ensures interoperability with a wide range of networking equipment, while TAA compliance meets stringent procurement requirements for government and institutional use.
- Broad compatibility
- Suitable for regulated environments
Deployment / Use Cases
The AddOn 16GBase-DWDM SFP+ transceiver is tailored for high-capacity, long-distance networking scenarios where fiber efficiency and signal integrity are critical. Its DWDM technology makes it suitable for wavelength-division multiplexing applications that require scalable bandwidth over existing fiber infrastructure.
Common use cases include data center interconnects (DCI) linking facilities across cities, metropolitan area networks (MANs) for service provider backbones, and enterprise networks requiring reliable, high-speed optical links. The DOM functionality supports network monitoring and troubleshooting, enhancing operational visibility in complex environments.
Data Center Interconnects
Connect geographically dispersed data centers with high-speed, low-latency links over single-mode fiber, leveraging DWDM for efficient bandwidth utilization.
Service Provider Networks
Deploy in carrier networks for backbone connectivity, supporting multiple services over a single fiber strand to reduce infrastructure costs.
Physical Profile
The transceiver has a compact SFP+ form factor with a depth of 2.20 inches (55.88 mm), designed for hot-pluggable installation in compatible switches, routers, and network interface cards. Its standard dimensions ensure easy integration into existing network equipment without requiring additional space or modifications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.20" (55.88 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Depth
- 2.20" (55.88 mm)
Highlights
- 16GBase-DWDM Fibre Channel SFP+ transceiver for high-speed data networking
- Operates at 1560.61nm wavelength in the C-Band with 100GHz spacing
- Supports single-mode fiber with a reach of up to 40 kilometers
- LC duplex connector for reliable optical connections
- DOM (Digital Optical Monitoring) for real-time performance tracking
- MSA compliant for broad interoperability with networking equipment
- TAA compliant, suitable for government and institutional procurement
- Lifetime warranty for long-term reliability and support
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | SFP-16GB-DW21-40-AO |
| Brand Name | AddOn |
| Product Name | SFP+ Module |
| Product Type | SFP+ |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 16GBase-DWDM Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 16 Gigabit Ethernet |
| Network Technology | 16GBase-DWDM |
| Physical Characteristics | |
| Depth | 2.20" (55.88 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the speed and technology of this SFP+ transceiver?
This transceiver supports 16 Gigabit Ethernet using 16GBase-DWDM (Dense Wavelength Division Multiplexing) technology. It operates at 16 Gbps, enabling high-speed data transmission over optical fiber with DWDM for efficient bandwidth utilization across multiple wavelengths.
What distance can this transceiver reach over single-mode fiber?
The transceiver has a maximum reach of 40 kilometers over single-mode fiber. This makes it suitable for long-haul applications such as data center interconnects and metropolitan area networks, where extended distances are required without signal degradation.
Does this transceiver support DOM monitoring?
Yes, it includes DOM (Digital Optical Monitoring) support. This allows real-time monitoring of key optical parameters like transmit power, receive power, temperature, and voltage, facilitating proactive network management and troubleshooting for optimal performance.
Is this transceiver MSA and TAA compliant?
Yes, it is both MSA (Multi-Source Agreement) compliant and TAA (Trade Agreements Act) compliant. MSA compliance ensures interoperability with a wide range of networking equipment, while TAA compliance meets procurement requirements for government and institutional use, making it suitable for regulated environments.
What type of connector does this transceiver use?
It uses an LC duplex connector. This connector type is standard for fiber optic connections, providing a secure and reliable interface for single-mode fiber cables, which is essential for maintaining signal integrity in high-speed optical networks.
What is the warranty for this AddOn transceiver?
This transceiver comes with a lifetime warranty. This coverage reflects the manufacturer's confidence in its durability and performance, offering long-term support and reliability for network deployments where continuous operation is critical.
