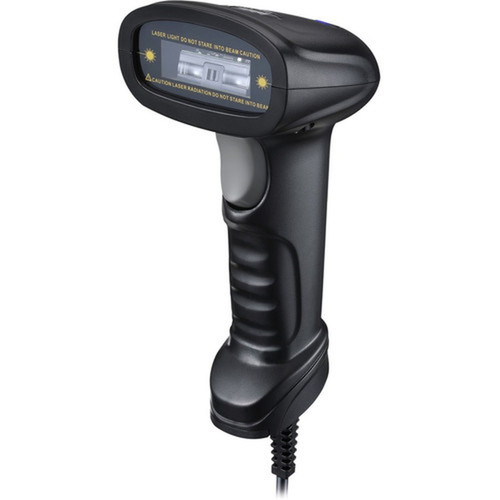

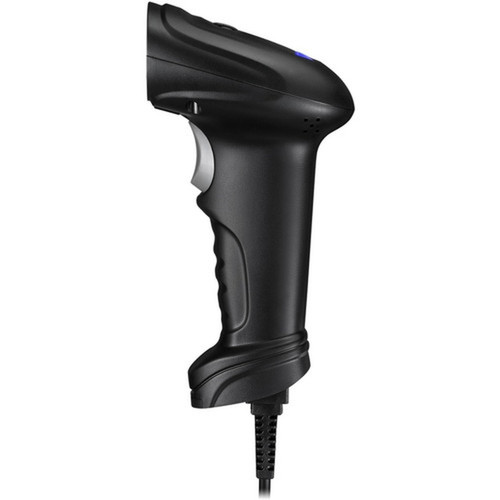

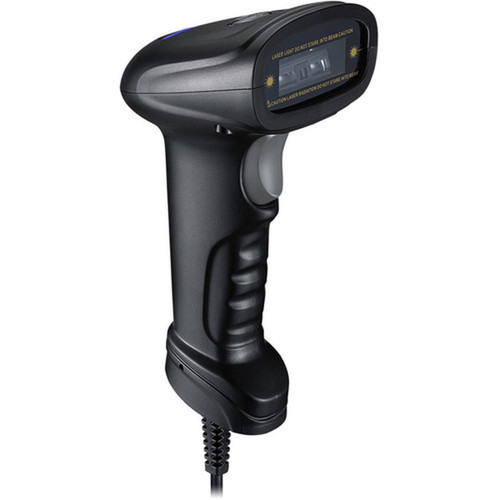

Adesso NUSCAN1600U 1D Handheld CCD Barcode Scanner - USB Cable - 300 scan/s - 16" Scan Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the NuScan 1600U is a CCD image sensor that captures barcode data with precision, supporting a comprehensive range of 1D symbologies including EAN, UPC, Code 128, Code 39, and Industrial 2 of 5. The scanner achieves a rapid 300 scans per second, minimizing processing delays in high-volume scanning operations.
Designed for challenging lighting conditions, the unit operates effectively in ambient light up to 70000 lux and requires a minimum print contrast of 35%, ensuring accurate reads on faded or low-contrast labels. The handheld form factor provides ergonomic comfort during extended use, while the USB interface delivers stable data transmission without wireless interference.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NuScan 1600U combines durability with advanced scanning technology to meet the rigorous demands of commercial barcode applications. Its drop-protection design reduces damage risk from accidental falls, extending product lifespan in active environments like warehouses and retail floors.
High-Speed Scanning
With a 300 scan/s rate, this scanner processes barcodes quickly, supporting efficient inventory management, point-of-sale transactions, and asset tracking without bottlenecks.
- Reduces queue times at checkout
- Accelerates warehouse picking cycles
- Minimizes data entry errors
Versatile Connectivity
USB cable connectivity ensures reliable, interference-free data transfer to desktops, laptops, and Android tablets, simplifying integration into existing IT infrastructure.
- Plug-and-play with no drivers needed
- Compatible with multiple operating systems
- Eliminates wireless pairing issues
Deployment / Use Cases
The Adesso NuScan 1600U is tailored for environments where fast, accurate barcode reading is critical to operational efficiency. Its robust construction and long-range scanning make it suitable for both front-counter and backroom applications across various industries.
In retail settings, the scanner speeds up checkout processes and price verification. Healthcare facilities use it for patient ID wristbands and medication tracking, while libraries benefit from efficient book circulation management. Warehouse operations leverage its high scan rate for inventory control and shipping verification, reducing manual errors and improving throughput.
Retail Point of Sale
Ideal for cashier stations, price checks, and inventory counts, with USB connectivity integrating seamlessly into POS systems.
Warehouse Logistics
Supports high-volume scanning of pallet labels and shipment barcodes, with drop protection ensuring durability in rugged environments.
Physical Profile
The NuScan 1600U features a handheld form factor weighing approximately 2 pounds, offering a balanced grip for all-day use. Its design prioritizes operator comfort and durability, with materials chosen to withstand frequent handling in commercial settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2 lb (907.18 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 2 lb (907.18 g)
What's in the Box
The package includes everything needed for immediate setup and operation.
Package contents include NuScan 1600U 1D Handheld CCD Barcode Scanner (USB) Quick Start Guide, NuScan 1600U 1D Handheld CCD Barcode Scanner (USB). These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 300 scans per second for high-speed barcode processing
- 16-inch scanning distance allows non-contact operation
- USB cable connectivity for reliable plug-and-play use
- CCD image sensor supports wide 1D symbology range
- Drop-protection design enhances durability in active environments
- Operates in ambient light up to 70000 lux
- Compatible with PC, Mac, and Android platforms
- Weighs 2 pounds for comfortable handheld use
- Ideal for healthcare, warehouse, library, and retail applications
- Includes quick start guide for easy setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | NUSCAN1600U |
| Brand Name | Adesso |
| Product Model | NuScan 1600U |
| Product Name | NuScan 1600U 1D Handheld CCD Barcode Scanner (USB) |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | EAN-8 EAN-13 EAN-13 add-on EAN-13 5 add-on issn ISBN UPC-A UPC-E Code 11 Code 39 Code 93 Code 128 Codabar Industrial 2 of 5 interleaved 2 of 5 Matrix 2 of 5 Code 39 Full ASCII Standard 2 of 5 |
| Image Sensor Type | CCD |
| Scan Rate | 300 scan/s |
| Scanner Range | Long Range |
| Scanning Distance | 16" (406.40 mm) |
| Maximum Ambient Light | 70000 lux |
| Drop Specification | With it's dropprotection design, the NuScan 1600U less likely to become damaged due to accidental drops. |
| Minimum Print Contrast | 35% |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | NuScan 1600U 1D Handheld CCD Barcode Scanner (USB) Quick Start Guide |
| Application/Usage | Healthcare,Warehouse,Library,Retail |
| Platform Supported | PC,Mac,Android |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What types of barcodes can the NuScan 1600U read?
The NuScan 1600U reads 1D barcodes, supporting a comprehensive range of symbologies including EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2 of 5, Interleaved 2 of 5, and Matrix 2 of 5. This makes it suitable for retail, logistics, and library applications where diverse barcode formats are common.
How fast is the scanning speed of this barcode scanner?
The scanner operates at 300 scans per second, enabling rapid barcode processing that reduces wait times in high-volume environments like checkout counters or warehouse receiving areas. This high speed supports efficient inventory management and point-of-sale transactions.
What is the maximum scanning distance for the NuScan 1600U?
The NuScan 1600U has a scanning distance of 16 inches (406.40 mm), allowing operators to scan barcodes without direct contact with items. This long-range capability is useful for scanning large boxes, pallet labels, or items on high shelves, improving workflow efficiency.
Which operating systems are compatible with this barcode scanner?
The scanner is compatible with PC, Mac, and Android platforms, offering broad integration with desktops, laptops, and tablets. USB connectivity provides plug-and-play functionality without requiring additional drivers, simplifying setup across different operating environments.
Is the NuScan 1600U durable enough for warehouse use?
Yes, the NuScan 1600U features a drop-protection design that reduces the likelihood of damage from accidental drops, making it suitable for active environments like warehouses, retail floors, and healthcare facilities. Its rugged construction ensures reliable performance despite frequent handling.
What is included in the package with the barcode scanner?
The package includes the NuScan 1600U 1D Handheld CCD Barcode Scanner with USB connectivity and a quick start guide. This provides all necessary components for immediate setup and operation in commercial or industrial settings.
