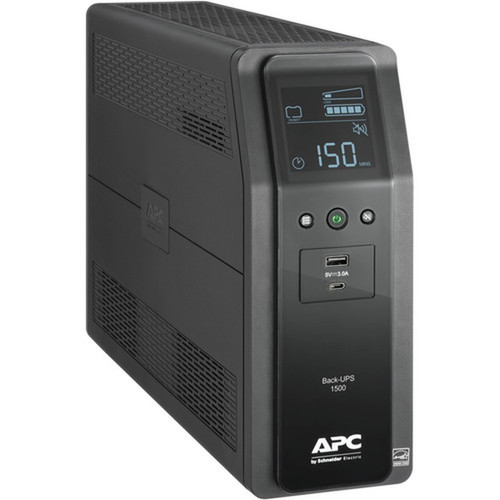

APC by Schneider Electric BN1500M2-CA APC Back-UPS Pro 1500VA 900W Line-Interactive UPS - Tower with AVR - LCD - 10 NEMA Outlets - 5 Battery+Surge - 5
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Back-UPS Pro 1500VA line-interactive UPS delivers reliable battery backup and surge protection for business and home office environments. With 1.5 kVA/900W capacity, this tower-form UPS supports multiple devices including computers, networking equipment, storage devices, and gaming consoles during power outages and voltage fluctuations.
Automatic Voltage Regulation (AVR) corrects minor voltage variations without switching to battery, extending runtime and protecting connected equipment. The multifunction LCD provides real-time status updates on power conditions, battery health, and system parameters, while 10 NEMA outlets (5 battery+surge, 5 surge-only) offer flexible device connectivity. Two USB charging ports add convenience for mobile devices.
Engineered for 120V AC input and output, this Energy Star compliant unit includes RJ-45 and coaxial dataline protection for networking equipment. The maintenance-free sealed lead-acid battery provides 3.1 minutes of runtime at full 900W load and 11.4 minutes at half load, with a 16-hour recharge cycle. The tower design fits conveniently under desks or in equipment areas while delivering substantial power capacity for critical low-power devices.
Technical Overview
The APC Back-UPS Pro 1500VA employs a line-interactive topology with stepped approximated sine wave output, ensuring compatibility with active PFC power supplies and sensitive electronics. Its 10 ms transfer time provides a seamless transition to battery power during outages, minimizing disruption to connected devices. The unit features Automatic Voltage Regulation (AVR) to correct minor voltage variations without draining the battery, extending runtime and protecting equipment from brownouts and overvoltages.
Power management is enhanced with EMI/RFI noise filtering to reduce electrical interference and a surge energy rating of 1080 joules for robust protection against power spikes. The input voltage range of 88-139 V AC accommodates fluctuating power conditions, while the output maintains a stable 120 V AC at 60 Hz. This design supports a load capacity of 1.50 kVA (900W), making it suitable for powering multiple devices such as computers, networking gear, and storage systems during outages.
Battery System
A maintenance-free sealed lead-acid battery provides reliable backup power, with hot-swappable and user-replaceable features to minimize downtime during battery replacement. The battery is leak-proof and designed for long-term use in various environments.
- Single battery configuration
- Typical recharge time: 16 hours
- Replaceable without specialized tools
Monitoring & Alerts

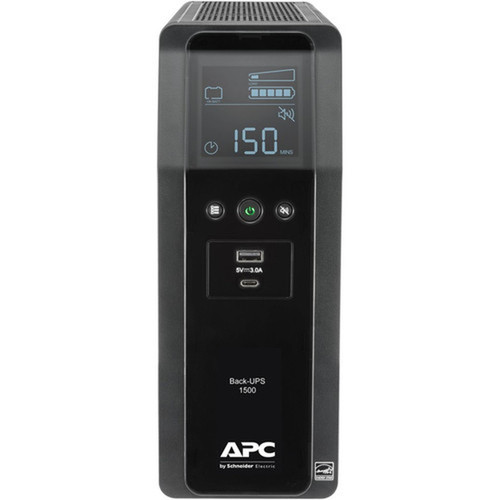

An LCD graphics display offers real-time status updates on operating modes, system parameters, and alarm conditions, including on-battery, low battery, and overload warnings. This interface enables proactive management and quick troubleshooting.
- USB HID compliant port for connectivity
- Visual and audible alarm indicators
- Detailed system parameter monitoring
Key Product Advantages
This UPS combines substantial power capacity with intelligent features for comprehensive device protection. The AVR technology maintains stable output voltage during brownouts and overvoltages, while the LCD interface delivers actionable information about power conditions and battery status.
Comprehensive Connectivity

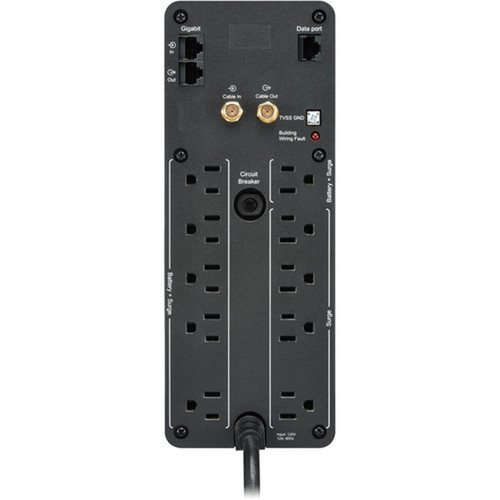

Ten NEMA 5-15R outlets provide ample connectivity for multiple devices, with five offering battery backup plus surge protection and five providing surge protection only for non-critical equipment.
- RJ-45 and coaxial dataline protection
- Two USB charging ports (HID compliant)
- Standard NEMA 5-15P plug
Intelligent Monitoring
The LCD graphics display shows operating modes, system parameters, and alarm conditions including on-battery, low battery, and overload warnings for proactive management.
- Real-time status updates
- Visual alarm indicators
- System parameter monitoring
Deployment / Use Cases
The Back-UPS Pro 1500VA is engineered for environments requiring reliable power protection for sensitive electronics. Its tower form factor makes it suitable for under-desk placement in offices, home offices, and small business settings where rack mounting isn't required.
Typical deployments include protecting desktop computers with monitors, networking equipment like routers and modems, network-attached storage devices, gaming consoles, and other critical low-power devices. The 3.1-minute runtime at full load provides sufficient time for graceful shutdowns during extended outages, while the 11.4-minute runtime at half load supports longer operation for essential equipment.
Business Office Protection
Safeguard desktop workstations, monitors, and networking equipment against data loss and hardware damage from power disturbances.
Home Office & Entertainment
Protect gaming consoles, home theater components, and office equipment while providing USB charging for mobile devices.
Physical Profile
The tower design measures 10.24 inches high by 3.94 inches wide by 14.49 inches deep, with a weight of 25.13 pounds. This compact footprint fits conveniently under desks or in equipment areas while providing substantial power capacity. The unit operates at sound levels up to 45 dB(A) and functions in environments with 0-95% humidity at elevations up to 9,842 feet.
- Width
- 3.94" (100 mm)
- Depth
- 14.49" (368 mm)
- Height
- 10.24" (260 mm)
- Weight
- 45 dB(A)
What's in the Box
The package includes the Back-UPS Pro 1.5KVA Tower UPS unit, coaxial cable for dataline protection, USB cable for connectivity, and user manual for setup and operation guidance.
Highlights
- 1500VA/900W line-interactive UPS with AVR for voltage correction
- 10 NEMA outlets: 5 battery+surge, 5 surge-only for flexible device protection
- Multifunction LCD display shows real-time status and system parameters
- 3.1-minute runtime at full load, 11.4 minutes at half load
- 16-hour battery recharge time with hot-swappable replaceable battery
- Two USB charging ports for mobile device convenience
- RJ-45 and coaxial dataline protection for networking equipment
- Energy Star compliant with 3-year limited warranty
- Tower form factor: 10.24"H x 3.94"W x 14.49"D, 25.13 lb
- EMI/RFI noise filtering and 1080-joule surge protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BN1500M2-CA |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS Pro |
| Product Name | Back-UPS Pro 1.5KVA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection | RJ-45,Coax |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | Computer,Electronic,Router,Modem,Storage Device,Gaming Console,Home,Business,Network,Equipment,Critical Low-power Device |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1080 J |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | LCD Graphics Display: Modes of operation System Parameters Alarms |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 11.40 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 16 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Physical Characteristics | |
| Height | 10.24" (260 mm) |
| Width | 3.94" (100 mm) |
| Depth | 14.49" (368 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 25.13 lb (11400 g) |
| Miscellaneous | |
| Package Contents | Back-UPS Pro 1.5KVA Tower UPS Coaxial Cable USB Cable User Manual |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This UPS has a load capacity of 1.50 kVA (1500VA) and 900W, providing sufficient power to support multiple devices like computers, networking equipment, and storage systems during outages or voltage fluctuations.
What runtime can I expect from this UPS?
At full load (900W), the UPS provides approximately 3.1 minutes of runtime, while at half load (450W), it offers about 11.4 minutes. This allows time for graceful shutdowns or continued operation of essential devices during power interruptions.
How many outlets does this UPS have?
It includes 10 NEMA 5-15R outlets: 5 provide battery backup plus surge protection, and 5 offer surge protection only. This configuration supports flexible connectivity for critical and non-critical equipment.
What voltage specifications does this UPS support?
The UPS is designed for 120V AC input and output, with an input voltage range of 88-139 V AC. It maintains stable output at 120 V AC and 60 Hz, suitable for standard North American power systems.
Is this UPS designed for rack or tower deployment?
This unit features a tower form factor, making it ideal for under-desk placement in offices, home offices, or small business settings where rack mounting is not required.
What management and connectivity options are included?
It includes an LCD display for real-time monitoring, USB HID compliant port for connectivity, RJ-45 and coaxial dataline protection, and two USB charging ports for mobile devices, enhancing overall management and convenience.
