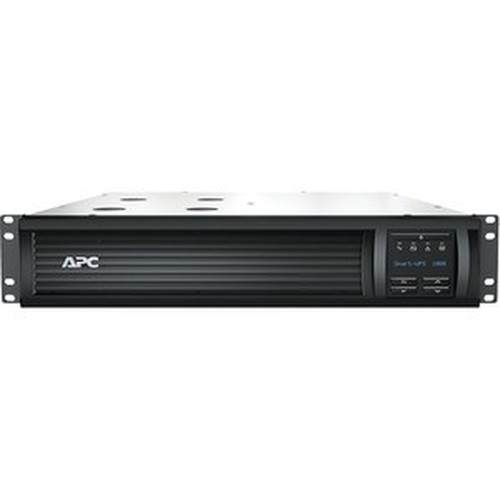

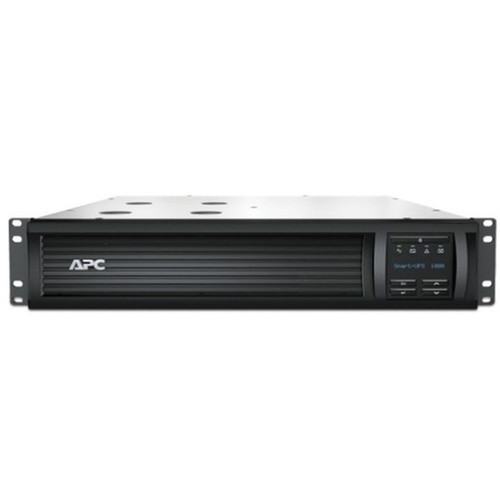

APC by Schneider Electric SMT1000RM2UC APC Smart-UPS 1000VA/700W Line Interactive Rackmount UPS - 2U - 120V - 6 NEMA 5-15R Outlets - AVR - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SMT1000RM2UC delivers reliable line-interactive power protection for critical network infrastructure and business systems. This 1000VA/700W UPS combines automatic voltage regulation with pure sine wave output to maintain clean, stable power to connected equipment during brownouts, surges, and brief outages.
Designed for rackmount deployment in server rooms, network closets, and data centers, the 2U form factor optimizes rack space while providing six NEMA 5-15R outlets for comprehensive device coverage. The integrated LCD display offers real-time status monitoring, while SmartConnect enables cloud-based remote management without additional management cards.
With a wide input voltage range from 82V to 144V AC, the unit automatically corrects under-voltage and over-voltage conditions without switching to battery power, extending battery life during prolonged brownouts. The 6ms transfer time ensures seamless transition during power events, while 680 joules of surge protection safeguards against voltage spikes.
The pure sine wave output provides clean power compatible with sensitive electronics, including servers with active PFC power supplies. Single-phase operation with NEMA 5-15P input plug connects directly to standard North American outlets, while the 8-foot power cord offers flexible installation options in rack environments.
Technical Overview
This line-interactive UPS maintains 120V output with a wide input voltage range from 82V to 144V AC, automatically correcting under-voltage and over-voltage conditions without switching to battery power. The 6ms transfer time ensures seamless transition during power events, while 680 joules of surge protection safeguards against voltage spikes.
The pure sine wave output provides clean power compatible with sensitive electronics, including servers with active PFC power supplies. Single-phase operation with NEMA 5-15P input plug connects directly to standard North American outlets, while the 8-foot power cord offers flexible installation options.
Battery System
Hot-swappable lead-acid batteries enable replacement without powering down connected equipment, maintaining uptime during maintenance. The typical 3-hour recharge time minimizes downtime between extended power events.
- Hot-swappable design
- Lead-acid chemistry
- 3-hour typical recharge
Key Product Advantages
The integrated LCD display delivers immediate visual status of input/output voltage, battery charge, load percentage, and runtime estimates. Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without draining battery reserves, extending runtime during prolonged brownouts.
Hot-swappable lead-acid batteries enable replacement without powering down connected equipment, maintaining uptime during maintenance. The typical 3-hour recharge time minimizes downtime between extended power events, while Energy Star certification confirms energy-efficient operation.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. The combination of pure sine wave output, wide voltage correction, and multiple management interfaces ensures compatibility with modern server and network equipment.
Deployment / Use Cases
This 1000VA rackmount UPS protects critical infrastructure in server rooms, network closets, and edge computing environments. The 2U form factor integrates seamlessly into standard 19-inch racks alongside servers, switches, and other rack-mounted equipment.
Ideal for small to medium business server deployments, the six outlets support multiple devices including file servers, network switches, routers, and security appliances. Retail environments benefit from protection for POS terminals and inventory systems, while VoIP installations maintain telephony continuity during power events.
Server Room Protection
Provides battery backup and voltage regulation for rack-mounted servers, storage arrays, and network switches in data center and server room environments.
- 2U rack optimization
- Six outlet coverage
- Pure sine wave compatibility
Network Infrastructure
Maintains network uptime for switches, routers, firewalls, and wireless access points during power disturbances, ensuring continuous connectivity.
- Wide voltage correction
- Fast transfer time
- Remote management capable
Physical Profile
The black 2U rackmount chassis measures 3.39 inches high, 17.01 inches wide, and 18.78 inches deep, occupying minimal rack space while providing substantial power protection. At 55.78 pounds, the unit includes integrated rack mounting support rails for secure installation in standard 19-inch racks.

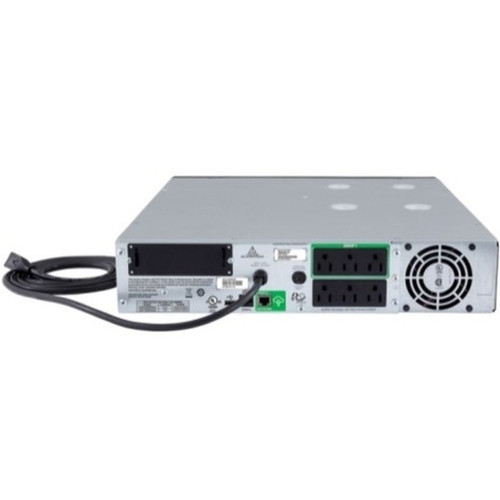

The front-panel LCD display and status indicators provide at-a-glance monitoring, while rear-panel connections include six NEMA 5-15R outlets, SmartConnect Ethernet port, serial management port, and USB interface for local management.
- Width
- 17.01" (432 mm)
- Depth
- 18.78" (477 mm)
- Height
- 3.39" (86 mm)
- Weight
- 55.78 lb (25301.38 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 1000VA/700W line-interactive UPS with pure sine wave output
- 2U rackmount form factor for standard 19-inch server racks
- Six NEMA 5-15R outlets provide comprehensive device coverage
- Automatic Voltage Regulation corrects brownouts without battery drain
- SmartConnect Ethernet port enables cloud-based remote monitoring
- Hot-swappable lead-acid batteries for maintenance without downtime
- LCD display shows real-time voltage, load, and battery status
- Includes PowerChute software for graceful system shutdown
- Energy Star certified for energy efficiency
- 3-year UPS warranty with 2-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1000RM2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMT1000RM2UC |
| Product Name | Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Server,Switch,Router,Network Device,POS Terminal,Network Hub |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC,75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.78 lb (25301.38 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS Documentation CD Installation guide Rack mounting support rails Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS provides 1000VA/700W of line-interactive power protection. The 1 kVA capacity supports critical equipment like servers, network switches, and POS terminals during power disturbances, with automatic voltage regulation to correct brownouts without draining battery reserves.
How many outlets does this rackmount UPS have?
The unit includes six NEMA 5-15R outlets, providing comprehensive coverage for multiple devices in rack environments. All outlets offer battery backup and surge protection, supporting equipment such as servers, routers, switches, and security appliances simultaneously.
What input and output voltage does this UPS support?
The UPS operates at 120V input and output, with a wide input voltage range from 82V to 144V AC. This allows it to automatically correct under-voltage and over-voltage conditions without switching to battery power, extending battery life during prolonged brownouts.
Is this UPS designed for rack or tower deployment?
This is a 2U rackmount UPS designed for installation in standard 19-inch server racks. The form factor optimizes rack space in data centers, server rooms, and network closets, and includes integrated mounting rails for secure deployment alongside other rack-mounted equipment.
What management and connectivity options are included?
Management features include a SmartConnect Ethernet port for cloud-based remote monitoring, a serial port for RS-232 connectivity, and a USB port for local management. The package includes PowerChute Serial Edition software for graceful system shutdown during extended outages.
Are the batteries hot-swappable in this UPS?
Yes, the lead-acid batteries are hot-swappable, allowing replacement without powering down connected equipment. This maintains uptime during maintenance, with a typical recharge time of three hours to minimize downtime between extended power events.
