APC by Schneider Electric SMT1500RM2UC APC Smart-UPS 1500VA 2U Rackmount UPS - 1.44 kVA/1000W - 6x NEMA 5-15R Outlets - 120V - SmartConnect - AVR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS 1500VA 2U rackmount UPS delivers reliable line-interactive power protection for critical IT infrastructure. With a 1.44 kVA/1000W capacity, this unit provides robust backup power for servers, network equipment, and storage systems during outages or voltage fluctuations.
Featuring six NEMA 5-15R outlets, automatic voltage regulation (AVR), and a clear LCD status display, this UPS ensures connected equipment receives clean, stable power. The SmartConnect Ethernet port enables cloud-based remote monitoring, while included PowerChute software facilitates graceful shutdowns via serial or USB connections.
This ENERGY STAR 2.0 certified unit operates with a pure sine wave output, ensuring compatibility with sensitive electronics. The 10ms transfer time minimizes disruption during power events, while the 82-144V input voltage range allows operation in varying utility conditions. The black rack-mountable enclosure occupies exactly 2U of rack space with dimensions of 3.39" height, 17.01" width, and 18.78" depth.
Environmental specifications include operation up to 10,000 feet elevation, 0-95% humidity range, and a maximum operating temperature of 104°F (40°C). The unit carries a three-year limited warranty with two-year battery coverage, providing comprehensive protection against defects in materials and workmanship under normal use conditions.
Technical Overview
This line-interactive UPS operates with a pure sine wave output, ensuring compatibility with sensitive electronic equipment. The 10ms transfer time minimizes disruption during power events, while the 82-144V input voltage range allows operation in varying utility conditions.
The unit incorporates a single lead-acid battery with 1555.2 kJ of energy storage, supporting a typical recharge time of three hours. Environmental specifications include operation up to 10,000 feet elevation, 0-95% humidity range, and a maximum operating temperature of 104°F (40°C).
Management capabilities include SmartConnect cloud-based monitoring through the built-in Ethernet port, configurable alarms for low battery conditions, and LCD status indicators. The unit provides 680 J of surge energy protection and thermal dissipation of 225 BTU/h during normal operation.
Connectivity options include serial, network (RJ-45), and USB (HID compliant) ports for flexible management integration. The 8-foot power cord provides ample reach within standard rack installations, while the 45 dB(A) sound emission rating ensures quiet operation in server room environments.
Key Product Advantages
The Smart-UPS 1500VA combines enterprise-grade power protection with intuitive management features. The integrated LCD provides real-time status information, while configurable alarms alert users to low battery conditions or other critical events.
SmartConnect Remote Monitoring
Cloud-based management through the SmartConnect Ethernet port enables remote power monitoring and control without additional management cards.
- Web-based interface
- No additional hardware required
- Remote status monitoring
Comprehensive Protection
Automatic voltage regulation corrects both over-voltage and under-voltage conditions, extending battery life and protecting connected equipment.
- Voltage correction
- Surge protection
- Frequency regulation
Enterprise Management Integration
PowerChute software supports graceful shutdowns of connected servers and network devices through serial or USB connections.
- Serial Edition included
- USB HID compliant
- Business Edition compatible
Deployment / Use Cases
This 2U rackmount UPS is engineered for data center, server room, and network closet installations. The compact form factor maximizes rack space efficiency while delivering substantial power capacity for critical infrastructure.
Typical applications include protecting server racks, network switches, storage arrays, VoIP systems, and retail POS equipment. The six outlets support multiple devices, while the 8-foot power cord provides flexible placement options within standard racks.
The unit's 1.44 kVA/1000W capacity makes it suitable for single-server installations or network equipment clusters requiring reliable backup power during outages. The rack-mountable design with included support rails facilitates secure installation in standard 19-inch racks.
Business environments benefit from the SmartConnect remote monitoring capabilities, which enable web-based management of power status, configuration, and alerts without requiring additional management cards. The PowerChute software integration supports graceful shutdowns of connected servers and network devices through serial or USB connections.
Server Room Protection
Ideal for single-server installations or network equipment clusters requiring reliable backup power during outages.
Network Closet Deployment
Compact 2U design fits standard network racks while providing power protection for switches, routers, and access points.
Retail & Business Applications
Supports POS systems, VoIP equipment, and other critical business infrastructure with clean, stable power.
Physical Profile
The black rack-mountable enclosure measures 3.39" (86 mm) in height, 17.01" (432 mm) in width, and 18.78" (477 mm) in depth, occupying exactly 2U of rack space. Weighing approximately 58.42 lb (26.5 kg), the unit includes rack mounting support rails for secure installation in standard 19-inch racks.

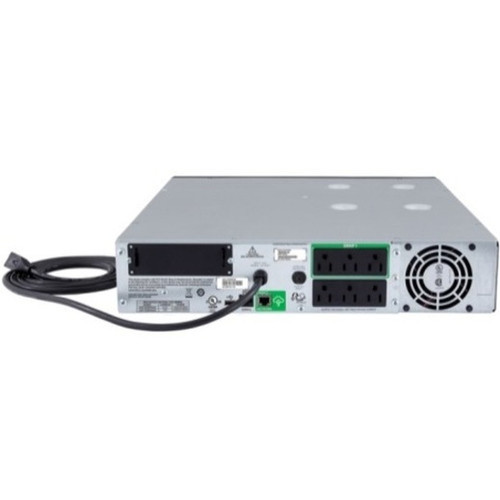

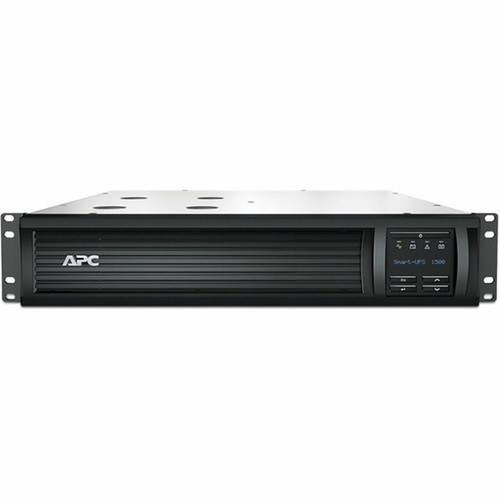

The front-panel LCD display provides clear status information, while rear-panel connections include the input cord, six NEMA 5-15R outlets, and management ports. Sound emission is rated at 45 dB(A) during normal operation.
- Width
- 17.01" (432 mm)
- Depth
- 18.78" (477 mm)
- Height
- 3.39" (86 mm)
- Weight
- 45 dB(A)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1440VA/1000W line-interactive pure sine wave UPS
- 2U rackmount form factor for standard 19-inch racks
- Six NEMA 5-15R outlets for multiple device connections
- SmartConnect Ethernet port for cloud-based remote monitoring
- Automatic Voltage Regulation corrects utility voltage fluctuations
- LCD status display with configurable alarms
- PowerChute software for graceful server shutdowns
- ENERGY STAR 2.0 certified for energy efficiency
- Three-year UPS warranty with two-year battery coverage
- Includes rack mounting rails and USB cable
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1500RM2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Management | |
| Network Management | SmartConnect |
| Alarm | Low Battery,Configurable Delay |
| Controls/Indicators | |
| Status Indicators | LCD Status |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Battery Energy | 1555.2 kJ |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 41°F (5°C) - 235.4°F (113°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 225 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 58.42 lb (26498.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect Installation guide Rack mounting support rails USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS has a load capacity of 1.44 kVA (1440 VA) and 1000 watts, providing robust backup power for servers, network equipment, and storage systems during outages or voltage fluctuations.
How many outlets does this UPS have and what type are they?
The unit features six NEMA 5-15R outlets, allowing multiple devices such as servers, switches, and storage arrays to be connected simultaneously for comprehensive power protection in rack-mounted environments.
What input and output voltages does this UPS support?
It operates at 120 V AC input and output, with an input voltage range of 82-144 V AC, ensuring stable power delivery in varying utility conditions and compatibility with standard North American electrical systems.
Is this UPS designed for rack or tower deployment?
This UPS is designed for rack deployment with a 2U form factor, making it ideal for data centers, server rooms, and network closets. It includes rack mounting support rails for secure installation in standard 19-inch racks.
What management and connectivity options are included?
Management features include a SmartConnect Ethernet port for cloud-based remote monitoring, serial and USB ports for integration with PowerChute software for graceful shutdowns, and an LCD status display for real-time power information.
What is the battery type and typical recharge time?
The UPS uses a single lead-acid battery with a typical recharge time of three hours, providing reliable energy storage for backup power during outages and supporting a battery life of up to six years under normal use conditions.
