APC by Schneider Electric SMT2200RM2UNC Smart-UPS 2200VA Line Interactive 2U Rackmount UPS - 1920W - 120V - 8 Outlets - Network Card - LCD - 3-Hour
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model employs line-interactive topology with a transfer time of 4 milliseconds, maintaining continuous power to connected servers, network switches, routers, and POS terminals. The 120V single-phase input and output ensure compatibility with standard North American power circuits, while the 530-joule surge energy rating provides protection against voltage spikes.
The unit features automatic voltage regulation (AVR) that corrects under-voltage and over-voltage conditions without draining the battery. Battery backup engages during complete power failures, delivering up to five minutes of runtime at full load (1920W). The lead-acid battery typically recharges within three hours after a discharge event.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SMT2200RM2UNC combines rack-optimized design with enterprise-grade power protection and management capabilities. The integrated network card eliminates the need for separate hardware purchases and includes a one-year subscription to secure remote management services.
Integrated Network Management
The preinstalled network management card enables IP-based monitoring, configuration, and graceful shutdown of physical servers, virtual machines, and hyper-converged infrastructure clusters. The included one-year subscription provides secure access to management features without additional licensing costs.
- Remote monitoring via network
- Graceful shutdown capabilities
- 1-year secure subscription included
Rack-Optimized Design
The 2U form factor maximizes rack space efficiency while providing substantial power capacity. The unit includes all necessary mounting hardware for quick installation in standard 19-inch racks.
- 2U rack height
- Includes mounting brackets and rails
- Front-accessible LCD and controls
Deployment / Use Cases
This Smart-UPS is engineered for business-critical environments where uptime and remote manageability are essential. The 1920W capacity and eight outlets make it suitable for protecting mixed equipment loads in consolidated rack deployments.
Typical applications include server racks in small to medium data centers, network closets supporting switches and routers, retail POS systems requiring uninterrupted operation, and VoIP infrastructure in business environments. The unit's line-interactive design with AVR provides robust protection against common power problems while maximizing battery life for actual outages.
Server Room Protection
Provides backup power for rack-mounted servers, storage arrays, and network equipment during utility failures, allowing for orderly shutdown or continued operation through brief outages.
Network Infrastructure
Protects switches, routers, and other networking gear in closets and small data rooms, maintaining connectivity during power disturbances.
Physical Profile

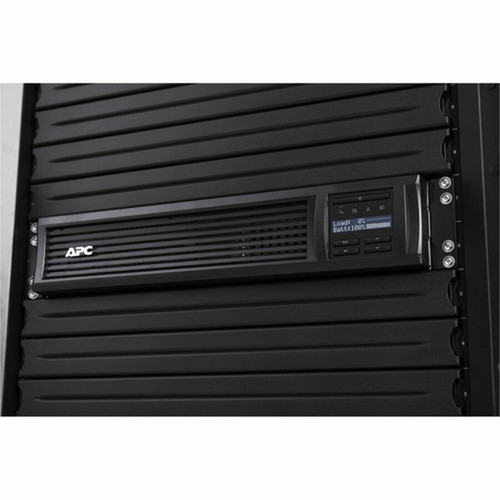

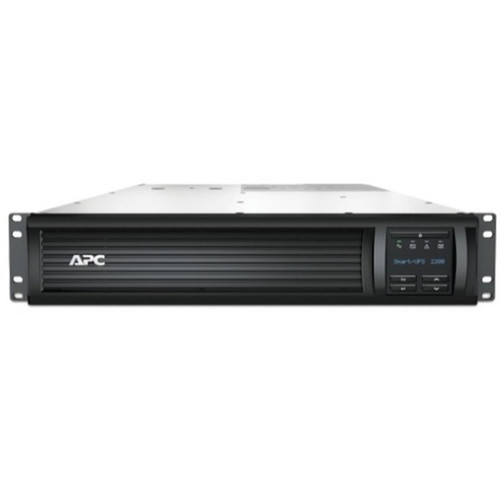

The black 2U rackmount enclosure measures 3.39 inches in height, 18.90 inches in width, and 26.89 inches in depth, fitting standard 19-inch rack widths. The 93.28-pound weight includes the internal battery pack. The front panel features an LCD display for status monitoring and configuration, along with control buttons. The unit includes integrated handles for easier installation and removal from racks.
- Width
- 18.90" (480.06 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 93.28 lb (42311.10 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all components necessary for immediate deployment and management of the UPS system.
Highlights
- 2200VA/1920W line-interactive UPS with pure sine wave output
- 2U rackmount form factor for space-efficient deployment
- Preinstalled network management card with 1-year subscription
- Eight NEMA outlets (6× 5-15R, 2× 5-20R) for mixed equipment
- Automatic voltage regulation corrects utility voltage fluctuations
- LCD display for real-time status and configuration
- 5-minute runtime at full load (1920W)
- 3-hour typical battery recharge time
- Includes rack mounting brackets and support rails
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200RM2UNC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA LCD RM 2U 120V with Network Card |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 2 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Server,Network Switch,Network Hub,Network Router,POS Terminal |
| Power Description | |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 93.28 lb (42311.10 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 2200VA LCD RM 2U 120V with Network Card CD with software Documentation CD Rack mounting brackets Rack mounting support rails Smart UPS signalling RS-232 cable USB cable |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this Smart-UPS model?
The SMT2200RM2UNC provides 2200VA/1920W of line-interactive power protection. This capacity supports mixed equipment loads including servers, network switches, and POS terminals in rack environments. The unit delivers pure sine wave output with automatic voltage regulation to maintain clean power to connected devices.
How many outlets does this UPS have and what types?
This Smart-UPS features eight NEMA outlets: six NEMA 5-15R outlets and two NEMA 5-20R outlets. The combination supports both standard 15-amp and higher-capacity 20-amp devices, allowing flexible equipment connections in rack deployments. All outlets provide battery backup and surge protection.
What is the runtime at full load?
At the maximum load of 1920W, the UPS provides approximately 5 minutes of battery runtime. This duration allows for orderly shutdown of connected equipment during a power outage. Runtime increases significantly at lower loads, with the exact duration depending on the actual power draw of connected devices.
Does this UPS include network management capabilities?
Yes, the SMT2200RM2UNC comes with a preinstalled network management card that enables remote monitoring, configuration, and graceful shutdown via network connection. The package includes a one-year subscription to secure management services, allowing IT staff to monitor UPS status and receive alerts without being physically present at the rack.
What rack space does this unit require?
This Smart-UPS occupies 2U of vertical space in a standard 19-inch rack. The dimensions are 3.39 inches high, 18.90 inches wide, and 26.89 inches deep. The package includes all necessary mounting brackets and support rails for secure installation. The 2U form factor optimizes rack density while providing substantial power capacity.
What warranty coverage is provided?
APC by Schneider Electric provides a 3-year (36-month) warranty for the UPS unit and a 2-year (24-month) warranty for the internal battery. This coverage includes protection against defects in materials and workmanship. The warranty terms are detailed in the documentation included with the product.
