APC by Schneider Electric SMTL1000RM2UC APC Smart-UPS 1000VA/800W Line Interactive UPS - Lithium-ion - 2U Rackmount - 120V - 6 Outlets - SmartConnect
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model operates on a single-phase line-interactive topology, providing battery backup and surge protection with a 680 J surge energy rating. It accepts input from 82V to 144V AC at 60 Hz, stabilizing to a consistent 120V AC sine wave output. The lithium-ion battery chemistry offers a typical recharge time of three hours and is designed to last the lifetime of the UPS under normal conditions, minimizing replacement intervals.
Management interfaces include a SmartConnect Ethernet port for cloud connectivity, a serial port, and a USB HID-compliant port for direct computer communication. The unit supports configurable alarms for on-battery, low-battery, and other status events, with environmental tolerances for operation up to 104°F (40°C) and 0-95% humidity.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SMTL1000RM2UC combines advanced battery technology, space-efficient design, and intelligent management to deliver a high-value UPS solution. Its lithium-ion battery not only extends service life but also reduces total cost of ownership by eliminating frequent battery replacements. The short-depth 2U form factor saves valuable rack space, allowing for better cable management and airflow in dense installations.
Cloud-Ready Management
SmartConnect enables remote monitoring and management via a web interface, providing real-time insights into power status without on-site visits.
- No additional management card required
- Accessible from any internet-connected device
Tower Convertible Design
With optional stabilizing feet (sold separately), this rackmount UPS can be deployed in tower configurations, offering flexibility for environments without rack infrastructure.
Deployment / Use Cases
This UPS is engineered for environments where power continuity is critical but space is constrained. Its 1000VA/800W capacity suits small to medium loads, making it ideal for network infrastructure, edge computing locations, and retail back-office setups. The short depth and 2U height allow installation in standard 19-inch racks without protruding beyond typical rail depths.
Common applications include protecting servers in branch offices, ensuring uptime for POS systems in retail, and safeguarding routers and switches in network closets. The unit's compatibility with PowerChute software enables automated graceful shutdowns of connected equipment during extended outages, preventing data loss and hardware damage.
Network Closet Protection
Deploy in IDF/MDF closets to keep switches, routers, and network hubs online during power disturbances, maintaining network availability.
Edge Environment Support
Use in remote or small office locations to protect critical devices without requiring extensive infrastructure or frequent maintenance.

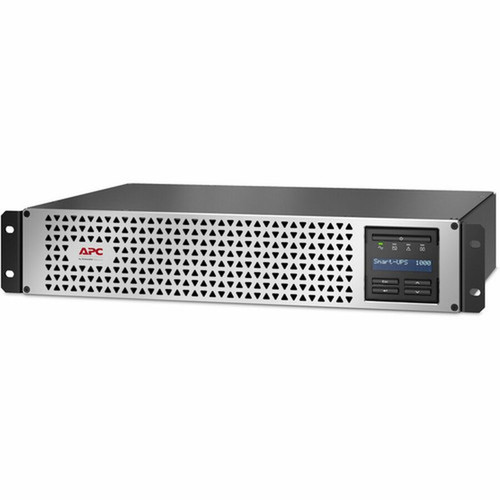

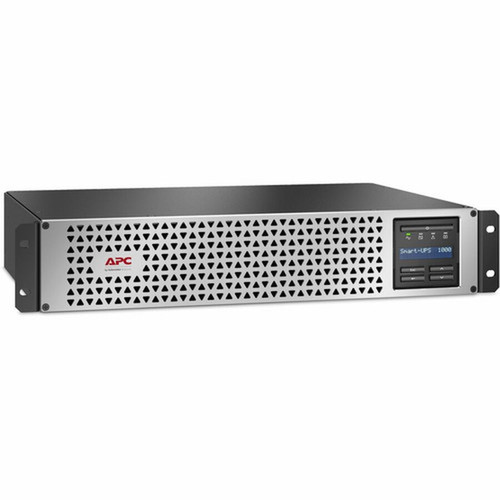

Physical Profile
The UPS features a compact chassis measuring 3.39" (86 mm) in height, 17.24" (438 mm) in width, and 12.52" (318 mm) in depth, occupying 2U of rack space. Its short-depth design provides extra room for cable management behind the rack, while the black and silver finish offers a professional appearance. Weighing approximately 36 lb (16.33 kg), it includes integrated rack-mounting support rails for secure installation. The unit is tower-convertible with optional stabilizing feet, allowing flexible deployment in both rack and standalone setups.
- Width
- 17.24" (438 mm)
- Depth
- 12.52" (318 mm)
- Height
- 3.39" (86 mm)
- Weight
- 36 lb (16329.33 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1000VA/800W line-interactive UPS with pure sine wave output
- Lithium-ion battery minimizes replacement needs over the UPS lifetime
- Short-depth 2U rackmount design saves space in network closets
- Six NEMA 5-15R outlets for connecting servers and network devices
- SmartConnect enables cloud-based remote power monitoring
- Tower convertible with optional stabilizing feet (sold separately)
- Includes PowerChute Serial Edition for graceful shutdowns
- 5-year warranty covering both UPS and battery
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL1000RM2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 8 ft (2.44 m) |
| Phase | Single Phase |
| Application/Usage | Server,POS Terminal,Router,Switch,Network Hub,Network Device |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Management | |
| Network Management | SmartConnect |
| Alarm | On Battery,Low Battery,Configurable Delay |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 24606.30 ft (7500000 mm) |
| Storage Temperature | -40°F (-40°C) - 95°F (35°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 41 dB |
| Thermal Dissipation | 70 BTU/h |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17.24" (438 mm) |
| Depth | 12.52" (318 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 36 lb (16329.33 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect Installation guide Rack mounting support rails USB cable |
| Software Included | Powerchute Serial Edition |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Battery Directive |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This Smart-UPS has a load capacity of 1000VA (1 kVA) and 800 watts. It provides sufficient power for small to medium loads such as servers, POS terminals, routers, and network switches, ensuring reliable backup during outages.
Does this UPS use a lithium-ion battery?
Yes, it features a lithium-ion (Li-Ion) battery. This chemistry offers longer service life compared to traditional lead-acid batteries, typically lasting the lifetime of the UPS under normal use, which reduces maintenance and replacement costs.
What rack space does this UPS require?
The UPS occupies 2U of rack height and has a short depth of 12.52 inches (318 mm). Its compact design fits standard 19-inch racks without extending beyond typical rail depths, making it ideal for space-constrained environments like network closets.
How many outlets does this Smart-UPS have?
It includes six NEMA 5-15R outlets for connecting equipment. All outlets provide battery backup and surge protection, supporting devices such as servers, routers, and switches with standard North American plugs.
What management features are included?
Management features include SmartConnect for cloud-based remote monitoring via Ethernet, plus serial and USB ports for local connectivity. The UPS supports configurable alarms and comes with PowerChute Serial Edition software for automated graceful shutdowns.
Can this rackmount UPS be used as a tower unit?
Yes, it is tower convertible with optional stabilizing feet (sold separately). This allows deployment in environments without rack infrastructure, providing flexibility for office or retail settings where a standalone UPS is preferred.
