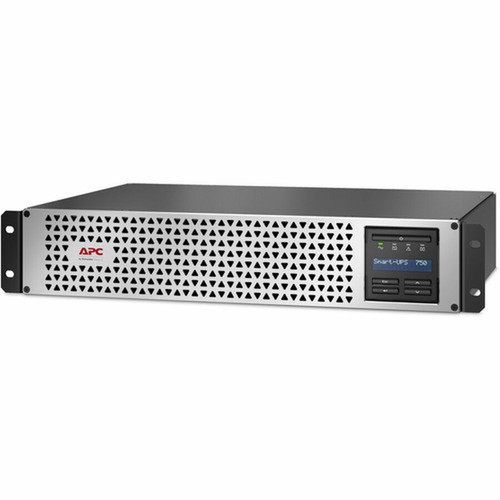

APC by Schneider Electric SMTL750RM2UCNC APC Smart-UPS 750VA/600W Line Interactive UPS - Lithium-ion - 2U Rackmount - 120V - 6 NEMA 5-15R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS 750VA line interactive UPS delivers reliable power protection for critical IT infrastructure in small edge environments, network closets, and back-office deployments. This 2U rackmount unit features a lithium-ion battery that minimizes replacement needs over its operational lifetime, supported by a comprehensive 5-year warranty covering both the UPS and battery.
With 750VA/600W capacity and pure sine wave output, it ensures clean power delivery to connected equipment. The short-depth design provides extra space for cable management in crowded racks, while the included network management card enables remote monitoring and graceful shutdown capabilities for physical servers, virtual machines, and HCI clusters.
Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery, extending runtime and protecting sensitive electronics. The unit includes six NEMA 5-15R outlets and an 8-foot power cord for flexible installation in standard North American environments.
Designed for IT, network, server, and data center applications, this UPS supports a wide range of business uses from healthcare to education. Its RoHS-compliant construction meets environmental standards, ensuring reliable performance in diverse operational settings.
Technical Overview
This single-phase UPS operates at 60Hz with input and output synchronization, providing stable power in varying conditions. It includes an Emergency Power Off (EPO) port for safe shutdown procedures and serial connectivity for legacy management systems, while maintaining operation up to 104°F (40°C) with 0-95% humidity tolerance.
The input voltage range of 82-144 V AC accommodates fluctuating power quality, with output locked at 120 V AC for consistent device performance. A 680J surge energy rating protects against power spikes, and an EMI/RFI noise filter reduces electrical interference for connected equipment.
The multifunction LCD display offers clear status monitoring, including battery life and load levels. Connectivity options include USB, network, and serial ports, enabling integration with modern IT management platforms for proactive oversight.
Battery management features a typical recharge time of 3 hours, preparing the UPS quickly for subsequent outages. The unit is rated for operation up to 9,842.52 feet elevation and storage up to 25,000 feet, supporting deployment in diverse geographic locations.
Power Quality
Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery, extending runtime. The pure sine wave output ensures compatibility with sensitive electronics, while 680J surge protection guards against power spikes.
Monitoring & Control
A multifunction LCD provides clear status information. The preinstalled network management card supports remote monitoring via SmartConnect Ethernet port, with a 1-year secure subscription included for cloud-based management.
Key Product Advantages
Network-based management enables proactive monitoring and automated shutdown sequences, protecting data integrity during extended outages. The RoHS-compliant construction meets environmental standards while delivering industrial-grade reliability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rack-Optimized Design, Comprehensive Protection.
Rack-Optimized Design
The 2U form factor with short 12.52" depth maximizes rack space efficiency. Stabilizing feet for tower conversion are available separately for flexible deployment.
Comprehensive Protection
Six NEMA 5-15R outlets distribute protected power to multiple devices. The 8-foot power cord provides installation flexibility in various rack configurations.
Deployment / Use Cases
The UPS serves healthcare, banking, education, and general business applications where power continuity is critical. Its 45 dB(A) acoustic profile ensures quiet operation in office environments, while the wide input voltage range accommodates varying power quality conditions across different regions.
Ideal for protecting routers, switches, and network equipment in IDF/MDF closets, the compact design fits standard 19" racks while providing runtime for graceful network shutdowns. It supports edge computing nodes, network security appliances, and VoIP systems in distributed IT deployments.
In server and storage environments, this unit safeguards physical servers and storage arrays in small data center applications. The network management capability integrates with virtualization platforms for coordinated shutdown of virtual machines and HCI clusters, protecting data integrity during extended outages.
Additional use cases include back-office servers, storage arrays, and business-critical infrastructure where reliable uptime is essential. The tower-convertible design with optional stabilizing feet allows flexible deployment in both rack and standalone configurations, adapting to space constraints.
Network Infrastructure
Ideal for protecting routers, switches, and network equipment in IDF/MDF closets. The compact design fits standard 19" racks while providing runtime for graceful network shutdowns.
- Edge computing nodes
- Network security appliances
- VoIP systems
Server & Storage Environments
Supports physical servers and storage arrays in small data center applications. The network management capability integrates with virtualization platforms for coordinated shutdown of virtual machines.
- Back-office servers
- Storage arrays
- HCI clusters
Physical Profile
The black and silver enclosure measures 3.39" H × 17.24" W × 12.52" D (86 × 438 × 318 mm), occupying 2U of rack space. The rack-mountable design includes provisions for wall mounting, offering deployment flexibility in tight server rooms or network closets.
At 33.95 pounds, the unit maintains manageable weight for installation while providing robust construction for continuous operation. The short depth of 12.52 inches maximizes space efficiency in crowded racks, allowing better airflow and cable management behind the unit.
The form factor supports both rack-mount and wall-mount installations, with optional stabilizing feet available for tower conversion. This versatility makes it suitable for diverse environments, from data centers to small office settings where footprint is a consideration.
Sound emission is rated at 45 dB(A), ensuring quiet operation that won't disrupt office workflows. The physical dimensions and weight are clearly defined to help confirm rack, shelf, or cabinet fit before installation, streamlining deployment planning.
- Width
- 17.24" (438 mm)
- Depth
- 12.52" (318 mm)
- Height
- 3.39" (86 mm)
- Weight
- 45 dB(A)
- Length
- 8 ft (2.44 m)
Highlights
- 750VA/600W line interactive UPS with pure sine wave output
- Lithium-ion battery with 10-year life expectancy
- 2U rackmount design with short 12.52" depth
- Six NEMA 5-15R outlets for multiple device protection
- Preinstalled network management card with 1-year subscription
- SmartConnect Ethernet port for cloud-based remote monitoring
- Automatic Voltage Regulation (AVR) for power correction
- 5-year comprehensive warranty covering UPS and battery
- Tower convertible with optional stabilizing feet
- RoHS-compliant, environmentally friendly construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMTL750RM2UCNC |
| Brand Name | APC by Schneider Electric |
| Product Series | Smart-UPS |
| Product Name | Smart-UPS 750VA UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 8 ft (2.44 m) |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | IT,Network,Server,Data Center,Security,Office,Healthcare,Bank,Education,Storage,Business,Router,Switch,Network Device,Hub,Network Equipment,Edge Computing,Network Closet |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Controls/Indicators | |
| Status Indicators | Écran LCD multifonction |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 5.70 Minute |
| Backup/Run Time (Half Load) | 13.80 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 25000 ft (7620000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17.24" (438 mm) |
| Depth | 12.52" (318 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable,Wall Mountable |
| Weight (Approximate) | 33.95 lb (15399.46 g) |
| Miscellaneous | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS provides 750 VA and 600 W of power capacity, suitable for protecting small IT infrastructure like network equipment, servers, and edge devices in environments such as network closets or back offices.
What runtime can I expect at full and half load?
At full load, the UPS offers a backup runtime of 5.70 minutes, while at half load, it extends to 13.80 minutes. These runtimes support graceful shutdowns for connected devices during power outages, ensuring data integrity and system protection.
How many outlets does this UPS have, and what type are they?
The unit includes six NEMA 5-15R outlets, providing protected power for multiple devices. This configuration is ideal for standard North American power setups, allowing you to connect routers, switches, and other critical IT equipment.
What are the input and output voltage specifications?
The UPS operates with an input voltage of 120 V AC and a range of 82-144 V AC, accommodating fluctuating power quality. The output is stabilized at 120 V AC, delivering consistent power to connected equipment for reliable performance.
Is this UPS designed for rack or tower deployment?
This UPS features a 2U rackmount form factor with a short depth of 12.52 inches, optimized for standard 19-inch racks. It is also tower convertible with optional stabilizing feet (sold separately), offering flexibility for both rack and standalone installations.
What management and connectivity options are included?
The UPS comes with a preinstalled network management card, SmartConnect Ethernet port for cloud-based monitoring, USB and serial ports, and an EPO port. These enable remote management, graceful shutdowns for servers and VMs, and integration with IT management platforms, with a 1-year secure subscription included.
