APC by Schneider Electric SMX750C APC Smart-UPS SMX 750VA/675W Line Interactive UPS - 2U Rack/Tower Convertible - 120V - 8 Outlets - SmartConnect
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS SMX 750VA/675W line interactive UPS delivers reliable power protection for critical business infrastructure. This 2U rack/tower convertible unit combines 750VA/675W capacity with pure sine wave output, ensuring clean power for sensitive electronics during outages and voltage fluctuations. Featuring eight NEMA 5-15R outlets and SmartConnect network management, this UPS provides both physical connectivity and remote monitoring capabilities. The multi-function LCD control panel offers clear status information, while automatic voltage regulation maintains stable output within user-selectable levels. With support for up to five external battery packs, the system can be extended for longer runtime requirements in demanding environments.
Designed for mission-critical applications, this UPS protects servers, network devices, storage systems, and communication equipment. Its line interactive topology with automatic voltage regulation corrects minor voltage fluctuations without switching to battery power, extending battery life and reducing wear. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking equipment. The unit includes PowerChute Serial Edition software for graceful shutdowns and comprehensive management via serial or USB connections. Energy Star certification and RoHS compliance reflect its environmental responsibility and energy efficiency.
Technical Overview
This line interactive UPS employs automatic voltage regulation to correct minor voltage fluctuations without switching to battery power, extending battery life and reducing wear. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking equipment. Electrical specifications include 120V input/output with an 82-144V input range, 63Hz input frequency, and 127Hz output frequency. The unit provides 645 joules of surge protection and features zero transfer time for seamless power backup. Battery configuration includes one lead-acid battery with typical recharge completing within three hours.
Management features include a SmartConnect Ethernet port for cloud-based remote monitoring without additional network management cards. The front panel has a multi-function LCD display showing status, load, runtime, and configuration information. Connectivity options include serial, USB, EPO, and RJ-45 ports for flexible integration with existing infrastructure. The UPS supports graceful shutdowns via PowerChute software, protecting data and equipment during extended outages. Physical dimensions are 17.01 inches in height, 3.50 inches in width, and 19.29 inches in depth, occupying 2U of rack space with a weight of 48.61 pounds.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Flexible Deployment, Advanced Management, Scalable Runtime.
Flexible Deployment
Convertible 2U design works equally well in rack-mounted server environments or as a standalone tower unit, with removable support feet and included rack mounting brackets.
- Rack/tower convertible
- Includes mounting hardware
- Removable support feet
Advanced Management
SmartConnect Ethernet port enables cloud-based remote monitoring and management without additional network management cards, while PowerChute software facilitates graceful shutdowns.
- Cloud monitoring via SmartConnect
- Graceful shutdown capability
- Multi-function LCD display
Scalable Runtime
Support for up to five external battery packs (SMX48RMBP2U) allows runtime extension for mission-critical applications requiring longer backup durations.
- External battery pack support
- Extended runtime capability
- Mission-critical readiness
Deployment / Use Cases
The Smart-UPS SMX 750VA is engineered for business-critical applications where power continuity is essential. Its 750VA/675W capacity makes it suitable for protecting individual servers, network infrastructure, storage systems, and communication equipment during power disturbances.
Typical deployment scenarios include server rooms, network closets, edge computing locations, and commercial office environments. The unit's compatibility with VoIP systems, security equipment, POS terminals, and workstations makes it versatile across various business applications. For rack-mounted installations, the rail kit (SU032A) is available separately to complete the mounting solution.
Server & Network Protection
Ideal for single-server deployments, network switches, routers, and storage devices requiring clean power and graceful shutdown capabilities during extended outages.
Commercial Infrastructure
Protects business-critical systems including security cameras, access control, communication equipment, and point-of-sale terminals in retail and office environments.
Physical Profile
The black chassis measures 17.01 inches in height, 3.50 inches in width, and 19.29 inches in depth, occupying 2U of rack space. At 48.61 pounds, the unit provides substantial power protection in a compact form factor suitable for standard server racks or standalone tower placement.

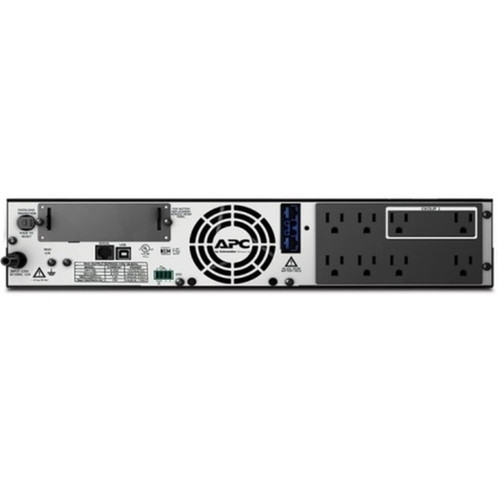

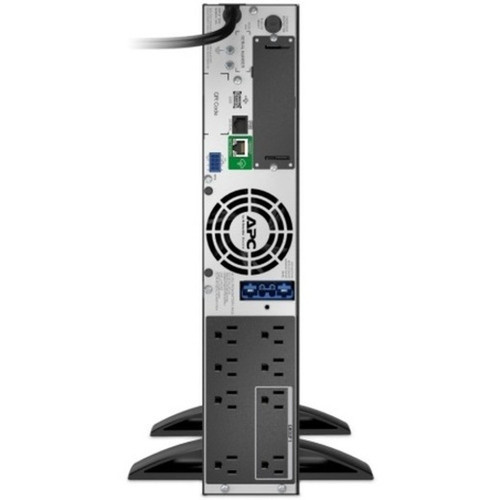

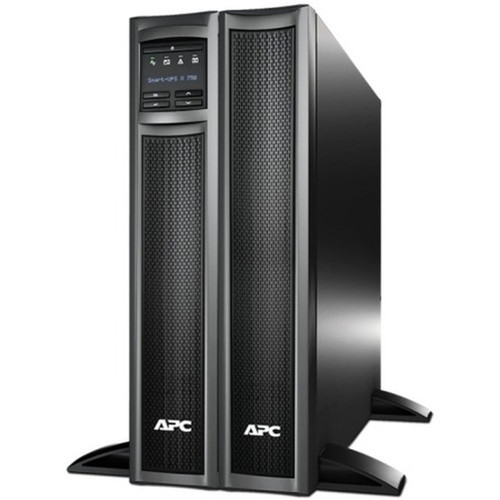

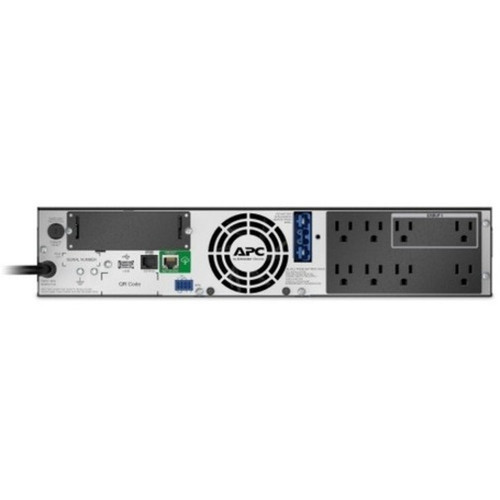

The convertible design includes removable support feet for tower use and rack mounting brackets for standard 19-inch rack installations. The front panel features a multi-function LCD display showing status information, while rear panel access provides all connectivity ports and outlets.
- Width
- 3.50" (89 mm)
- Depth
- 19.29" (490 mm)
- Height
- 17.01" (432 mm)
- Weight
- 48.61 lb (22049.13 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 750VA/675W line interactive pure sine wave UPS
- 2U rack/tower convertible design with included mounting hardware
- Eight NEMA 5-15R outlets for multiple device protection
- SmartConnect Ethernet port for cloud-based remote monitoring
- Support for up to five external battery packs (SMX48RMBP2U)
- Pure sine wave output compatible with active PFC equipment
- Automatic voltage regulation extends battery life
- Multi-function LCD control panel with status indicators
- Includes PowerChute software for graceful shutdowns
- Three-year UPS warranty with two-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX750C |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SMX |
| Product Name | Smart-UPS SMX 750VA Tower/Rack Convertible UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment,Server Room,Business,IT Infrastructure,Security System,Communication System,Electronic,VoIP,Telecommunication,Workstation,Network Device,POS Terminal,Edge Computing,Data Storage,Mobile Device,Tablet,Computer |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 127 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Management | |
| Network Management | SmartConnect |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | Control Panel: Multi-Function LCD Status Control Console |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 25.60 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.50" (89 mm) |
| Depth | 19.29" (490 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 48.61 lb (22049.13 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SMX 750VA Tower/Rack Convertible UPS Cat 5 Ethernet cable Installation guide Rack mounting brackets Removable support feet Smart UPS signalling RS-232 cable USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS SMX?
The APC Smart-UPS SMX 750C delivers 750 VA (volt-amps) and 675 watts of power capacity. This rating determines how much equipment it can support during an outage, making it suitable for protecting individual servers, network switches, storage devices, or multiple smaller devices in a business environment.
What runtime can I expect from this UPS at different loads?
At full load (675 watts), the UPS provides approximately 12 minutes of backup runtime. At half load (337.5 watts), runtime extends to about 25.6 minutes. These figures are based on the internal lead-acid battery; runtime can be significantly extended by adding up to five external battery packs (SMX48RMBP2U) for mission-critical applications requiring longer protection.
How many devices can I connect to this UPS?
This unit features eight NEMA 5-15R outlets, allowing you to protect multiple devices simultaneously. All outlets provide battery backup and surge protection, making it ideal for server rooms, network closets, or office environments where several pieces of critical equipment need reliable power continuity.
What input and output voltage does this UPS support?
The UPS operates on standard 120V AC power with an input voltage range of 82-144V AC. It outputs a clean 120V AC pure sine wave, ensuring compatibility with active PFC power supplies found in modern servers and networking equipment. The automatic voltage regulation (AVR) feature corrects minor voltage fluctuations without switching to battery power.
Can this UPS be installed in both rack and tower configurations?
Yes, this is a convertible 2U unit that works equally well as a rack-mounted or standalone tower UPS. The package includes rack mounting brackets for standard 19-inch rack installations and removable support feet for tower placement. For complete rack mounting, the rail kit (SU032A) is available separately.
What management and monitoring options are available?
The UPS includes a SmartConnect Ethernet port for cloud-based remote monitoring without additional network management cards. It also features serial, USB, and EPO ports for integration with management software like PowerChute Serial Edition (included) for graceful shutdowns. The front panel has a multi-function LCD display showing status, load, runtime, and configuration information.
