APC by Schneider Electric SRT5KRMXLT APC Smart-UPS SRT 5.4kVA/4.25kW Double-Conversion Online UPS - 3U Rackmount - 208V - 4x NEMA Outlets - Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

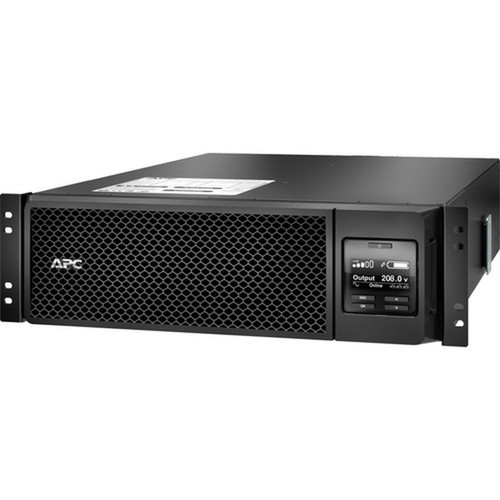

The APC Smart-UPS SRT 5000VA RM 208V is a double-conversion online UPS engineered for critical IT infrastructure requiring clean, uninterrupted power. This 3U rackmount unit delivers 5.4kVA/4.25kW of pure sine wave output with zero transfer time, ensuring sensitive equipment like servers, storage arrays, and network hardware remain operational during power disturbances. Its robust design includes a rack/tower convertible form factor with included rail kit, making it versatile for data center or server room deployment.

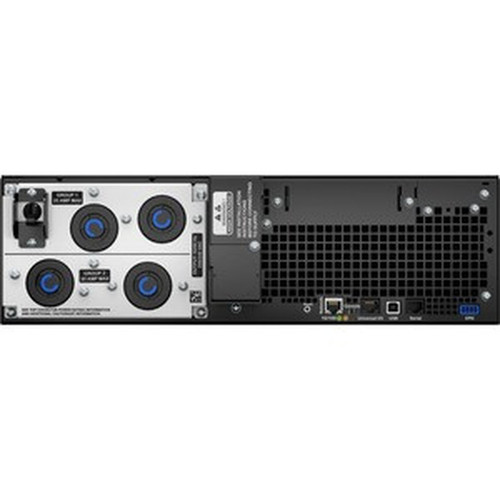

The unit features an embedded network management card for remote monitoring and management, along with a SmartSlot for additional communication options. With support for up to 10 external battery packs, it offers scalable runtime for extended backup needs. The UPS provides four NEMA outlets—two L6-20R and two L6-30R—accommodating standard IT and industrial power cords. Its 208V AC input and output voltage matches common three-phase power distribution in North American data centers, simplifying integration into existing electrical infrastructure.
Technical Overview
This Smart-UPS SRT model operates on a double-conversion online topology, continuously converting incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. It accepts single-phase 208V AC input and delivers a stable 208V AC sine wave output, protecting connected loads from sags, surges, and frequency variations. The power conditioning is complemented by a 480-joule surge energy rating for additional protection against transient voltage spikes.
The unit's internal lead-acid battery system typically recharges within 1.5 hours, minimizing downtime between outages. An integrated web/SNMP management card enables network-based control, while Energy Star compliance reflects its efficient operation. The UPS includes a 10-foot NEMA L6-30P input cord for flexible placement relative to power sources. Its double-conversion design ensures zero transfer time during power events, making it suitable for environments where even brief interruptions could cause data loss or equipment damage.
Key Product Advantages
This UPS provides enterprise-grade power protection with features designed for reliability and manageability in demanding environments.
Zero Transfer Time
Double-conversion technology eliminates transfer time during power events, ensuring continuous operation for critical devices without interruption.
- Ideal for sensitive servers and medical equipment
- Prevents data loss and hardware stress
Scalable Runtime
Support for up to 10 external APC SRT192RMBP battery packs allows for extended backup times to meet specific runtime requirements.
- Flexible for growing infrastructure needs
- Maintains uptime during prolonged outages
Integrated Management
The included network management card provides remote monitoring, configuration, and graceful shutdown capabilities for physical and virtual systems.
- 1-year secure subscription included
- Manages servers, VMs, and HCI clusters
Deployment / Use Cases
This 5.4kVA rackmount UPS is suited for environments where power quality and availability are non-negotiable. Its capacity and form factor make it a fit for centralized protection of server racks, network closets, or industrial control systems. Typical applications include protecting voice/data network equipment, medical lab instruments, light industrial machinery, and storage arrays. The rack/tower convertible design offers installation flexibility, while the NEMA L6-20R and L6-30R outlets accommodate standard IT and industrial power cords.
In data centers, this UPS can protect a full rack of servers and networking gear, ensuring business continuity during power outages. For medical facilities, it provides clean power to sensitive diagnostic equipment, preventing disruptions that could affect patient care. In industrial settings, it safeguards control systems and machinery from voltage fluctuations. The embedded network management card allows IT staff to monitor power status remotely and initiate graceful shutdowns of physical servers, virtual machines, and hyper-converged infrastructure clusters when necessary.
Data Center Server Racks
Provides clean, uninterrupted power to rack-mounted servers and storage, supporting business continuity and preventing data corruption.
Network Infrastructure Hubs
Ensures routers, switches, and communication hardware remain online during power fluctuations, maintaining network availability.
Physical Profile
The unit features a black, rack-mountable enclosure measuring 5.12" (130 mm) in height, 17.01" (432 mm) in width, and 28.31" (719 mm) in depth, occupying 3U of standard 19-inch rack space. Its substantial weight of 123 lb reflects a robust construction with internal batteries. The package includes all necessary rack mounting brackets, hardware, and support rails for secure installation. The compact 3U height maximizes rack space efficiency, while the depth accommodates internal components and battery capacity without excessive protrusion.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 5.12" (130 mm)
- Weight
- 123 lb (55791.86 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package contains all components required for immediate deployment and management.
Highlights
- 5.4kVA/4.25kW double-conversion online pure sine wave UPS
- 3U rackmount form factor with included rail kit for rack/tower convertible installation
- 208V AC input and output with zero transfer time for critical devices
- Four NEMA outlets: 2 x L6-20R and 2 x L6-30R
- Embedded network management card for remote monitoring and graceful shutdown
- SmartSlot for additional communication and expansion options
- Supports up to 10 external battery packs (SRT192RMBP) for extended runtime
- Energy Star compliant and RoHS environmental compliance
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KRMXLT |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 5000VA RM 208V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 5.40 kVA |
| Load Capacity (Watt) | 4.25 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 3U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 123 lb (55791.86 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 5000VA RM 208V Documentation CD Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable User manual Warranty card Web/SNMP management card |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
