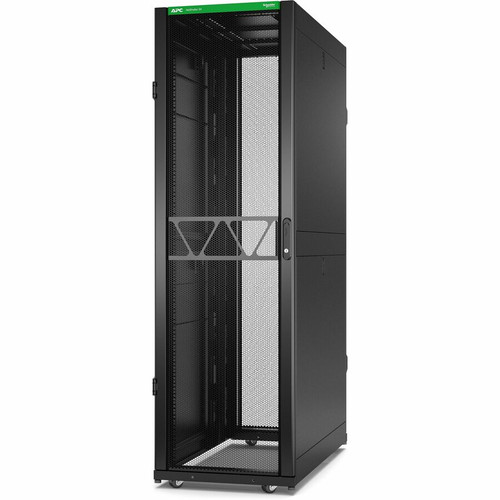

APC by Schneider Electric AR3300B2 NetShelter SX Server Rack Gen 2 - 42U Enclosed Cabinet - 1991H x 600W x 1200D mm - Black with Sides
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NetShelter SX Gen 2 rack is engineered for maximum equipment density and organization. The internal rack space adheres to the standard 19-inch width, with a usable depth of 41.26 inches (1048 mm) to accommodate deep servers and networking gear. The cabinet's external footprint measures 23.62 inches wide by 47.24 inches deep, a compact form factor that optimizes floor space in crowded data halls.
A key technical advancement in this generation is the significantly increased load-bearing capacity. The static weight capacity supports up to 4000 pounds of stationary equipment, while the dynamic (rolling) capacity is rated for 2250 pounds, ensuring stability during relocation or maintenance. Integrated cable management channels and a perforated door design are standard, promoting organized routing and consistent airflow to prevent thermal hotspots.
Key Product Advantages
The NetShelter SX Gen 2 rack consolidates space, security, and cooling into a single, reliable enclosure. Its design prioritizes both the protection of valuable hardware and the efficiency of data center operations.
Enhanced Load Capacity & Stability
The second-generation frame supports substantially higher static (4000 lb) and dynamic (2250 lb) weight limits compared to earlier models. This robustness is critical for housing today's heavier, high-performance servers and storage arrays without compromise.
- Supports dense AI and compute server configurations
- Stable platform for sensitive networking equipment
Optimized Thermal Management
The perforated front and rear doors, combined with strategic ventilation, facilitate passive airflow. This design helps exhaust heat from installed equipment efficiently, contributing to system reliability and potentially reducing cooling costs.
- Perforated door design for unimpeded airflow
- Helps maintain optimal operating temperatures
Deployment-Ready Convenience
The rack ships with pre-installed casters for mobility, leveling feet for stability on uneven floors, and keyed-alike locks for doors and side panels. This comprehensive package minimizes setup time and ancillary purchases.
- Includes casters, leveling feet, and mounting hardware
- Keyed-alike security for streamlined access control
Deployment / Use Cases
The 42U NetShelter SX cabinet is versatile enough for a range of professional IT environments. Its primary application is in centralized data centers or server rooms where equipment density, physical security, and cable organization are paramount.
It is equally suitable for network operations centers (NOCs), telecommunications closets, and edge computing locations. The enclosed design makes it ideal for environments with dust concerns or where unauthorized physical access must be prevented. The rack's compatibility with a wide ecosystem of APC accessories, including vertical power distribution units (PDUs) and cooling units, allows for tailored solutions that scale with your infrastructure needs.
Physical Profile
The rack presents a professional, unified appearance with its all-black steel finish. The external dimensions provide a substantial footprint for stability, while the inclusion of four swiveling casters with locking brakes allows for precise positioning during installation and for occasional reconfiguration. The side panels are removable for easy access during cable work or maintenance, and the entire structure is designed for straightforward integration into rows of cabinets using optional baying hardware.
- Width
- 23.62" (600 mm)
- Depth
- 47.24" (1199.90 mm)
- Height
- 78.39" (1991.11 mm)
- Weight
- 2250.04 lb (1020600 g)
What's in the Box
The rack ships as a complete kit, including all necessary components for immediate deployment.
Highlights
- 42U enclosed server rack (Gen 2) for high-density IT equipment.
- Black steel construction with included side panels for security and dust protection.
- High static weight capacity of 4000 lb for heavy server and storage loads.
- Features cable management and a perforated door for organized airflow.
- Pre-installed casters and leveling feet for mobility and stability.
- TAA compliant and meets RoHS, China RoHS, and REACH environmental standards.
- Includes keyed-alike locking doors and side panels for access control.
- Backed by a 5-year limited warranty from APC by Schneider Electric.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR3300B2 |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter SX |
| Product Name | NetShelter SX Server Rack Gen 2, 42U, 1991H x 600W x 1200D mm, with Sides, Black |
| Packaged Quantity | 1 |
| Product Type | Rack Cabinet |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Server,Equipment,Networking,Data Center |
| Ventilation | Yes |
| Features | Cable Management,Perforated Door |
| Mounting Preference | No Preference |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Dynamic/Rolling Weight Capacity | 2250.04 lb (1020600 g) |
| Static/Stationary Weight Capacity | 4000.07 lb (1814400 g) |
| Height | 78.39" (1991.11 mm) |
| Width | 23.62" (600 mm) |
| Depth | 47.24" (1199.90 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 41.26" (1048 mm) |
| Weight (Approximate) | 288.89 lb (131040 g) |
| Miscellaneous | |
| Package Contents | NetShelter SX Server Rack Gen 2, 42U, 1991H x 600W x 1200D mm, with Sides, Black Baying Hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting Hardware Pre-installed casters Side Panels |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the main difference between the NetShelter SX Gen 1 and Gen 2 racks?
The second generation (Gen 2) features a reinforced design with significantly higher weight capacities—4000 lb static and 2250 lb dynamic—compared to previous models. It also incorporates design improvements for better overall airflow and thermal management within the enclosed cabinet.
Does this 42U rack come with side panels?
Yes, the APC NetShelter SX Server Rack Gen 2 includes side panels as part of the standard package. This makes it an enclosed cabinet solution right out of the box, providing immediate security, dust protection, and a finished appearance.
What is the usable internal depth for mounting equipment?
The usable rack depth, where you mount your servers and devices, is 41.26 inches (1048 mm). This is the space between the front and rear mounting rails, designed to accommodate standard and deep-depth enterprise IT equipment.
Is the rack easy to move once assembled?
Yes, the cabinet comes from the factory with four pre-installed casters. These allow the fully loaded rack (up to its dynamic weight capacity of 2250 lb) to be rolled into position. The casters include locking brakes to secure the rack in place once deployed.
What kind of security features does this server cabinet include?
The rack includes keyed-alike locks for both the front/rear perforated doors and the removable side panels. This means one key operates all locking points, simplifying access management. The enclosed design itself is a primary security feature, preventing casual physical access to sensitive hardware.
What certifications and compliance does this rack meet?
This APC rack is TAA (Trade Agreements Act) compliant, making it suitable for U.S. government procurement. It also meets key environmental standards: Restriction of Hazardous Substances (RoHS), China RoHS, and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals).
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What performance, throughput, or capacity detail stands out?
The listed power specification is 2250.04 lb (1020600 g), which helps position the unit for the right load level and installation role.
