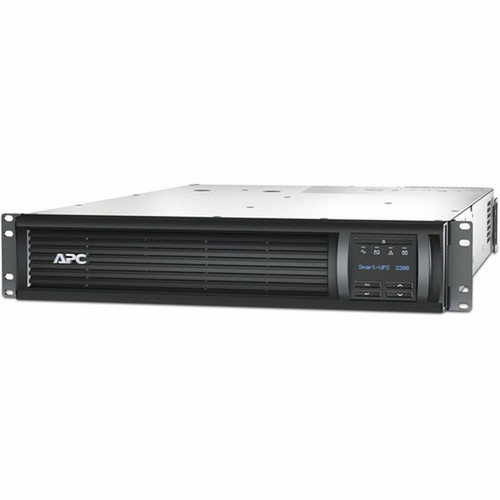

APC by Schneider Electric SMT2200RMUS Smart-UPS 2200VA LCD RM 2U 120V US - 1. 92 kVA/1. 98 kW Line Interactive Rackmount UPS with 8 Outlets - AVR - Pure
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS model operates on a line-interactive topology with automatic voltage regulation, correcting under- and over-voltage conditions without switching to battery. It outputs a pure sine wave, essential for powering active PFC power supplies found in modern servers and network equipment. The unit provides 530 joules of surge energy protection and includes both USB and RS-232 connectivity for management and monitoring.
Battery performance is characterized by 5 minutes of runtime at full load (1.98 kW) and 16 minutes at half load, with hot-swappable capability for maintenance without downtime. Electrical specifications include a single-phase input, 8-foot power cord, and consistent 120V AC output. The integrated LCD displays real-time status, load levels, and battery health, while environmental compliance includes TAA and RoHS certifications.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This UPS combines high power density in a compact 2U rack space with intelligent features that enhance reliability and manageability. The line-interactive design with AVR ensures consistent voltage output, reducing battery wear and extending runtime during brownouts. Hot-swappable batteries allow for replacement without powering down connected equipment, minimizing disruption in 24/7 environments.
Management and Monitoring
The LCD provides at-a-glance status, while PowerChute Serial Edition software enables automated shutdowns, event logging, and runtime management via USB or serial cable.
- LCD for real-time metrics
- USB and RS-232 connectivity
- Graceful shutdown capability
Outlet Flexibility and Protection
Eight outlets with mixed NEMA configurations support diverse equipment loads, and 530J surge protection safeguards against spikes.
- 2 x NEMA 5-20R, 6 x NEMA 5-15R
- Surge protection for all outlets
- Single-phase power distribution
Deployment / Use Cases
This Smart-UPS is ideal for rack-mounted IT infrastructure where space efficiency and reliable power are critical. Its 1.92 kVA capacity suits mid-range server setups, network storage arrays, VoIP systems, and retail POS environments, providing enough runtime for orderly shutdowns or short-term continuity.
Common deployments include data center racks, network closets, and server rooms supporting business applications, where the 2U footprint maximizes rack density. The pure sine wave output ensures compatibility with servers, switches, and storage devices, while AVR handles voltage fluctuations common in commercial power grids. For environments requiring centralized management, the serial and USB interfaces integrate with existing monitoring systems.
Server and Storage Protection
Provides backup power for rack servers, NAS units, and SAN arrays, ensuring data integrity during outages with clean sine wave output.
Network and VoIP Support
Powers network switches, routers, and VoIP equipment in closets or small offices, with enough runtime to maintain connectivity during brief interruptions.
Physical Profile
The UPS features a black, rack-mountable enclosure measuring 3.39" (86 mm) in height, 18.90" (480 mm) in width, and 26.89" (683 mm) in depth, occupying 2U of standard rack space. Weighing approximately 93.28 lb (42311.10 g), it includes integrated rack mounting brackets and support rails for secure installation. The compact design optimizes rack real estate while providing substantial power capacity, with front-panel LCD and controls for easy access in dense configurations.
- Width
- 18.90" (480 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 93.28 lb (42311.10 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1.92 kVA/1.98 kW line-interactive UPS with pure sine wave output
- 2U rackmount form factor for space-efficient deployment in standard racks
- Eight outlets: 2 x NEMA 5-20R and 6 x NEMA 5-15R for flexible equipment connections
- Automatic Voltage Regulation (AVR) corrects utility voltage without battery use
- Hot-swappable, spill-proof lead-acid batteries for maintenance without downtime
- LCD interface displays real-time status, load, and battery information
- Includes PowerChute Serial Edition software for graceful shutdowns via USB/serial
- Energy Star compliant and RoHS environmental standards
- 3-year UPS warranty with 2-year battery coverage
- Typical battery recharge time of 3 hours
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200RMUS |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA LCD RM 2U 120V US |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 2 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 18.90" (480 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 93.28 lb (42311.10 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 2200VA LCD RM 2U 120V US CD with software Documentation CD Rack mounting brackets Rack mounting support rails Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | India |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS provides 1.92 kVA (1920 VA) and 1.98 kW (1980 watts) of line-interactive power capacity. It delivers pure sine wave output suitable for servers, storage, and networking equipment with active PFC power supplies, ensuring stable operation during outages or voltage fluctuations.
How many outlets does this rackmount UPS have, and what types are they?
The unit includes eight NEMA outlets: two 5-20R and six 5-15R receptacles. This mix supports a variety of equipment, from servers requiring 20-amp connections to standard networking devices, with all outlets providing battery backup and surge protection up to 530 joules.
What is the runtime at full and half load for this UPS?
At full load (1.98 kW), the backup runtime is 5 minutes, while at half load (0.99 kW), it extends to 16 minutes. These runtimes allow for orderly shutdowns of connected equipment or short-term continuity during power interruptions, with actual times varying based on load and battery condition.
Is the battery hot-swappable, and how long does recharging take?
Yes, the batteries are hot-swappable, meaning they can be replaced without powering down the UPS or connected devices, minimizing downtime in critical environments. After a full discharge, the typical recharge time to 90% capacity is 3 hours, ensuring quick recovery for subsequent outages.
What management features are included with this Smart-UPS?
The UPS features an LCD for real-time monitoring of status, load, and battery health. It includes USB and RS-232 ports for connectivity, along with PowerChute Serial Edition software that enables graceful shutdowns, event logging, and runtime management on connected systems, enhancing overall reliability.
What are the physical dimensions and rack requirements for this unit?
The UPS measures 3.39" (86 mm) in height, 18.90" (480 mm) in width, and 26.89" (683 mm) in depth, occupying 2U of standard rack space. It weighs approximately 93.28 lb (42311.10 g) and includes rack mounting brackets and support rails for secure installation in data center or server room racks.
What power capacity is listed for this UPS?
The listed power specification is 1.92 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
