APC by Schneider Electric SC500RM1U APC Smart-UPS - 500VA/300W Line Interactive Rackmount UPS - 1U Short Depth - 120V - 4x NEMA 5-15R Outlets - 5-Hour
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS employs AVR technology to correct minor voltage fluctuations without switching to battery, extending runtime and battery life. The 500VA/300W capacity supports typical loads for small server nodes, network gear, or converged infrastructure. Input and output operate at 120V AC single phase, with a stepped approximated sine wave suitable for active PFC power supplies and sensitive electronics.
Management capabilities include both USB and serial network interfaces for integration with PowerChute management software. The lead-acid battery is user-replaceable and typically recharges within five hours after a full discharge. The unit carries ENERGY STAR 2.0 certification, reflecting its energy-efficient design.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.

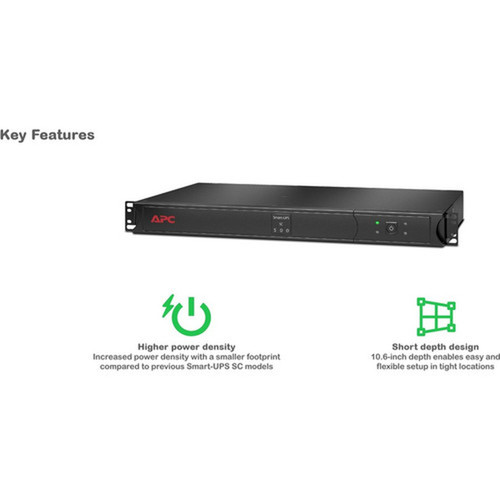

Key Product Advantages
The SC500RM1U combines rack-optimized design with intelligent power management for environments where uptime and space are equally important. Its short-depth chassis allows for improved cable management and airflow in densely populated racks.
Rack-Optimized Form Factor
The 1U height and reduced depth fit standard 19-inch racks while preserving space for adjacent equipment and cable routing.
- 1U rack height
- Short-depth design
- Black finish
Comprehensive Power Protection
Line-interactive topology with AVR ensures clean, regulated power for connected devices, reducing wear on internal components.
- Automatic voltage regulation
- 400-joule surge protection
- Stepped approximated sine wave output
Integrated Management
USB and network interfaces enable remote monitoring, graceful shutdowns, and battery health tracking via PowerChute software.
- USB and serial connectivity
- PowerChute Serial Edition included
- LED status indicators
Deployment / Use Cases
This UPS is tailored for small to medium business IT infrastructure, network edge deployments, and departmental server rooms. Its 500VA capacity and rack-mountable form factor make it ideal for protecting hyperconverged infrastructure nodes, network switches, and virtualization hosts in space-constrained environments.
Common applications include securing back-office servers, point-of-sale systems, telecommunications equipment, and network devices in IDF/MDF closets. The short-depth design is particularly valuable in cabinets where rear clearance is limited, allowing for efficient use of rack space without compromising cable management.
Network Closet & Edge Deployments
Protect switches, routers, and access points in distributed network closets where power quality may be inconsistent.
Server & Virtualization Support
Provide runtime for graceful shutdown of physical servers or hyperconverged nodes during extended power outages.

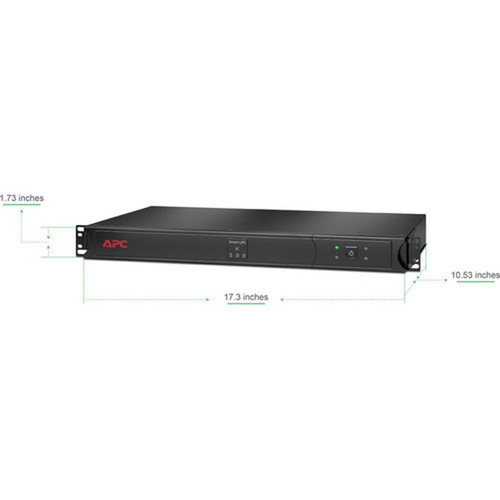

Physical Profile
The UPS measures 1.73 inches in height, 17.32 inches in width, and 10.55 inches in depth, occupying a single rack unit (1U). Its short-depth profile is engineered for standard 19-inch racks, offering easier installation and improved rear access for cabling. The black finish blends with typical rack hardware, and the approximate weight of 17.86 pounds ensures stable mounting without excessive load on rack rails.
- Width
- 17.32" (440 mm)
- Depth
- 10.55" (268 mm)
- Height
- 1.73" (44 mm)
- Weight
- 17.86 lb (8101.16 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
The package includes the APC Smart-UPS SC500RM1U unit and PowerChute Serial Edition management software.
Package contents include Powerchute Serial Edition. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 500VA/300W line-interactive UPS with automatic voltage regulation (AVR)
- 1U rack-mountable short-depth design for space-efficient installation
- Four NEMA 5-15R outlets provide power for multiple devices
- USB and network interfaces for remote management and graceful shutdowns
- Typical battery recharge time of five hours with user-replaceable lead-acid battery
- Stepped approximated sine wave output compatible with active PFC power supplies
- LED status indicators for on-line, on-battery, replace battery, and overload conditions
- Includes PowerChute Serial Edition software for monitoring and shutdown control
- ENERGY STAR 2.0 certified for energy efficiency
- Backed by a 2-year limited warranty covering both UPS and battery
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SC500RM1U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Application/Usage | Business,Electronic,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),Home/Office,POS,Network Device,Switch,IT |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 400 J |
| Display & Graphics | |
| Display | LED |
| Controls/Indicators | |
| Status Indicators | LED Indicators: On-Line On-Battery Replace Battery Overload Indicators |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 5 Hour |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 10.55" (268 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 17.86 lb (8101.16 g) |
| Miscellaneous | |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS has a load capacity of 500 VA (volt-amps) and 300 watts. It is designed to support typical loads for small servers, network switches, or edge computing equipment, providing both battery backup and surge protection during power disturbances.
How many outlets does this rackmount UPS have?
The unit includes four NEMA 5-15R outlets, all of which provide both battery backup and surge protection. These outlets are suitable for standard North American plugs, allowing you to connect multiple devices such as servers, switches, or networking gear directly to the UPS.
What is the input and output voltage for this UPS?
Both input and output operate at 120 volts AC, single phase. This matches standard North American electrical systems, making the UPS compatible with typical office and data center power infrastructure without requiring voltage transformers or adapters.
How long does the battery take to recharge?
The lead-acid battery typically recharges within five hours after a complete discharge. This recharge time ensures the UPS is ready to provide backup power again relatively quickly, minimizing downtime between power events. The battery is also user-replaceable for easy maintenance.
What management interfaces are available?
The UPS offers both USB and serial network (RJ-45) interfaces. These allow integration with APC's PowerChute management software, enabling features like remote monitoring, graceful shutdown of connected systems, battery health tracking, and event logging for proactive power management.
Is this UPS ENERGY STAR certified?
Yes, this model carries ENERGY STAR 2.0 certification. This indicates it meets strict energy efficiency guidelines, reducing power consumption during normal operation and helping lower electricity costs while maintaining reliable backup protection for connected equipment.
What power capacity is listed for this UPS?
The listed power specification is 500 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 4, which helps buyers understand how many connected devices it can support in its intended deployment.
