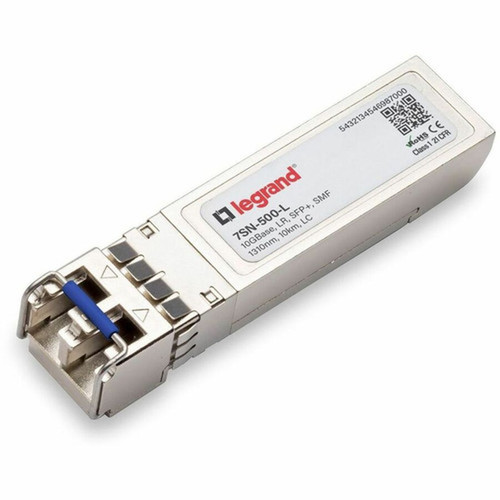

Ortronics 7SN-500-A Accedian SFP+ Module - 10GBase-LR - LC Duplex - 10 km - Single-mode
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for optical network and data networking applications, this transceiver utilizes 10 Gigabit Ethernet technology with a wavelength optimized for long-reach single-mode fiber. The LC duplex connector interface provides a secure, low-loss connection compatible with standard fiber patch panels and infrastructure.
The module operates on single-mode fiber, which uses a single wavelength of light to carry data over extended distances with minimal signal degradation. This makes it ideal for connecting geographically dispersed network segments or building interconnects where high bandwidth and reliability are critical.
Key Product Advantages
This SFP+ module offers several distinct advantages for network deployments requiring high-speed, long-distance fiber connectivity.
Extended Reach Capability
Supports transmission up to 10 kilometers on single-mode fiber, enabling connections between buildings or across campuses without intermediate equipment.
- Ideal for metro Ethernet and WAN links
- Reduces need for signal repeaters
Standards Compliance
Fully compliant with 10GBase-LR specifications and RoHS environmental standards, ensuring interoperability and regulatory adherence.
- Guaranteed compatibility with 10GbE switches
- Environmentally responsible manufacturing
Compact Design
The small form factor allows high-density deployment in network equipment, maximizing port utilization while maintaining optimal thermal performance.
- Saves rack space
- Supports high-port-count switches
Deployment / Use Cases
The Ortronics Accedian SFP+ Module is versatile enough for various networking scenarios where 10GbE fiber connectivity is required.
In data center environments, it connects top-of-rack switches to aggregation layers or storage arrays. For enterprise networks, it establishes high-speed links between separate buildings or floors. Service providers use it for last-mile fiber connections or to extend network reach in metropolitan areas.
Data Center Interconnect
Connect servers to core switches or implement spine-leaf architectures with reliable 10Gbps fiber links.
Campus Network Backbone
Extend network segments across multiple buildings while maintaining high throughput for voice, video, and data applications.
Physical Profile
The module measures 0.50 inches in height, 0.55 inches in width, and 2.30 inches in depth, conforming to the standard SFP+ mechanical specification. This compact size ensures compatibility with most SFP+ cages and allows for dense port configurations in networking hardware.
- Width
- 0.55" (13.90 mm)
- Depth
- 2.30" (58.40 mm)
- Height
- 0.50" (12.60 mm)
Highlights
- 10GBase-LR SFP+ optical transceiver for 10 Gigabit Ethernet networks
- LC duplex connector interface for single-mode fiber optic cabling
- Maximum reach of 10 kilometers (6.21 miles) on single-mode fiber
- Hot-pluggable design for flexible installation and maintenance
- Supports data transfer rates up to 10 Gbps
- RoHS compliant for environmentally responsible operation
- Compact dimensions for high-density deployments
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 7SN-500-A |
| Brand Name | Approved Networks |
| Product Name | Accedian SFP+ Module |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.50" (12.60 mm) |
| Width | 0.55" (13.90 mm) |
| Depth | 2.30" (58.40 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable does this SFP+ module require?
This module requires single-mode fiber optic cable with LC duplex connectors. Single-mode fiber uses a single wavelength of light to transmit data over longer distances with minimal signal loss, making it suitable for reaches up to 10 kilometers.
What is the maximum data transfer rate supported?
The module supports a maximum data transfer rate of 10 gigabits per second (10 Gbps) using 10 Gigabit Ethernet technology. This provides high-bandwidth connectivity for demanding applications like video streaming, large file transfers, and virtualized environments.
What is the operating distance of this transceiver?
It supports a maximum distance of 10 kilometers (approximately 6.21 miles) over single-mode fiber. This long-reach capability makes it ideal for connecting network segments across buildings, campuses, or metropolitan areas without requiring signal regeneration equipment.
Is this SFP+ module hot-pluggable?
Yes, like standard SFP+ transceivers, this module is hot-pluggable. This allows you to install or replace it without powering down the networking equipment, minimizing downtime during maintenance or upgrades.
