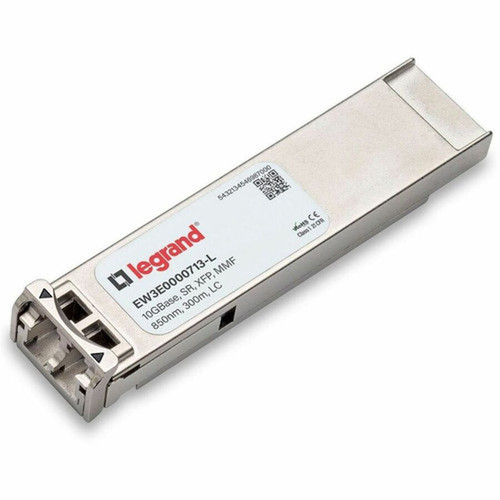

Ortronics EW3E0000713-A Citrix XFP Module - 10GBase-SR LC Duplex 10GbE Multimode 0. 30 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the XFP form factor, this transceiver operates with 10GBase-SR networking standards, which are optimized for multimode fiber environments. The module uses an LC duplex interface, providing a single port for bidirectional data transmission over optical fiber.
It supports multimode fiber media, which is ideal for carrying data and transmitting audio/video applications within building-scale distances. The 10 Gbit/s maximum data rate ensures high-bandwidth connectivity for demanding network segments.
Key Product Advantages
This XFP module combines high-speed performance with robust fiber optic reliability, offering a practical solution for upgrading or expanding 10GbE network capacity.
High-Speed Data Transfer
Delivers up to 10 Gbps throughput using 10GBase-SR technology, enabling fast data transfers for network-intensive applications.
- 10 Gigabit Ethernet support
- Minimizes network bottlenecks
Short-Reach Fiber Optimization
Designed for multimode fiber deployments up to 0.30 km, making it ideal for in-building and data center interconnects.
- 0.30 km maximum distance
- Multimode fiber compatibility
Secure and Durable Connectivity
Features an LC duplex connector for reliable fiber optic connections, reducing signal loss and ensuring stable performance.
- LC duplex interface
- Durable optical fiber support
Deployment / Use Cases
The Ortronics Citrix XFP Module is tailored for optical network and data networking environments that require high-speed, short-reach fiber connectivity.
Common use cases include data center server-to-switch links, enterprise backbone connections, and storage area networks (SANs) where 10GbE over multimode fiber is standard. Its compatibility with Citrix platforms makes it a suitable choice for virtualized infrastructure and cloud networking deployments.
Data Center Interconnects
Connect servers, switches, and storage devices within a data center using multimode fiber for high-bandwidth, low-latency communication.
Enterprise Network Backbone
Upgrade network segments to 10GbE to support bandwidth-intensive applications, video conferencing, and large file transfers across buildings.
Physical Profile
The module has a compact design with dimensions of 0.33" (8.50 mm) height, 0.72" (18.35 mm) width, and 3.07" (78 mm) depth, allowing for easy integration into compatible networking equipment. Its small footprint supports high-density installations in switches and routers.
- Width
- 0.72" (18.35 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- XFP form factor optical transceiver module for 10GbE networking
- 10GBase-SR technology delivers up to 10 Gbps data transfer rate
- LC duplex connector ensures secure fiber optic connections
- Supports multimode fiber media for short-reach deployments
- Maximum distance of 0.30 km (0.19 mile) over optical fiber
- Hot-pluggable design for easy installation and maintenance
- Compatible with Citrix networking platforms
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | EW3E0000713-A |
| Brand Name | Approved Networks |
| Product Name | Citrix XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What type of optical transceiver module is this?
This is an XFP (10 Gigabit Small Form Factor Pluggable) module. It is a hot-pluggable optical transceiver designed for 10 Gigabit Ethernet applications, supporting 10GBase-SR technology over multimode fiber.
What is the maximum data transfer rate and distance supported?
The module supports a maximum data transfer rate of 10 Gbit/s (10 Gbps) using 10 Gigabit Ethernet. It is optimized for short-reach deployments with a maximum supported distance of 0.30 km (0.19 mile) over multimode fiber.
What connector type and fiber mode does this module use?
It uses an LC duplex connector for fiber optic connections. The module supports multimode fiber media, which is commonly used for short-distance data transmission within buildings or data centers.
Is this module compatible with Citrix networking equipment?
Yes, this XFP module is designed for compatibility with Citrix platforms. It is intended for use in Citrix networking environments that require 10GbE optical connectivity over multimode fiber.
