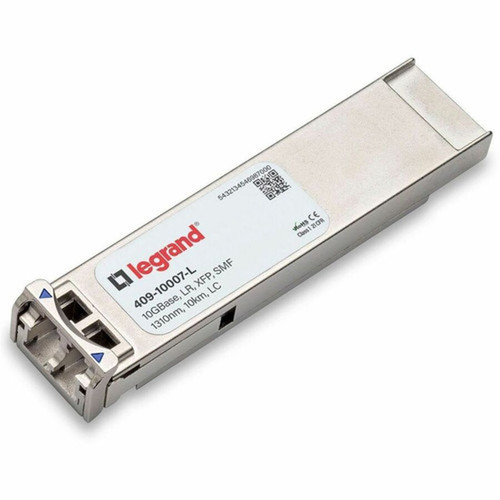

Ortronics 409-10007-A Dell XFP Module - 10GBase-LR LC Duplex Single-mode 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP module operates on the 10 Gigabit Ethernet standard, providing a maximum data transfer rate of 10 Gbit/s. It utilizes 10GBase-LR (Long Reach) technology, which is optimized for single-mode fiber optic cables to achieve a transmission distance of up to 10 kilometers with minimal signal degradation.
The module features an LC duplex connector interface, ensuring a secure and low-loss connection to fiber optic cabling. It is designed for optical network and data networking applications, supporting full-duplex operation for efficient bidirectional data flow.
Key Product Advantages
This transceiver offers several distinct advantages for network deployments requiring high bandwidth and extended reach. Its compatibility with Dell networking equipment ensures seamless integration into existing infrastructures, reducing compatibility concerns and simplifying procurement.
Long-Reach Performance
With a 10 km reach over single-mode fiber, this module is ideal for connecting geographically dispersed network segments, such as between buildings or across campuses, without the need for intermediate signal boosters.
- 10GBase-LR technology
- Low signal loss over distance
- Ideal for backbone links
Reliable Fiber Connectivity
The LC duplex connector provides a robust and precise interface for single-mode fiber optic cables, ensuring stable connections and optimal light transmission for consistent network performance.
- Secure LC interface
- Single-mode fiber optimized
- Low insertion loss
Deployment / Use Cases
This XFP module is suited for a variety of high-speed networking scenarios where reliable, long-distance optical links are required. It is commonly deployed in data center interconnects, enterprise network backbones, and telecommunications infrastructure to aggregate traffic and extend network reach.
Typical use cases include connecting core switches to distribution switches across different floors or buildings, linking storage area networks (SANs) to servers, and providing high-bandwidth uplinks for network aggregation points. Its single-mode fiber support makes it particularly effective for outdoor or extended indoor runs where signal integrity over distance is critical.
Physical Profile
The module has a compact design with dimensions of 0.33" (8.40 mm) in height, 0.64" (16.30 mm) in width, and 3.07" (78 mm) in depth, allowing for high-density installations in network equipment. Its small form factor is standard for XFP transceivers, facilitating easy hot-swapping in compatible ports without disrupting network operations.
- Width
- 0.64" (16.30 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.40 mm)
Highlights
- Dell-compatible XFP transceiver module for easy integration
- 10GBase-LR technology supports 10 Gbit/s data transfer rates
- LC duplex connector for reliable single-mode fiber optic connections
- Maximum reach of 10 kilometers over single-mode fiber
- Hot-pluggable design for easy installation and maintenance
- Ideal for data center, enterprise, and service provider networks
- RoHS compliant and environmentally friendly
- Backed by a lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 409-10007-A |
| Brand Name | Approved Networks |
| Product Name | Dell XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.40 mm) |
| Width | 0.64" (16.30 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this XFP module?
This XFP module supports a maximum data transfer rate of 10 Gbit/s, utilizing 10 Gigabit Ethernet technology. It is designed for high-bandwidth applications such as data center interconnects and network backbones, ensuring fast and efficient data transmission over optical fiber.
What type of fiber optic cable is compatible with this transceiver?
The module is compatible with single-mode fiber optic cables, which are optimized for long-distance transmission with minimal signal loss. It uses an LC duplex connector interface, providing a secure connection suitable for high-performance optical networking up to 10 kilometers.
What is the reach distance supported by this 10GBase-LR module?
This 10GBase-LR XFP module supports a maximum distance of 10 kilometers (approximately 6.21 miles) over single-mode fiber. This makes it ideal for extending network links between buildings, across campuses, or in metropolitan area networks without requiring signal regeneration.
Is this transceiver hot-pluggable?
Yes, as an XFP module, it is designed to be hot-pluggable, allowing for installation or replacement without powering down the network equipment. This feature minimizes downtime and facilitates easy maintenance or upgrades in live network environments.
