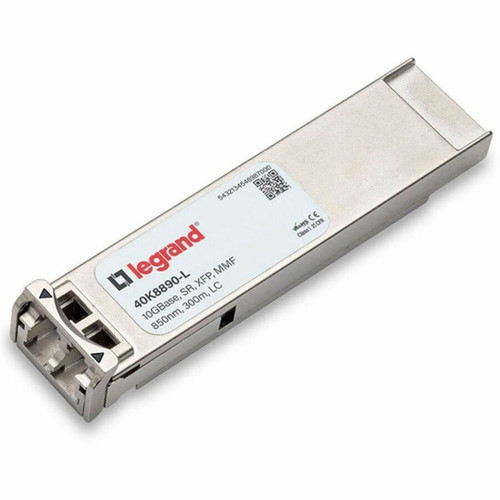

Ortronics 40K8890-A IBM XFP Module - 10GBase-SR LC Duplex 10GbE Multi-mode Fiber Optic Transceiver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP module implements the 10GBase-SR standard for short-reach multi-mode fiber applications. The LC duplex connector provides a secure optical interface that minimizes signal loss and maintains signal integrity across the supported distance.
The module operates at 850 nm wavelength, which is standard for 10GBase-SR implementations over multi-mode fiber. With a maximum supported distance of 0.30 kilometers (0.19 miles), this transceiver is ideal for intra-building connections and data center interconnects.
Key Product Advantages
The Ortronics 40K8890-A XFP module provides a cost-effective solution for upgrading network infrastructure to 10 Gigabit speeds without requiring complete fiber plant replacement. Its IBM compatibility ensures seamless integration with existing IBM networking equipment.
High-Speed Connectivity
Delivers full 10 Gigabit Ethernet performance with 10 Gbit/s data transfer rates for bandwidth-intensive applications.
- 10GBase-SR technology
- 10 Gigabit Ethernet compatible
- Minimal latency for real-time applications
Reliable Optical Performance
Engineered for durable performance over multi-mode fiber with minimal signal degradation across the supported distance.
- LC duplex connector for secure connection
- Multi-mode fiber optimization
- 850 nm wavelength operation
Deployment / Use Cases
This XFP module is particularly well-suited for short-distance optical connections within buildings, campuses, or data centers. The 0.30 km maximum distance supports typical intra-building fiber runs while maintaining full 10GbE performance.
Common applications include connecting network switches to servers, linking storage area network components, and establishing high-speed links between network distribution points. The module supports both data networking and optical network applications where reliable, high-bandwidth connectivity is required.
Data Center Interconnects
Connect servers, storage arrays, and network switches within data center environments using multi-mode fiber backbone infrastructure.
Enterprise Network Upgrades
Upgrade existing 1GbE or 4GbE IBM network equipment to 10GbE speeds while utilizing installed multi-mode fiber cabling.
Physical Profile
The XFP module features a compact form factor measuring 0.33" (8.50 mm) in height, 0.72" (18.35 mm) in width, and 3.07" (78 mm) in depth. This standardized XFP size ensures compatibility with XFP slots in networking equipment from various manufacturers.
The module is hot-pluggable, allowing for installation or replacement without powering down the host equipment. The compact dimensions make it suitable for high-density networking environments where space optimization is critical.
- Width
- 0.72" (18.35 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- IBM-compatible XFP optical transceiver module
- 10GBase-SR technology for 10 Gigabit Ethernet
- LC duplex connector interface
- Multi-mode fiber support with 850 nm wavelength
- Maximum 10 Gbit/s data transfer rate
- 0.30 km (0.19 mile) maximum distance
- Hot-pluggable design for easy installation
- RoHS compliant for environmental safety
- Lifetime limited warranty
- Compact XFP form factor
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 40K8890-A |
| Brand Name | Approved Networks |
| Product Name | IBM XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable does this XFP module support?
This Ortronics 40K8890-A XFP module supports multi-mode fiber optic cable. It operates at the 850 nm wavelength, which is standard for 10GBase-SR implementations over multi-mode fiber. The module is optimized for OM3 or OM4 multi-mode fiber types commonly used in data center and enterprise environments for short to medium distance connections.
What is the maximum distance this XFP module can support?
The maximum supported distance for this XFP module is 0.30 kilometers, which equals approximately 0.19 miles. This distance is typical for 10GBase-SR technology over multi-mode fiber, making the module suitable for intra-building connections, data center interconnects, and campus network links where fiber runs are within this range.
Is this XFP module compatible with non-IBM networking equipment?
While this module is specifically coded for IBM compatibility, XFP modules generally follow industry standards. However, compatibility with non-IBM equipment depends on the specific switch or router's support for third-party or coded transceivers. For guaranteed performance, it's recommended to verify compatibility with your specific networking equipment manufacturer before deployment.
What applications is this XFP module best suited for?
This XFP module is ideal for 10 Gigabit Ethernet applications requiring short-distance optical connectivity. Common uses include data center server-to-switch connections, storage area network links, enterprise network backbone upgrades, and inter-building connections within a campus environment. The 10GBase-SR technology makes it particularly suitable for bandwidth-intensive applications where low latency and high throughput are required.
