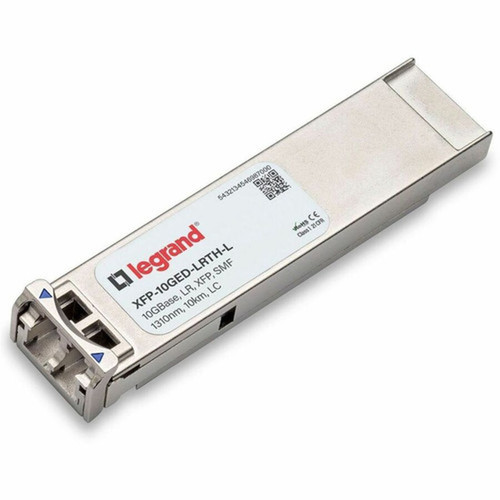

Ortronics XFP-10GED-LRTH-A MRV XFP Module - 10GBase-LR LC Duplex - 10GbE Single-mode Fiber - 10 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP module operates at a maximum data transfer rate of 10 Gbit/s using 10 Gigabit Ethernet technology. It leverages 10GBase-LR specifications to achieve a reach of up to 10 kilometers over single-mode fiber, making it suitable for medium to long-distance network links. The LC duplex connector provides a secure and efficient interface for fiber optic connections.
The module supports optical fiber media exclusively, with single-mode fiber ensuring minimal signal loss and high bandwidth over extended distances. Its hot-pluggable design allows for easy installation and maintenance without disrupting network operations.
Key Product Advantages
The Ortronics MRV XFP Module offers several advantages for network deployments requiring high-speed optical connectivity. Its 10GBase-LR technology ensures efficient data transmission with low latency, while the single-mode fiber support enables reliable performance over distances up to 10 kilometers.
Extended Reach
Supports network links up to 10 km, ideal for connecting geographically dispersed nodes in data centers, campuses, or enterprise networks.
- 10 km maximum distance
- Single-mode fiber optimization
Compliance and Reliability
Meets RoHS environmental standards and includes a lifetime warranty, providing assurance of durability and regulatory adherence.
- RoHS compliant
- Lifetime limited warranty
Deployment / Use Cases
This XFP module is well-suited for a variety of optical networking scenarios. It is commonly deployed in data center interconnects, enterprise backbone networks, and telecommunications infrastructure where 10 Gigabit Ethernet over fiber is required.
Typical use cases include connecting switches and routers across buildings or campuses, extending network reach in metropolitan area networks (MANs), and supporting high-bandwidth applications such as video streaming, large data transfers, and cloud services. Its compatibility with standard XFP slots ensures easy integration into existing network hardware.
Physical Profile
The module features a compact design with dimensions of 0.33 inches in height, 0.64 inches in width, and 3.07 inches in depth. This small form factor allows for high-density installations in networking equipment, optimizing rack space and airflow in data center environments.
- Width
- 0.64" (16.30 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.40 mm)
Highlights
- 10GBase-LR technology for 10 Gigabit Ethernet performance
- LC duplex connector for secure fiber optic connections
- Supports single-mode fiber with up to 10 km reach
- Maximum data transfer rate of 10 Gbit/s
- Hot-pluggable XFP form factor for easy installation
- RoHS compliant for environmental safety
- Lifetime limited warranty for long-term reliability
- Compact dimensions for high-density deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | XFP-10GED-LRTH-A |
| Brand Name | Approved Networks |
| Product Name | MRV XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.40 mm) |
| Width | 0.64" (16.30 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance supported by this XFP module?
The Ortronics MRV XFP Module supports a maximum distance of 10 kilometers (6.21 miles) over single-mode fiber optic cable. This reach makes it suitable for medium to long-distance network links in data centers, campuses, or enterprise environments.
What type of connector does this module use?
This module uses an LC duplex connector, which is a standard interface for fiber optic connections. The LC connector provides a secure and efficient link, commonly used in high-speed networking equipment for its reliability and compact size.
Is this XFP module compatible with single-mode or multimode fiber?
The module is designed for single-mode fiber optic cable. Single-mode fiber supports longer distances with minimal signal loss, making this module ideal for applications requiring extended reach up to 10 km, such as backbone networks or data center interconnects.
What is the data transfer rate of this optical transceiver?
It operates at a maximum data transfer rate of 10 Gbit/s, utilizing 10 Gigabit Ethernet technology. This high-speed performance ensures efficient handling of bandwidth-intensive tasks like video streaming, large file transfers, and cloud-based applications.
