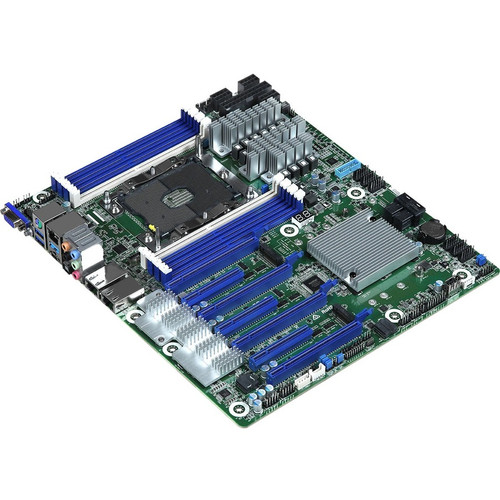

ASRock SSI CEB Workstation Motherboard Intel Socket P Optane Memory Ready Xeon DDR4 Processor Chipset WC621D8A-2T
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 1
Processor Socket: Socket P
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: RDIMM,LRDIMM
Memory Speed Supported: 2933 MHz,2666 MHz,2400 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2500
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 3
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 10
Number of Mini-SAS Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 1
Number of Onboard USB 3.2 Ports: 2
Form Factor: SSI CEB
Width: 12" (304.80 mm)
Depth: 10.50" (266.70 mm)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | WC621D8A-2T |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | WC621D8A-2T |
| Product Name | WC621D8A-2T Workstation Motherboard |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Total Processor Supported | 1 |
| Processor Socket | Socket P |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | RDIMM,LRDIMM |
| Memory Speed Supported | 2933 MHz,2666 MHz,2400 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Number of Mini-SAS Interfaces | 2 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" (304.80 mm) |
| Depth | 10.50" (266.70 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
