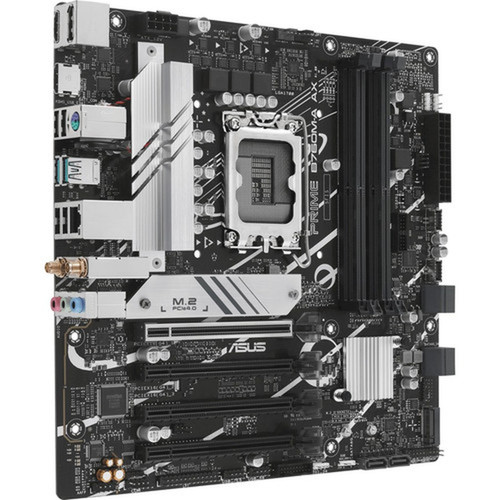

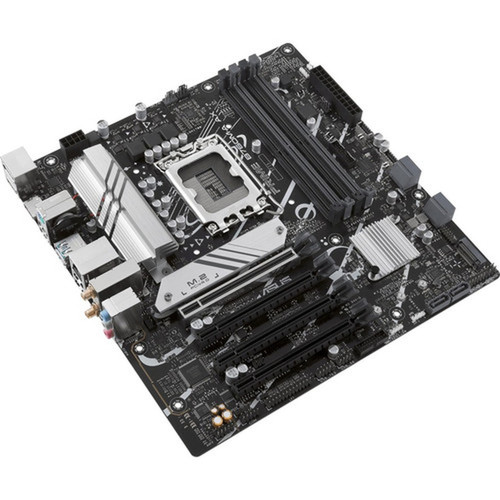

Asus PRIMEB760M-AAX Micro ATX Desktop Motherboard - Intel B760 Chipset - LGA-1700 Socket - DDR5128GB - PCIe 4.0 - Wi-Fi 6E
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The motherboard features Intel's B760 chipset paired with the LGA-1700 socket, compatible with 12th and 13th Generation Intel processors. Memory support includes four DDR5 DIMM slots capable of handling up to 128GB at speeds from 4800 MHz to 7200 MHz, providing a performance uplift over previous DDR4 platforms.
Storage connectivity includes two M.2 interfaces and six SATA 6Gb/s ports with RAID 0, 1, 10, and 5 support for data redundancy or performance configurations. Expansion is handled by four PCIe 4.0 slots, all operating at x16 electrical bandwidth. Onboard video output depends on the installed CPU's integrated graphics, with HDMI and DisplayPort connectors available.
Network & Audio
Dual Ethernet includes a 2.5Gb port and a standard Gigabit port. Wireless connectivity features Wi-Fi 6E (802.11ax) and Bluetooth 5.2. Audio is delivered through a 7.1-channel HD audio codec with an S/PDIF header for digital output.
Key Product Advantages
The PRIME B760M-A AX combines modern standards with practical design for reliable daily use. Its Micro ATX form factor fits most standard cases while offering a full suite of ports and expansion slots typically found on larger boards.
Future-Ready Memory
DDR5 support provides higher bandwidth and efficiency compared to DDR4, with speeds up to 7200 MHz for responsive multitasking and application performance.
- 128GB maximum capacity
- Four DIMM slots
- 4800-7200 MHz speed range
Comprehensive Connectivity
Dual-band Wi-Fi 6E ensures low-latency wireless connections, while 2.5Gb Ethernet offers wired networking at 2.5 times the speed of standard Gigabit Ethernet.
- Wi-Fi 6E with Bluetooth 5.2
- 2.5Gb + Gigabit Ethernet
- Multiple USB 3.2 Gen 2 ports
Deployment / Use Cases
This motherboard suits various desktop computing scenarios where reliability, modern features, and value are priorities. Its balanced specification set makes it adaptable to different user needs without excessive cost.
For office and productivity environments, the board supports efficient processors with ample memory and storage options. The integrated Wi-Fi and dual Ethernet ports simplify network deployment in both wired and wireless setups. Home users building compact systems will appreciate the Micro ATX size, which allows for smaller cases without sacrificing essential connectivity.
Mainstream Desktop Builds
Ideal for general-purpose computers, home offices, and student systems where DDR5 memory, PCIe 4.0 storage, and modern wireless are beneficial but extreme overclocking or multi-GPU configurations are not required.
Entry-Level Gaming & Content Creation
Supports mid-range graphics cards through PCIe 4.0 slots and fast storage via M.2 interfaces. The 2.5Gb Ethernet and Wi-Fi 6E reduce network bottlenecks for online gaming or media streaming.
Physical Profile
The Micro ATX form factor measures 9.6 inches square (243.84 mm x 243.84 mm), fitting standard Micro ATX and larger ATX cases. This compact design includes a reinforced PCIe slot for heavier graphics cards and strategically placed connectors for clean cable management. The board's layout provides adequate spacing for CPU coolers and memory modules while maintaining accessibility to front-panel headers and storage ports.
- Width
- 9.60" (243.84 mm)
- Depth
- 9.60" (243.84 mm)
What's in the Box
The package includes all necessary components for motherboard installation and basic connectivity.
Highlights
- Intel B760 chipset with LGA-1700 socket for 12th/13th Gen CPUs
- Four DDR5 DIMM slots supporting up to 128GB at 4800-7200 MHz
- Two M.2 slots and six SATA 6Gb/s ports with RAID 0/1/10/5 support
- Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for wireless connectivity
- 2.5Gb Ethernet plus Gigabit Ethernet for high-speed wired networking
- Four PCIe 4.0 slots for graphics and expansion cards
- HDMI and DisplayPort outputs for CPU-integrated graphics
- 7.1-channel HD audio with S/PDIF header
- Micro ATX form factor (9.6" square) for compact builds
- Includes Wi-Fi antennas, SATA cables, I/O shield, and installation accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B760M-A AX |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME B760M-A AX |
| Product Name | PRIME B760M-A AX Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen,13th Gen |
| Processor Supported | Core,Pentium Gold,Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 7000 MHz,6800 MHz,7200 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Miscellaneous | |
| Package Contents | PRIME B760M-A AX Desktop Motherboard 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x User guide |
User Manual
FAQ
What processors are compatible with this motherboard?
The motherboard supports 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA-1700 socket. This includes models like Core i9, i7, i5, i3, and entry-level Pentium and Celeron chips. It does not support older generations or AMD processors.
What type of memory does this board support?
It supports DDR5 SDRAM across four DIMM slots, with a maximum capacity of 128GB. Supported speeds range from 4800 MHz to 7200 MHz. The board uses standard unbuffered DIMMs (UDIMMs) and does not support DDR4 memory or registered ECC modules.
How many M.2 and SATA ports are available?
There are two M.2 slots for NVMe or SATA SSDs and six SATA 6Gb/s ports for traditional hard drives or SSDs. The SATA ports support RAID 0, 1, 10, and 5 configurations when used with compatible drives and the Intel chipset's RAID functionality.
What wireless and networking features are included?
The board includes Wi-Fi 6E (802.11ax) for dual-band wireless connectivity and Bluetooth 5.2 for peripheral pairing. Wired networking features a 2.5 Gigabit Ethernet port and a standard Gigabit Ethernet port, providing options for high-speed or backup network connections.
What expansion slots does this motherboard have?
It has four PCI Express 4.0 slots, all configured as x16 slots electrically. These slots support graphics cards, capture cards, network adapters, or other PCIe expansion cards. The Micro ATX form factor limits the physical length of cards but accommodates most standard-sized components.
What is included in the box?
The package contains the PRIME B760M-A AX motherboard, two SATA 6Gb/s cables, a pair of ASUS Wi-Fi moving antennas, an I/O shield, an M.2 rubber package for drive insulation, a screw package for M.2 SSD installation, and a user guide. No thermal paste or additional cables are included.
