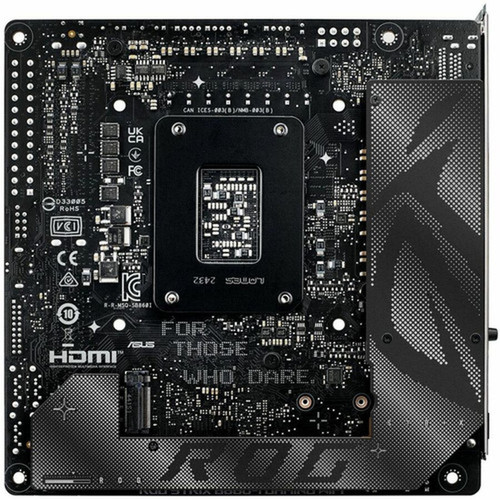

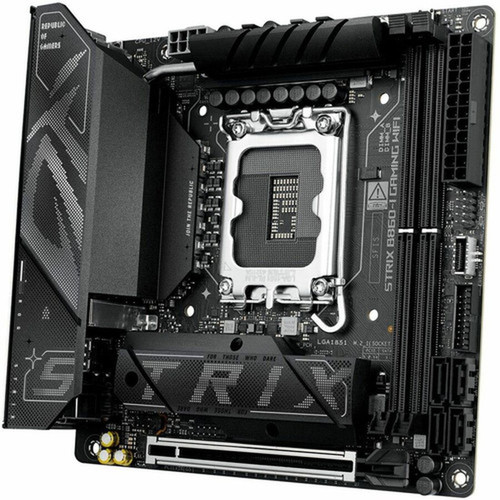

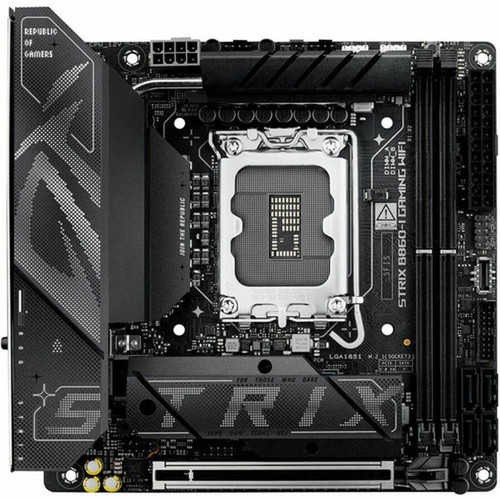

Asus ROG STRIXB860-IGAMINGWIFI Gaming Desktop Motherboard - Intel B860 Chipset - LGA-1851 - Mini ITX - DDR5 9066 MHz - PCIe 5.0 - Wi-Fi 6E
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This motherboard features a robust technical specification designed for modern computing demands. The platform supports a single Intel Core Ultra processor via the LGA-1851 socket, leveraging the Intel B860 chipset for efficient system management and I/O control.
Memory architecture utilizes two DDR5 DIMM slots with support for ECC (Error Checking) memory, enabling configurations up to 128 GB at speeds reaching 9066 MHz. Storage flexibility is provided through four SATA 6Gb/s ports and two M.2 interfaces for NVMe SSDs, with RAID 0, 1, 5, and 10 support for data redundancy or performance.
Relevant factors for this section include AI-powered, Chipset Manufacturer, Chipset Model, Total Processor Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ROG Strix B860-I GAMING WIFI stands out with its combination of compact design and uncompromised feature set. Its Mini-ITX form factor allows for powerful builds in small cases, while still delivering the connectivity and expansion needed for gaming and content creation.
Advanced Connectivity Suite
Equipped with the latest wireless and wired standards, including Wi-Fi 6E (802.11be) for multi-gigabit wireless speeds, Bluetooth 5.4, and a 2.5Gb Ethernet port. A Thunderbolt 4 port offers 40 Gbps data transfer and display output capabilities.
- Wi-Fi 6E for reduced interference
- Thunderbolt 4 for high-speed peripherals
- 2.5Gb Ethernet for fast networking
High-Speed Storage & Graphics
Features PCI Express 5.0 support for next-generation graphics cards and NVMe SSDs, delivering double the bandwidth of PCIe 4.0. Two M.2 slots and four SATA ports provide ample storage options.
- PCIe 5.0 x16 slot
- Dual M.2 for NVMe SSDs
- SATA RAID support
Deployment / Use Cases
This motherboard is engineered for scenarios where space efficiency meets high performance. Its compact Mini-ITX dimensions make it an excellent choice for small-form-factor gaming PCs, home theater PCs (HTPCs), and compact workstation builds where desk space or case size is a primary constraint.
The robust I/O set, including Thunderbolt 4 and high-speed networking, also suits content creators and professionals who require fast data transfer and connectivity in a portable or space-optimized setup. The support for Core Ultra processors and high-speed DDR5 memory ensures it can handle demanding applications and modern games.
Compact Gaming Rig
Ideal for building a powerful gaming PC in a small case like the NZXT H1 or Fractal Design Node 202, leveraging the PCIe 5.0 slot for high-end graphics and the fast memory support for smooth gameplay.
Space-Efficient Workstation
Suited for professional environments where desk space is limited but performance cannot be compromised, supporting content creation, software development, and data analysis tasks with its Core Ultra processor compatibility and Thunderbolt connectivity.
Physical Profile
The motherboard adopts the Mini-ITX form factor, measuring 6.70 inches square (170.18 mm x 170.18 mm). This compact size allows installation in the smallest ITX cases while still accommodating a full PCIe 5.0 x16 slot, dual memory slots, and comprehensive cooling solutions. The board's layout is optimized for airflow and cable management in constrained builds.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.70" (170.18 mm), 6.70" (170.18 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.70" (170.18 mm)
- Depth
- 6.70" (170.18 mm)
What's in the Box
The package includes all necessary components for installation and setup.
Highlights
- Supports Intel Core Ultra processors with LGA-1851 socket
- Mini-ITX form factor for compact PC builds
- DDR5 memory support up to 9066 MHz and 128 GB capacity
- PCI Express 5.0 for next-gen graphics and storage
- Integrated Wi-Fi 6E (802.11be) and Bluetooth 5.4
- Thunderbolt 4 port for 40 Gbps data transfer
- 2.5Gb Ethernet and Gigabit Ethernet ports
- Four SATA 6Gb/s and two M.2 storage interfaces
- 7.1 channel HD audio with S/PDIF output
- Includes comprehensive accessory pack for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIXB860-IGAMINGWIFI |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | B860-I GAMING WIFI |
| Product Name | STRIX B860-I GAMING WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 9066 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Miscellaneous | |
| Package Contents | STRIX B860-I GAMING WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x Screw package for M.2 SSD 1 x M.2 Bracket 1 x ROG key chain 1 x ROG Strix stickers 1 x Quick start guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with this motherboard?
This motherboard is designed for Intel Core Ultra processors using the LGA-1851 socket. It supports a single CPU and is built on the Intel B860 chipset, providing a platform for efficient performance in gaming and productivity tasks.
What type and speed of memory does it support?
It supports DDR5 SDRAM with two DIMM slots, accommodating up to 128 GB of total system memory. The memory speed is supported up to 9066 MHz, and it also includes ECC (Error Checking) support for enhanced data integrity in critical applications.
Does this motherboard have Wi-Fi and Bluetooth?
Yes, it features integrated Wi-Fi 6E based on the IEEE 802.11be standard for high-speed wireless connectivity with reduced interference. It also includes Bluetooth 5.4 for connecting peripherals like headphones, keyboards, and controllers.
How many PCIe slots and what standard does it use?
It has one PCI Express x16 slot that uses the PCI Express 5.0 standard. This provides double the bandwidth of PCIe 4.0, making it ideal for the latest high-performance graphics cards and NVMe storage expansion cards.
What storage connectivity options are available?
The board offers four SATA 6Gb/s ports for traditional hard drives and SSDs, along with two M.2 interfaces for NVMe SSDs. It supports RAID levels 0, 1, 5, and 10 for data redundancy or performance enhancement across compatible drives.
What is included in the box with the motherboard?
The package includes the motherboard, two SATA cables, a USB 2.0 splitter cable, panel cable, Wi-Fi antenna, cable ties, M.2 installation accessories (Q-Latch, screws, bracket), a ROG key chain, stickers, and a quick start guide for straightforward setup.
