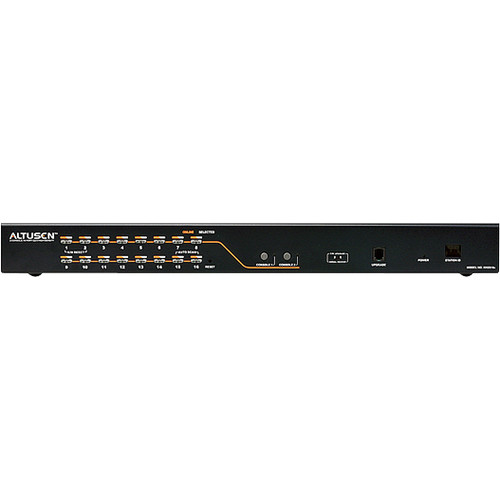

Aten KH2516A ALTUSEN KVM Switch - 16-Port - UXGA 1600 x 1200 - PS/2 & USB - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The KH2516A delivers advanced KVM switching capabilities with support for up to 16 directly connected computers. It features four PS/2 ports, four USB ports, and two VGA ports, providing flexible connectivity options for diverse hardware setups. The switch supports video resolutions up to 1920 x 1200 at 60Hz over shorter distances, with optimized performance for UXGA 1600 x 1200 at 60Hz up to 40 meters.
Technical specifications include a maximum operating distance of 164.04 feet (50,000 mm), ensuring reliable signal transmission in extended cable runs. The switch's internal architecture enables daisy-chaining of up to 15 additional units, expanding control capacity to 256 computers from a single console.
Relevant factors for this section include Number of Computers Supported, Maximum Operating Distance, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KH2516A stands out with features that enhance administrative control and operational flexibility in multi-computer environments. Its console conversion capability allows any KVM console type to control any computer type, eliminating compatibility barriers between PS/2 and USB systems.
Advanced User Management
Supports up to 10 user accounts and one administrator account, with configurable port access rights on a port-by-port basis for granular security control.
- Port access rights configuration
- Multi-user account support
- Administrator profile management
Flexible Operation Modes
Offers three port operation modes—Occupy, Exclusive, and Share—enabling tailored computer management strategies for different workflow requirements.
- Occupy mode for single-user control
- Exclusive mode for dedicated access
- Share mode for collaborative environments
Deployment / Use Cases
The KH2516A is engineered for environments requiring centralized control of multiple computer systems. In data centers, it enables administrators to manage server racks efficiently from a single console, reducing physical space requirements and simplifying maintenance procedures.
For broadcast studios or financial trading floors, the switch's daisy-chaining capability allows expansion to control up to 256 computers, supporting large-scale operations where real-time access to multiple systems is essential. Educational institutions and corporate IT departments benefit from its multiplatform support for PC, Mac, Sun, and serial devices, making it versatile across heterogeneous computing environments.
Data Center Management
Ideal for server room deployments where space optimization and remote access to multiple servers are priorities, with rack-mountable design and extended distance support.
Multi-Workstation Control
Suited for environments like design studios or research labs where users need simultaneous access to different computers from consolidated workstations.
Physical Profile
The KH2516A features a compact rack-mountable design measuring 1.73 inches in height, 17.21 inches in width, and 6.44 inches in depth. Its low-profile form factor allows efficient use of rack space while providing sturdy construction for continuous operation. The switch weighs approximately 6.28 pounds, making it manageable for installation in standard server racks or enclosed cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.21" (437.20 mm), 6.44" (163.60 mm), 6.28 lb (2850 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.21" (437.20 mm)
- Depth
- 6.44" (163.60 mm)
- Height
- 1.73" (44 mm)
- Weight
- 6.28 lb (2850 g)
Highlights
- Controls 16 computers directly with expansion to 256 via daisy-chaining
- Supports UXGA video resolution up to 1600 x 1200 with superior signal quality
- Mixed console compatibility for PS/2 and USB interfaces on both console and computer sides
- Three port selection methods: manual front panel, hotkey, and multi-language OSD
- OSD backup/restore feature for configuration and user profile management
- Multiplatform support for PC, Mac, Sun, and serial devices
- Configurable port access rights and multiple user account support
- Rack-mountable design with compact dimensions for space-efficient deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KH2516A |
| Brand Name | ATEN |
| Product Model | KH2516A |
| Product Name | ALTUSEN KH2516A KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 16 |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Video | |
| Graphic Mode | UXGA |
| Maximum Video Resolution | 1600 x 1200 |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Number of PS/2 Ports | 4 |
| Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 17.21" (437.20 mm) |
| Depth | 6.44" (163.60 mm) |
| Weight (Approximate) | 6.28 lb (2850 g) |
FAQ
How many computers can the KH2516A KVM switch control directly?
The KH2516A directly supports 16 computers. Through daisy-chaining with up to 15 additional KH2516A switches, the system can expand to control as many as 256 computers from the original KVM console, making it scalable for large installations.
What video resolutions does this KVM switch support?
This switch supports video resolutions up to 1920 x 1200 at 60Hz for distances up to 30 meters, with optimized support for UXGA 1600 x 1200 at 60Hz up to 40 meters, and 1280 x 1024 at 75Hz up to 50 meters. The maximum specified resolution is 1600 x 1200 for standard operation.
Does the KH2516A support both PS/2 and USB connections?
Yes, the KH2516A provides console conversion capability, allowing any type of KVM console to control any type of computer. It supports mixed combinations of PS/2 and USB interfaces on both the console and computer sides, with four PS/2 ports and four USB ports available.
What are the port selection methods available on this switch?
The switch offers three port selection methods: manual selection via front panel pushbuttons, hotkey commands from the connected keyboard, and a multi-language On-Screen Display (OSD) interface. This flexibility allows users to choose the most convenient method for their workflow.
How does the OSD backup/restore feature work?
The OSD backup/restore feature enables administrators to back up the switch's configuration settings and user profile information. This allows for quick restoration of settings after maintenance or replacement, ensuring consistent operation and reducing configuration time in managed environments.
What is the maximum operating distance for this KVM switch?
The KH2516A has a maximum operating distance of 164.04 feet (50,000 mm). This extended distance support makes it suitable for installations where computers are located farther from the control console, such as in distributed server racks or large equipment rooms.
