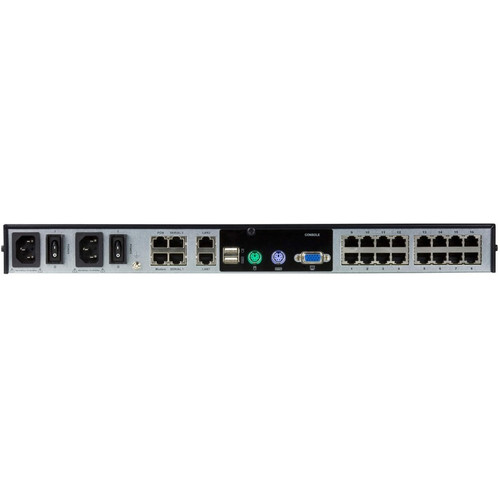

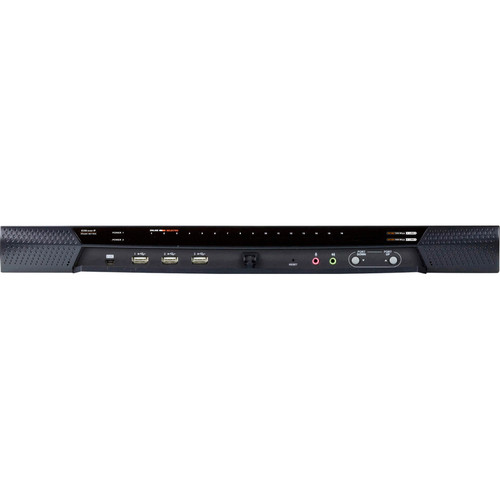

Aten KN1116VA KVM Over IP Switch - 16 Ports - 1920 x 1200 - 1U Rack/Desktop - 22 RJ-45 - 6 USB - 2 PS/2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The KN1116VA operates as a KVM over IP switch, enabling access to connected computers via network infrastructure. It supports one local user and one remote user simultaneously, providing flexible access options for on-site and off-site management.
Video output is handled through VGA interfaces, with support for resolutions up to 1920 x 1200. The switch includes comprehensive port configurations: 22 RJ-45 ports for network connectivity, 6 USB ports for peripheral attachment, and 2 PS/2 ports for keyboard and mouse connections.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Number of Remote Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KN1116VA offers significant advantages for IT infrastructure management by combining high port density with remote accessibility. Its KVM over IP functionality allows administrators to control multiple systems from any network location, reducing physical presence requirements and enhancing operational efficiency.
Centralized Control
Manage up to 16 computers from a single interface, simplifying monitoring and troubleshooting across multiple servers or workstations.
- Eliminates manual cable switching
- Supports local and remote users
Flexible Deployment
The 1U rack-mountable design fits standard server racks, while the desktop form factor option provides versatility for various installation scenarios.
- 1U rack height
- Desktop or rack mounting
Broad Compatibility
With support for VGA, USB, and PS/2 interfaces, the switch maintains compatibility with both modern and legacy hardware configurations.
- 22 RJ-45 ports
- 6 USB ports
- 2 PS/2 ports
Deployment / Use Cases
The ATEN KN1116VA is ideal for environments requiring centralized management of multiple computer systems. Its KVM over IP capability makes it particularly valuable for remote administration scenarios where physical access to equipment is limited or impractical.
Common deployment scenarios include data centers where server racks need consolidated control, IT labs with multiple testing stations, and broadcast facilities requiring reliable access to production systems. The switch's support for both local and remote users accommodates hybrid work environments with on-site and off-site technical staff.
Data Center Management
Deploy in server rooms to control multiple servers from a central console, reducing cable clutter and improving access efficiency.
Remote IT Support
Enable off-site technicians to troubleshoot and manage systems without requiring physical presence at the equipment location.
Physical Profile
The KN1116VA features a compact 1U form factor measuring 1.73" (44 mm) in height, 11.33" (287.80 mm) in width, and 17.26" (438.40 mm) in depth. With an approximate weight of 3.56 kg, it is designed for both desktop placement and standard 19-inch rack mounting. The dual mounting options provide installation flexibility for various workspace configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 11.33" (287.80 mm), 17.26" (438.40 mm), 3.56 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.33" (287.80 mm)
- Depth
- 17.26" (438.40 mm)
- Height
- 1U
- Weight
- 3.56 kg
Highlights
- KVM over IP switch for centralized management of 16 computers
- Supports 1 local user and 1 remote user simultaneously
- Maximum video resolution of 1920 x 1200 via VGA
- 22 RJ-45 network ports for comprehensive connectivity
- 6 USB ports and 2 PS/2 ports for peripheral support
- 1U rack-mountable design with desktop mounting option
- Input voltage range of 120V AC to 230V AC
- Environmentally compliant with WEEE and RoHS directives
- Manufactured in Taiwan with ATEN reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KN1116VA |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Series | KN |
| Product Model | KN1116VA |
| Product Name | KN1116VA KVM Over IP Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 22 |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 6 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage Range | 120V AC to 230V AC |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Rack Height | 1U |
| Height | 1.73" (44 mm) |
| Width | 11.33" (287.80 mm) |
| Depth | 17.26" (438.40 mm) |
| Weight (Approximate) | 3.56 kg |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
User Manual
FAQ
How many computers can the ATEN KN1116VA KVM switch support?
The ATEN KN1116VA KVM over IP switch supports up to 16 computers simultaneously. This allows centralized management of multiple systems from a single console, making it suitable for server rooms, data centers, and IT labs where multiple machines need to be monitored and controlled efficiently.
Does this KVM switch support remote access?
Yes, the KN1116VA supports both local and remote access. It accommodates one local user and one remote user simultaneously, enabling IT administrators to manage connected systems from any network location. This remote capability is particularly useful for off-site troubleshooting and maintenance without physical presence at the equipment.
What is the maximum video resolution supported by this KVM switch?
The ATEN KN1116VA supports a maximum video resolution of 1920 x 1200. This resolution provides clear visual output for monitoring and control tasks through VGA interfaces, ensuring adequate detail for administrative operations across the connected computer systems.
How many network ports does the KN1116VA have?
The KN1116VA features 22 RJ-45 network ports. These ports facilitate the KVM over IP functionality by connecting the switch to the network infrastructure, allowing remote access and management of the connected computers through standard Ethernet connections.
Can this KVM switch be rack-mounted?
Yes, the ATEN KN1116VA is designed for both desktop and rack-mountable deployment. It has a 1U form factor with dimensions of 1.73" height, 11.33" width, and 17.26" depth, making it compatible with standard 19-inch server racks while also offering the flexibility of desktop placement when needed.
What power input does the KN1116VA require?
The KN1116VA operates with an input voltage range of 120V AC to 230V AC. This wide voltage range supports deployment in various regions with different power standards, providing flexibility for international installations and ensuring compatibility with common power sources in data centers and office environments.
