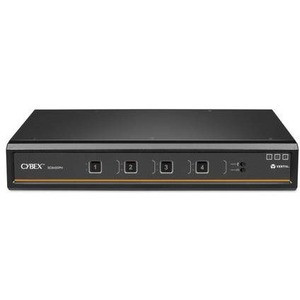

AVOCENT SC945DPH-400 Cybex SC900 Secure Desktop KVM Switch - Dual Head - 4 Port - NIAP 4.0 Certified - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This secure KVM switch employs both digital and analog connectivity technologies, supporting DisplayPort, HDMI, and DVI-I interfaces across ten DisplayPort, four HDMI, and six USB ports. The hybrid approach ensures compatibility with legacy and modern systems while maintaining 4K video quality at 60Hz refresh rates.
Power is supplied through a universal 100-240V AC input, making the unit suitable for international deployment without requiring voltage converters. The internal architecture includes keyboard and mouse emulation for zero-delay switching, eliminating the lag typically associated with KVM transitions between connected systems.
Port Density
The SC945DPH-400 provides comprehensive connectivity with ten DisplayPort outputs, four HDMI ports, six USB 2.0 ports, and four PS/2 interfaces. This configuration supports simultaneous dual-head display configurations across all connected computers while maintaining peripheral access.
- 10x DisplayPort
- 4x HDMI
- 6x USB
- 4x PS/2
Key Product Advantages
The Cybex SC900 distinguishes itself through military-grade security features combined with exceptional video performance. NIAP 4.0 certification ensures the switch meets rigorous government security standards for access control and data protection in classified environments.
Advanced Security Suite
Built-in smart card and biometric authentication provide multi-factor security at the hardware level. Tamper-resistant construction with intrusion detection triggers immediate alerts if physical security is compromised, preventing unauthorized access to connected systems.
- NIAP 4.0 Certified
- Smart Card Authentication
- Biometric Support
- Intrusion Detection
Video Performance
Dual-head 4K support at 3840 x 2160 resolution delivers crisp, detailed visuals for monitoring and analysis tasks. The switch maintains signal integrity across 10-foot cable runs without degradation, ensuring reliable performance in extended workstation configurations.
- Dual Head Support
- 4K Resolution
- 10 ft Operating Distance
- Zero Delay Switching
Deployment / Use Cases
The SC945DPH-400 is engineered for environments demanding both high security and multi-system management capabilities. Its TAA compliance and U.S. manufacturing make it particularly suitable for government contracts and defense applications where sourcing requirements are strictly enforced.
Financial institutions benefit from the tamper-resistant design and audit trail capabilities when managing trading floors or secure data centers. The peripheral isolation feature consolidates keyboard, mouse, and display connections into a single managed interface, reducing cable clutter and improving workstation organization.
Secure Control Rooms
Ideal for security operations centers, network operations centers, and intelligence facilities where operators must monitor multiple secure systems simultaneously. The dual-head display support allows for extended desktop configurations across surveillance or monitoring applications.
- Government Facilities
- Defense Applications
- Financial Trading Floors
- Secure Data Centers
Compliance-Driven Environments
Organizations requiring NIAP-certified equipment for classified data handling or TAA-compliant sourcing for federal contracts will find this switch meets stringent regulatory requirements while delivering practical KVM functionality.
- Classified Data Handling
- Federal Contract Compliance
- Regulated Industries
- Secure Workstations
Physical Profile
The desktop form factor measures 13.70" wide × 5" deep × 2.20" high (347.98 × 127 × 55.88 mm) and weighs approximately 3.70 lb (1.68 kg). The compact design fits comfortably on standard desktops while the 1U rack-height compatibility allows for secure mounting in standard server racks when required. The unit's modest footprint makes it suitable for space-constrained environments without sacrificing connectivity or performance.
- Width
- 13.70" (347.98 mm)
- Depth
- 5" (127 mm)
- Height
- 1U
- Weight
- 3.70 lb (1678.29 g)
What's in the Box
The package includes all necessary components for immediate deployment in secure environments.
Highlights
- NIAP 4.0 Certified with tamper-resistant construction and intrusion detection
- Supports dual-head 4K video at 3840 x 2160 resolution across DisplayPort, HDMI, and DVI
- Manages up to 4 computers from a single workstation with zero-delay switching
- Built-in smart card and biometric authentication for multi-factor security
- TAA compliant and manufactured in the United States
- Desktop form factor with 1U rack-mount compatibility
- Includes 10 DisplayPort, 4 HDMI, 6 USB, and 4 PS/2 ports
- Universal 100-240V AC input for international deployment
- 3-year limited warranty with RoHS environmental compliance
- Peripheral isolation reduces cable clutter in secure workstation environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | SC945DPH-400 |
| Brand Name | Vertiv AVOCENT |
| Product Line | Cybex |
| Product Series | 900 |
| Product Model | SC940 |
| Product Name | Cybex SC900 Secure Desktop KVM Switch, Dual Head Monitor, 4 Port, Common Access Card, NIAP Version 4.0, TAA Compliant (SC945DPH-400) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Digital & Analog |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Features | Tamper Resistant,Intrusion Detection |
| Maximum Operating Distance | 10 ft (3048 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| PS/2 Port | Yes |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | No |
| DisplayPort | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 0 |
| Number of PS/2 Ports | 4 |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 4 |
| Number of DVI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of DisplayPorts | 10 |
| Power Description | |
| Input Voltage Range | 100VAC-240VAC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rack Height | 1U |
| Height | 2.20" (55.88 mm) |
| Width | 13.70" (347.98 mm) |
| Depth | 5" (127 mm) |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Miscellaneous | |
| Package Contents | Cybex SC900 Secure Desktop KVM Switch, Dual Head Monitor, 4 Port, Common Access Card, NIAP Version 4.0, TAA Compliant (SC945DPH-400) Power Supply |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What security certifications does this KVM switch hold?
The AVOCENT SC945DPH-400 is NIAP 4.0 certified, meeting rigorous government security standards for access control systems. It also features TAA compliance for federal contracting requirements and includes tamper-resistant construction with intrusion detection capabilities that trigger alerts if physical security is compromised.
How many computers can I connect to this KVM switch?
This secure KVM switch supports up to four computers simultaneously from a single workstation. The configuration allows one local user to control all connected systems with zero-delay switching between them, making it ideal for environments where operators need to monitor multiple secure systems.
What video resolutions and interfaces are supported?
The switch supports dual-head 4K video at 3840 x 2160 resolution across DisplayPort, HDMI, and DVI-I interfaces. It includes ten DisplayPort outputs, four HDMI ports, and maintains video quality across operating distances up to 10 feet (3048 mm) without signal degradation.
Does this KVM switch support biometric authentication?
Yes, the SC945DPH-400 includes built-in smart card and biometric authentication capabilities as part of its multi-factor security approach. This allows users to authenticate on any connected computer using fingerprint or smart card credentials, enhancing security in controlled access environments.
What is the form factor and rack compatibility?
This KVM switch features a desktop form factor measuring 13.70" wide × 5" deep × 2.20" high, with 1U rack-height compatibility for optional rack mounting. The compact design fits on standard desktops while providing flexibility for secure rack deployment in data center or control room environments.
What power requirements does this switch have?
The switch operates on universal 100-240V AC input, making it suitable for international deployment without requiring voltage converters. This broad voltage range ensures reliable operation in various geographic locations and power grid conditions commonly encountered in government and enterprise environments.
