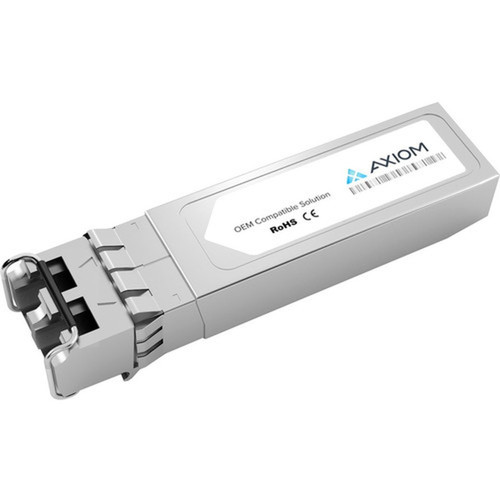

Axiom 01-SSC-9786-AX 10GBASE-LR SFP+ Transceiver for Sonicwall - Single-mode LC Fiber 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver operates on 10 Gigabit Ethernet technology, providing a data transfer rate of up to 10 Gbps. It supports single-mode fiber optic media, which is ideal for long-distance transmissions spanning hundreds of miles with high integrity. The module features one LC port, ensuring compatibility with standard fiber optic cabling and connectors commonly used in enterprise and data center environments.
Technical compliance includes MSA standards, guaranteeing interoperability with a wide range of networking hardware. The transceiver's physical dimensions are optimized for high-density installations, with a height of 0.49 inches, width of 0.53 inches, and depth of 2.21 inches. Its approximate weight of 0.59 ounces makes it easy to handle and install without adding significant bulk to network devices.
Key Product Advantages
The Axiom 10GBASE-LR SFP+ transceiver offers distinct advantages for network scalability and performance. Its compatibility with Sonicwall devices ensures reliable operation in security-focused networking setups, while the use of single-mode fiber enables extended reach without compromising data integrity.
High-Speed Connectivity
Delivers 10 Gbps throughput, supporting bandwidth-intensive applications and reducing network bottlenecks in data centers and enterprise networks.
- 10 Gigabit Ethernet technology
- Up to 10 Gbps data transfer rate
Long-Distance Performance
Utilizes single-mode fiber optic media for transmissions over hundreds of miles, ideal for connecting remote sites or expanding network infrastructure across large campuses.
- Single-mode fiber support
- Minimal signal loss over long distances
Standards Compliance
MSA compliance ensures broad hardware compatibility, reducing deployment risks and simplifying integration with existing network equipment from various vendors.
- MSA Compliant
- Environmentally Friendly
Deployment / Use Cases
This transceiver is suited for deployments requiring high-speed, long-distance fiber optic connections. Common use cases include data center interconnects, where 10 Gbps links between servers and switches enhance overall network performance. It also supports enterprise network expansions, enabling reliable connectivity between buildings or campuses over single-mode fiber.
In Sonicwall environments, the module integrates seamlessly with compatible security appliances, providing fast and secure data transmission for firewall-protected networks. Its small form factor makes it ideal for high-density switch installations, optimizing rack space while maintaining network scalability. Additionally, it serves well in telecommunications and ISP setups, where long-reach fiber optic links are essential for backbone infrastructure.
Data Center Interconnects
Connect servers, storage, and networking equipment within data centers using 10 Gbps fiber optic links for improved data throughput and reduced latency.
Enterprise Network Expansion
Extend network reach across multiple buildings or remote offices with single-mode fiber, ensuring high-speed connectivity for business applications and communications.
Physical Profile
The transceiver features a compact design with dimensions of 0.49 inches in height, 0.53 inches in width, and 2.21 inches in depth, allowing it to fit into standard SFP+ slots without occupying excessive space. Its lightweight construction, at approximately 0.59 ounces, facilitates easy installation and reduces strain on network hardware. The small footprint is particularly beneficial in high-density networking environments, where efficient use of rack space is critical for scalability and management.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 10 Gigabit Ethernet technology for up to 10 Gbps data transfer rates
- Single-mode fiber optic support for long-distance transmissions
- LC connector type for reliable fiber optic connections
- MSA compliant for broad hardware compatibility
- Specifically designed for Sonicwall networking environments
- Compact form factor ideal for high-density installations
- Environmentally friendly design
- Lightweight at approximately 0.59 ounces for easy handling
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 01-SSC-9786-AX |
| Brand Name | Axiom |
| Product Model | 01-SSC-9786-AX |
| Product Name | 10GBASE-LR SFP+ Transceiver for Sonicwall - 01-SSC-9786 |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
FAQ
What is the data transfer rate of this SFP+ transceiver?
This Axiom SFP+ transceiver supports 10 Gigabit Ethernet technology, delivering a data transfer rate of up to 10 Gbps. This high-speed capability is essential for bandwidth-intensive applications in data centers and enterprise networks, ensuring efficient data flow and reduced latency across connected devices.
What type of fiber optic cable does this transceiver support?
The transceiver supports single-mode fiber optic cables, which are designed for long-distance transmissions with minimal signal loss. Single-mode fiber is ideal for spans over hundreds of miles, making this module suitable for connecting remote sites or expanding network infrastructure across large geographic areas.
Is this transceiver compatible with Sonicwall devices?
Yes, this SFP+ transceiver is specifically designed for Sonicwall environments, ensuring reliable compatibility and performance with Sonicwall networking equipment. It integrates seamlessly into Sonicwall security appliances, providing high-speed fiber optic connectivity for secure data transmission in firewall-protected networks.
What connector type does this SFP+ module use?
This transceiver uses LC connectors, which are standard for fiber optic networking. LC connectors provide precise alignment and stable connections, reducing insertion loss and ensuring reliable data transmission over single-mode fiber optic cables in various deployment scenarios.
