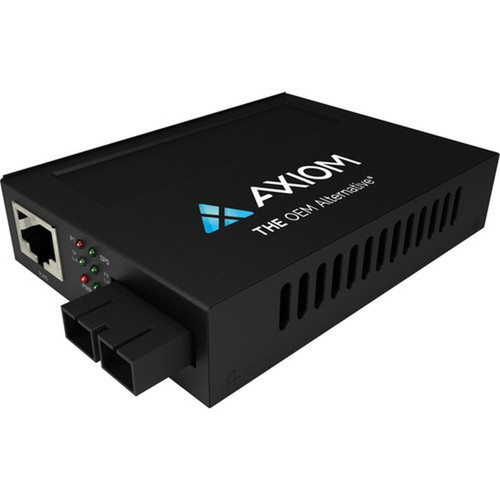

Axiom MCP32-F1-M8S05-AX PoE Gigabit RJ45 to 1000BASE-SX Fiber Media Converter - MMF - SC - 550km - 850nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with an 850 nm wavelength on multimode fiber, supporting distances up to 550 kilometers (341.75 miles). It handles both twisted pair and optical fiber media, making it ideal for extending network reach beyond the 100-meter limit of standard copper cabling. The device is compatible with 10/100/1000Base-T Ethernet standards, ensuring seamless integration with existing Gigabit network infrastructure.
The converter's SC port uses a standard push-pull connector for reliable fiber optic connections, while the RJ-45 port supports auto-negotiation for easy plug-and-play setup. Its compact form factor and versatile power options allow for deployment in space-constrained locations, such as network closets or remote enclosures.
Key Product Advantages
This converter combines media conversion with PoE functionality, reducing the need for separate power injectors and simplifying cable management. Its long-distance support enables network expansion across campuses, industrial sites, or between buildings without signal degradation.
Extended Reach
Convert copper to fiber to overcome the 100-meter limitation of twisted pair cables, supporting deployments up to 550 kilometers.
- Eliminates distance barriers
- Maintains signal integrity over fiber
PoE Integration
The built-in PSE port delivers power to connected devices, streamlining installations for PoE-enabled endpoints.
- Reduces power cabling
- Supports IP cameras and access points
High-Speed Performance
Leverage 1000Base-SX technology for full Gigabit throughput, ensuring fast data transfer for bandwidth-intensive applications.
- Gigabit Ethernet compatible
- Low latency conversion
Deployment / Use Cases
This media converter is ideal for extending network segments where fiber optic cabling is required for distance or environmental reasons. Common use cases include connecting remote buildings in campus networks, linking surveillance cameras in large facilities, or integrating fiber backbones into existing copper-based LANs.
In industrial settings, it can bridge Ethernet networks across manufacturing floors or outdoor areas where electromagnetic interference is a concern. The PoE capability makes it suitable for powering devices like wireless access points or VoIP phones in hard-to-reach locations, reducing infrastructure complexity.
Campus Network Extension
Connect multiple buildings over fiber to maintain high-speed connectivity across large areas without signal loss.
Surveillance Deployments
Power and connect IP cameras over long distances using a single converter, simplifying security system installations.
Highlights
- Converts RJ-45 Gigabit Ethernet to 1000BASE-SX multimode fiber
- Includes 1 PoE (PSE) port for powering connected devices
- Supports distances up to 550 kilometers over fiber
- Uses SC connectors for reliable fiber optic connections
- Operates at 850 nm wavelength on multimode fiber
- Compatible with 10/100/1000Base-T Ethernet standards
- AC/DC power source for flexible installation
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MCP32-F1-M8S05-AX |
| Brand Name | Axiom |
| Product Series | POE (PSE) |
| Product Name | 1Gbs POE RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 550m, 850nm |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 550 km (341.75 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,10/100/1000Base-T |
| Power Description | |
| Power Source | AC/DC |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What types of media does this converter support?
This converter supports both twisted pair copper cables and multimode optical fiber. It converts signals between these media types, allowing you to extend network segments beyond the typical 100-meter limit of copper cabling by utilizing fiber optic connections for longer distances.
How far can this converter transmit data over fiber?
The converter supports a maximum distance of 550 kilometers (approximately 341.75 miles) over multimode fiber when using 1000BASE-SX technology. This extended reach makes it suitable for connecting remote locations, such as between buildings in a campus or across industrial sites.
What is the purpose of the PoE port on this converter?
The PoE port functions as a Power Sourcing Equipment (PSE) port, delivering power to compatible devices like IP cameras, wireless access points, or VoIP phones. This eliminates the need for separate power injectors, simplifying installation and reducing cable clutter in network deployments.
