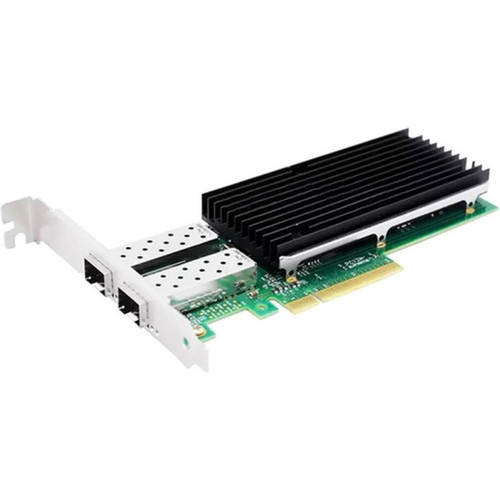

Axiom PCIE3-2SFP28-AX 25GbE Dual-Port SFP28 PCIe 3.0 x 8 NIC Card with Intel XXV710 Chipset
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 25GbE NIC operates on the PCI Express 3.0 x8 interface, providing 8000 MB/s of bidirectional bandwidth to handle demanding network traffic without bottlenecking system performance. The Intel XXV710 chipset at its core delivers enterprise-grade reliability with advanced features like RDMA over Converged Ethernet (RoCE) support, though specific implementation depends on driver and system configuration.
The card's SFP28 ports accept industry-standard optical transceivers, enabling flexible deployment with single-mode or multi-mode fiber cabling for distances up to 10 kilometers depending on transceiver selection. Network administrators can leverage this flexibility to design cost-effective fiber infrastructure that meets specific distance and bandwidth requirements.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Axiom 25GbE NIC delivers significant advantages for organizations upgrading their network infrastructure. The combination of high throughput, dual-port density, and reliable Intel silicon makes it a compelling choice for performance-critical applications.
Bandwidth Efficiency
With 25 Gbit/s per port, this card provides 2.5 times the throughput of standard 10GbE adapters while maintaining similar power consumption profiles, making it an energy-efficient upgrade path for data centers.
- 25 Gbit/s per port throughput
- Low power consumption design
- Backward compatible with 10GbE/1GbE
Deployment Flexibility
The included low-profile and full-height brackets allow installation in various server chassis, from 1U rack servers to tower workstations, while SFP28 optical support enables both short-reach and long-distance connectivity.
- Dual bracket inclusion
- Optical fiber media support
- Standard PCIe form factor
Deployment / Use Cases
This 25GbE NIC is particularly well-suited for NAS storage systems, where high-speed network connectivity directly impacts data access performance and backup window completion times. The dual-port configuration enables link aggregation for increased throughput or failover redundancy, ensuring continuous data availability for critical storage workloads.
In virtualized environments, this card provides the network bandwidth necessary to support multiple virtual machines with demanding I/O requirements. Database servers, video editing workstations, and scientific computing applications all benefit from the reduced latency and increased throughput that 25GbE networking delivers compared to traditional 10GbE solutions.
NAS Storage Acceleration
Connect NAS devices directly to 25GbE switches to eliminate network bottlenecks during large file transfers, multimedia streaming, or virtual machine storage operations.
Server Network Upgrade
Modernize existing 10GbE server infrastructure with a straightforward card replacement that immediately doubles available network bandwidth per port.
Physical Profile
Measuring 6.50 inches in height, 0.51 inches in width, and 2.68 inches in depth, this plug-in card maintains a standard PCIe form factor compatible with most server and workstation chassis. The slim 0.51-inch profile allows installation in densely populated systems without interfering with adjacent components. At just under 5 ounces, the card adds minimal weight to systems while the included low-profile and full-height brackets ensure proper mounting in various enclosure types.
- Width
- 0.51" (13 mm)
- Depth
- 2.68" (68 mm)
- Height
- 6.50" (165 mm)
- Weight
- 4.96 oz (140.61 g)
What's in the Box
The package includes everything needed for immediate deployment across different server form factors.
Highlights
- Dual 25 Gbit/s SFP28 ports for high-density network connectivity
- Intel XXV710 chipset ensures enterprise-grade reliability and performance
- PCI Express 3.0 x8 interface delivers 8000 MB/s bandwidth
- Supports optical fiber media for long-distance data transmission
- Backward compatible with 10GbE and 1GbE network infrastructure
- Includes both low-profile and full-height mounting brackets
- 3-year limited warranty for peace of mind
- Ideal for NAS storage systems and server network upgrades
- Standard PCIe form factor fits most server and workstation chassis
- Network technologies: 25GBase-SR/LR, 10GBase-SR/LR, 1000Base-SX/LX
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | PCIE3-2SFP28-AX |
| Brand Name | Axiom |
| Product Name | 25Gbs Dual Port SFP28 PCIe 3.0 x8 NIC Card - PCIE3-2SFP28-AX |
| Product Type | 25Gigabit Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | XXV710 |
| Interfaces/Ports | |
| Host Interface | PCI Express 3.0 x8 |
| Total Number of Ports | 2 |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Maximum Data Transfer Rate | 25 Gbit/s |
| Network & Communication | |
| Network Technology | 25GBase-SR/LR,10GBase-SR/LR,1000Base-SX/LX |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 6.50" (165 mm) |
| Width | 0.51" (13 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 4.96 oz (140.61 g) |
| Miscellaneous | |
| Package Contents | 25Gbs Dual Port SFP28 PCIe 3.0 x8 NIC Card - PCIE3-2SFP28-AX Low Profile Brackets Full Height Bracets |
| Device Supported | NAS Storage Device |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of network cables does this NIC support?
This Axiom NIC supports optical fiber cables through its SFP28 ports. It is compatible with industry-standard SFP28 optical transceivers that work with both single-mode and multi-mode fiber cabling. The specific cable type and maximum distance depend on the transceiver installed, with support for 25GBase-SR (short reach) and 25GBase-LR (long reach) specifications enabling deployments from a few meters up to 10 kilometers.
Can I use this card in a standard desktop computer?
Yes, this PCIe 3.0 x8 card is compatible with any desktop computer or workstation that has an available PCIe x8 or larger slot (x16 slots are fully compatible). The included full-height bracket is designed for standard ATX cases, while the low-profile bracket accommodates smaller form factor systems. However, you'll need appropriate driver support for your operating system and compatible SFP28 transceivers with fiber network infrastructure to utilize the card's capabilities fully.
What is the difference between SFP28 and SFP+ ports?
SFP28 ports are the evolution of SFP+ ports, with both using the same physical form factor but different electrical specifications. SFP28 supports data rates up to 28 Gbit/s (25 Gbit/s for Ethernet), while SFP+ supports up to 16 Gbit/s (10 Gbit/s for Ethernet). This Axiom card uses SFP28 ports, which are backward compatible with SFP+ transceivers for 10GbE operation but require SFP28 transceivers to achieve the full 25GbE performance. The electrical interface provides better signal integrity at higher speeds compared to SFP+.
Does this NIC support link aggregation or teaming?
Yes, the dual-port configuration enables link aggregation (also called port teaming or bonding) when supported by your operating system and network switch. This allows combining both 25 Gbit/s ports to create a single logical interface with up to 50 Gbit/s of aggregate bandwidth or configure them for failover redundancy. Implementation specifics depend on your operating system's network driver capabilities and switch configuration, with most enterprise environments supporting IEEE 802.3ad (LACP) for dynamic link aggregation.
What operating systems are compatible with this network card?
This Axiom NIC with Intel XXV710 chipset is compatible with major server and desktop operating systems that have driver support for the Intel Ethernet Controller XXV710. This typically includes Windows Server editions, Windows 10/11, various Linux distributions (with kernel support), VMware ESXi, and other virtualization platforms. Always verify current driver availability for your specific OS version before deployment, as compatibility may vary with different releases and updates.
How does this 25GbE card compare to 10GbE cards for NAS storage?
This 25GbE card provides 2.5 times the throughput of standard 10GbE cards, significantly reducing data transfer times for NAS storage systems. For sequential read/write operations common in backup, media streaming, and virtual machine storage, the increased bandwidth can dramatically improve performance. The dual-port configuration also offers more flexibility for link aggregation or separate network segmentation compared to single-port 10GbE cards. However, to realize these benefits, your entire network path—including switches and other connected devices—must support 25GbE speeds.
