AXIS 02769-001 M5526-E 4MP Indoor/Outdoor PTZ Dome Camera - White - 10x Optical Zoom - 2688 x 1512 - H. 265 - PoE - IP66 - IK09
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures 4-megapixel video at 2688x1512 resolution with a maximum frame rate of 60 fps, ensuring smooth motion representation. The imaging system utilizes a 1/3" RGB CMOS sensor with P-iris and auto iris control for optimal light management across varying conditions.
Video encoding supports H.264, H.265, and Motion JPEG formats with Axis Zipstream technology that reduces bandwidth and storage requirements while maintaining image quality. The camera processes video through multiple H.264 profiles and H.265 Main Profile for compatibility with modern surveillance systems.
Relevant factors for this section include HD Recording, Camera Iris, Image Sensor Type, Image Sensor Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The M5526-E combines high-resolution imaging with robust physical construction and intelligent analytics capabilities. Its 10x optical zoom provides substantial reach without digital interpolation, while the varifocal lens offers field of view adjustment from 59.1° to 6.5° horizontally.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Analytics, Environmental Resilience.
Advanced Analytics
Includes built-in support for motion detection, vehicle detection, and human detection with deep learning capabilities for accurate event recognition.
- Motion Detection
- Vehicle Detection
- Human Detection
Environmental Resilience
Rated IP66 for dust and water resistance and IK09 for impact protection, ensuring reliable operation in challenging outdoor environments.
- IP66 Rated
- IK09 Impact Protection
- -20°C to 50°C Operating Range
Deployment / Use Cases
The AXIS M5526-E is designed for perimeter security, parking lot monitoring, building entrances, and other areas requiring both wide-area coverage and detailed zoom capability. Its indoor/outdoor rating and robust construction make it suitable for retail environments, educational campuses, corporate facilities, and industrial sites.
The camera's PoE support simplifies installation by delivering both power and data over a single Ethernet cable, reducing wiring complexity. Fast Ethernet connectivity ensures compatibility with existing network infrastructure while supporting comprehensive protocol suites including ONVIF for interoperability with third-party video management systems.
Perimeter Security
Monitor property boundaries with the 10x optical zoom that provides detailed identification of subjects at distance while maintaining wide-area situational awareness.
Parking Facility Coverage
Deploy in parking lots and garages where the camera's 360° continuous pan capability combined with vehicle detection analytics enhances security monitoring efficiency.
Physical Profile

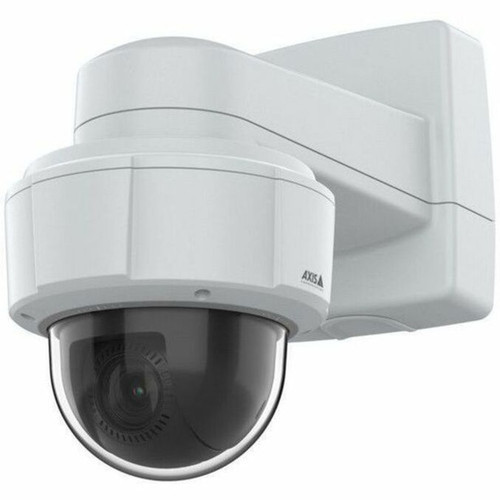

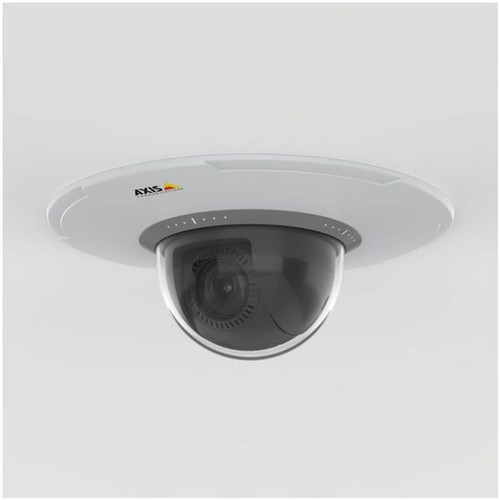

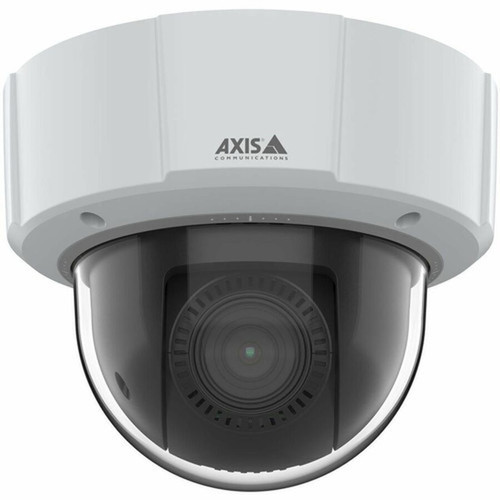

The camera features a white dome form factor designed for discreet monitoring applications. Weighing 2.20 lb (1000 g), the unit maintains a compact profile suitable for ceiling or wall mounting. The dome enclosure provides environmental protection while minimizing visual intrusion in surveillance environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.20 lb (1000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 2.20 lb (1000 g)
- Length
- 4.7 mm (0.19")
What's in the Box
The package includes all necessary components for installation and operation of the surveillance camera system.
Highlights
- 4-megapixel resolution at 2688x1512 for detailed surveillance footage
- 10x optical zoom with varifocal lens for flexible coverage adjustment
- H.265 and H.264 video compression with Axis Zipstream technology
- PoE (Power over Ethernet) support for simplified installation
- IP66 and IK09 ratings for dust, water, and impact resistance
- Built-in analytics including motion, vehicle, and human detection
- Continuous 360° pan capability for comprehensive area coverage
- Operating temperature range from -20°C to 50°C
- Fast Ethernet connectivity with comprehensive protocol support
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02769001 |
| Brand Name | AXIS |
| Product Series | M55 |
| Product Model | AXIS M5526-E |
| Product Name | M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | P-iris,Auto |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 59.1°-6.5°, Vertical field of view: 35°-3.67° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG,Zipstream,H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.7 mm (0.19") |
| Maximum Focal Length | 47 mm (1.85") |
| Lens Included | Yes |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 10x |
| Exposure | |
| Shortest Shutter Speed | 1/27000 Second |
| Longest Shutter Speed | 0.2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTCP,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1AR,IEEE 802.1X (EAP-TLS),ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 12.95 W |
| Input Voltage | 20 V DC,28 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Day/Night,Ingress Protection,Motion Detection,Vehicle Detection,Human Detection,HTTPS Encryption,Password Protection,Privacy Masking,Wide Dynamic Range,White Balance |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | 1 x M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall 1 x Installation Guide 1 x Bayonet Adapter 1 x Terminal Bloc |
| Impact Protection Rating | IK09 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Cambodia |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the AXIS M5526-E camera capture?
The AXIS M5526-E captures 4-megapixel video at 2688x1512 resolution. This provides significantly more detail than standard 1080p cameras, allowing for clearer identification of subjects and better digital zoom capability while maintaining image quality for security monitoring applications.
Does this camera support Power over Ethernet (PoE)?
Yes, the M5526-E supports Power over Ethernet (PoE) for simplified installation. The camera can receive both power and data over a single Ethernet cable, eliminating the need for separate power wiring. It also accepts 20-28V DC input for installations where PoE is not available.
What is the optical zoom capability of this camera?
This camera features a 10x optical zoom with a varifocal lens that ranges from 4.7mm to 47mm focal length. Optical zoom provides true magnification without digital interpolation, maintaining image quality when zooming in on distant subjects for identification purposes in surveillance scenarios.
Is the AXIS M5526-E suitable for outdoor installation?
Yes, the M5526-E is rated for both indoor and outdoor use with IP66 ingress protection against dust and water jets. It also carries an IK09 impact protection rating and operates in temperatures from -20°C to 50°C, making it suitable for challenging outdoor environments where weather resistance is required.
What video compression formats does this camera support?
The camera supports H.264, H.265, and Motion JPEG video formats. H.265 (HEVC) provides approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements. Axis Zipstream technology further optimizes compression by reducing redundancy in video streams while maintaining critical detail.
What analytics capabilities are built into this camera?
The M5526-E includes motion detection, vehicle detection, and human detection analytics with deep learning support. These intelligent features enable the camera to distinguish between different types of movement, reducing false alarms and providing more accurate event notifications for security monitoring applications.
