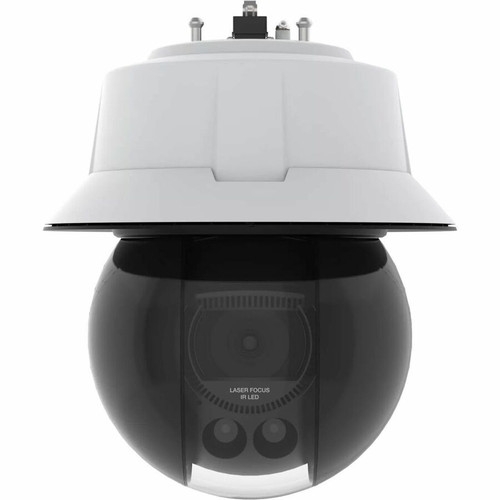

AXIS 02976-004 Q6355-LE 2MP Outdoor PTZ Dome Camera - 31x Optical Zoom - Full HD 1080p - Infrared - IP66/67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Q6355-LE leverages a 1/2" CMOS sensor to capture 2-megapixel video at resolutions up to 1920 x 1080. Its varifocal lens offers a focal range from 6.9 mm to 214.6 mm, providing a horizontal field of view adjustable between 60.6° and 2.0°. The camera supports multiple video formats including H.264, H.265, and Motion JPEG, with Zipstream technology optimizing bandwidth and storage efficiency.
Network connectivity is handled via Gigabit Ethernet, supporting a comprehensive suite of protocols such as IPv4/IPv6, HTTP/HTTPS, RTSP, and SNMP for seamless integration into existing security infrastructures. The camera includes 4 GB of internal memory and accepts external memory cards for flexible storage options. Power consumption peaks at 51 watts, supplied through a 90 W midspan included in the package.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Type, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-performance imaging with rugged durability to meet the needs of outdoor surveillance. The 31x optical zoom allows detailed observation of distant subjects, while the 60 fps frame rate ensures smooth video playback for critical monitoring. AI-enhanced features like human and vehicle detection reduce false alarms and improve incident response accuracy.
Advanced Imaging
The 2MP sensor and 120 dB wide dynamic range deliver clear footage in high-contrast lighting, with 3D digital noise reduction minimizing grain in low-light conditions.
- Fixed iris for consistent exposure
- Infrared cut-off filter for accurate color reproduction
Robust Construction
Built with metal, polycarbonate, and aluminum materials, the dome housing resists impacts and weather, certified to IP66/IP67 and IK10 standards for reliable outdoor operation.
- Operating temperature range: -58°F to 131°F
- Condensing humidity tolerance: 10% to 100%
Deployment / Use Cases
The AXIS Q6355-LE is designed for versatile outdoor surveillance applications where detailed monitoring and environmental resilience are paramount. Its PTZ capabilities and long-range zoom make it ideal for large-area coverage, such as parking facilities, transportation hubs, and perimeter fencing, where operators need to track moving subjects or inspect specific points of interest.
In industrial settings, the camera's rugged build and wide operating temperature range suit it for monitoring outdoor storage yards, loading docks, and remote infrastructure. The AI detection features enhance security by automating alert generation for unauthorized personnel or vehicles, reducing manual monitoring workload. For urban environments, its white dome finish blends with architectural aesthetics while providing high-definition oversight of public spaces, building entrances, or retail exteriors.
Perimeter Security
Use the 31x zoom to monitor fence lines and access points, with infrared night vision ensuring 24/7 visibility and tampering alarms deterring vandalism.
Traffic and Parking Management
Deploy in lots or along roadways to capture license plates and vehicle movements, leveraging 60 fps video for clear playback of fast-paced scenes.
Physical Profile
The dome-shaped camera measures 10.28 inches in height and 7.56 inches in diameter, with a weight of approximately 9.70 pounds. Its white finish and compact form factor facilitate discreet installation on walls, ceilings, or poles. The included repaint template and paint paper allow for custom color matching to blend with surrounding surfaces, while the IP66-rated network connector ensures weatherproof cable management.
- Height
- 10.28" (261 mm)
- Weight
- 9.70 lb (4400 g)
- Length
- 6.9 mm (0.27")
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video at 60 fps
- 31x optical zoom with varifocal lens (6.9 mm to 214.6 mm focal length)
- Infrared night vision and 120 dB wide dynamic range for all lighting conditions
- AI-powered detection: human, face, vehicle, and active tampering alarms
- IP66/IP67 and IK10 ratings for weather and impact resistance
- Gigabit Ethernet connectivity with support for H.264, H.265, and Motion JPEG
- Operating temperature range from -58°F to 131°F (-50°C to 55°C)
- Includes 90 W midspan, installation guide, and repaint template for easy setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02976-004 |
| Brand Name | AXIS |
| Product Series | Q63 |
| Product Model | Q6355-LE |
| Product Name | Q6355-LE PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision Type | Infrared |
| Camera Iris | Fixed |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 60.6°- 2.0° Vertical field of view: 36.5°- 1.1° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,Zipstream,H.265,H.264 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.9 mm (0.27") |
| Maximum Focal Length | 214.6 mm (8.45") |
| Lens Included | Yes |
| Optical Zoom | 31x |
| Exposure | |
| Shortest Shutter Speed | 1/111000 Second |
| Longest Shutter Speed | 1/2 Second |
| PTZ Modes | Digital PTZ,Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2/v3),SNMP (MIB-2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 51 W |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Metal,Polycarbonate,Aluminum |
| Form Factor | Dome |
| Durability | Impact Resistant,Weather Resistant |
| Height | 10.28" (261 mm) |
| Diameter | 7.56" (192 mm) |
| Weight (Approximate) | 9.70 lb (4400 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR),Wide Dynamic Range,Audio Compression,Human Detection,Face Detection,Vehicle Detection,Active Tampering Alarm |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q6355-LE PTZ Camera Installation Guide Windows decoder 1-user license 90 W Midspan (including power cable)4 IP66-rated network Connector Repaint Template Paint Paper |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and video quality of the AXIS Q6355-LE camera?
The camera offers a 2-megapixel resolution with maximum video quality of 1920 x 1080 (Full HD) at 60 frames per second. This ensures sharp, detailed footage suitable for identifying subjects and capturing fast-moving scenes in surveillance applications.
Does this camera support night vision and low-light operation?
Yes, it includes infrared night vision for visibility in darkness, along with a 120 dB wide dynamic range to handle high-contrast lighting. Features like 3D digital noise reduction further enhance image clarity in low-light conditions, making it effective for 24/7 monitoring.
What are the zoom capabilities and field of view?
The camera features a 31x optical zoom with a varifocal lens ranging from 6.9 mm to 214.6 mm. The field of view adjusts from 60.6° to 2.0° horizontally and 36.5° to 1.1° vertically, allowing for both wide-area coverage and detailed close-up observation.
Is the AXIS Q6355-LE suitable for outdoor use in harsh environments?
Absolutely. It is rated IP66 and IP67 for dust and water resistance, along with an IK10 impact rating. The operating temperature range spans from -58°F to 131°F, and it withstands condensing humidity up to 100%, making it durable for outdoor installations in extreme weather.
What AI detection features does this camera include?
It incorporates AI-powered detection for humans, faces, and vehicles, plus an active tampering alarm. These features automate alert generation, reduce false alarms, and enhance security by focusing on relevant events, improving monitoring efficiency.
What is included in the package for installation?
The box contains the Q6355-LE PTZ camera, an installation guide, a Windows decoder 1-user license, a 90 W midspan with power cable, four IP66-rated network connectors, a repaint template, and paint paper. This provides all essentials for setup and customization.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
