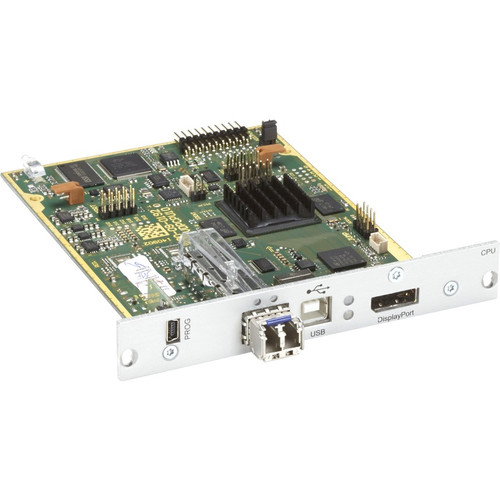

Black Box DKM FX KVM Extender Transmitter 4K 4096 X 2160 Video For Single Computer Ultra Long Range Up To 32800 Ft ACX2MT-DPH-SM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wired
Number of Computers Supported: 1
Maximum Operating Distance: 32800 ft (9997440 mm)
Device Type: KVM Extender
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
USB: Yes
DisplayPort: Yes
Number of USB Ports: 2
Platform Supported: PC,Sun,Mac,Unix,Linux
Environmentally Friendly: Yes
TAA Compliant: Yes
- DisplayPort 1.1 4k30 video with resolutions up to 4096 x 2160 @ 30Hzand 3840 x 2162 @ 60Hz
- Support for USB HID keyboards and mice
- LC Single Mode Fiber Connectivity
- Audio format PCM can be transferred - Sample rate 96Hz
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX2MT-DPH-SM |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Model | ACX2MT-DPH-SM |
| Product Name | DKM FX ACX2MT-DPH-SM KVM Extender Transmitter |
| Product Type | KVM Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 32800 ft (9997440 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 2 |
| Miscellaneous | |
| Platform Supported | PC,Sun,Mac,Unix,Linux |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
[/custom-specifications]
[custom-options]
| Product | Black Box DKM FX Extender Modular Housing, 2-Slot Chassis with Integrated Power Supply - 5.75" (146.05 mm) Height x 7.50" (190.50 mm) Width x 11" (279.40 mm) Depth |
| SKU | ACXMODH2R-P-R2 |
| Sale Price | $774.95 |
| Product | Black Box DKM FX Modular KVM Extender Housing - 2-Slot Chassis with Power Supply - For Switch |
| SKU | ACXMODH2-R2 |
| Sale Price | $262.95 |
| Product | Black Box KVM Extender Housing Chassis - 1.70" (43.18 mm) Height x 17.50" (444.50 mm) Width x 18.50" (469.90 mm) Depth |
| SKU | ACXMODH6R-R2 |
| Sale Price | $1077.95 |
| Product | Black Box DKM FX Modular KVM Extender Housing Chassis - Power Supply, 4-Slot - Rack-mountable |
| SKU | ACXMODH4-R2 |
| Sale Price | $545.95 |
| Product | Black Box Expansion Chassis - Rack-mountable - 1U |
| SKU | ACXMODH2R-R2 |
| Sale Price | $580.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
User-Manual
[/custom-user-manual]
