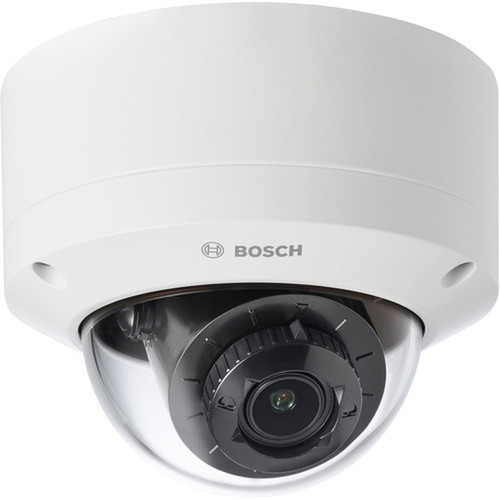

Bosch NDE-5703-A FlexiDome 5MP Outdoor Dome Network Camera - 2592 x 1944 - Varifocal Lens - IP66 IK10 - H. 265 - PoE - White/Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.7" CMOS image sensor that provides 5-megapixel resolution at up to 30 frames per second. The varifocal lens offers a 3.2x optical zoom range from 3.2mm to 10.5mm, with a maximum aperture of f/1.6 for improved low-light performance.
Video compression includes H.264, H.265 (HEVC), and MJPEG formats, with H.265 providing efficient bandwidth utilization. The camera supports a horizontal field of view from 96° at the widest setting to 29° at maximum zoom, with vertical coverage from 71° to 22°.
Network connectivity is through wired Ethernet with comprehensive protocol support including IPv4/IPv6, TCP/UDP, HTTP/HTTPS, RTP/RTCP, and SNMP for integration into diverse surveillance systems. Local storage is available via memory card for backup recording.
Relevant factors for this section include HD Recording, Image Sensor Type, Image Sensor Size, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Superior Image Quality
The 5-megapixel resolution captures detailed surveillance footage at 2592 x 1944, while Wide Dynamic Range (WDR) maintains image clarity in challenging lighting conditions with both bright and dark areas.
- 5MP resolution for detailed identification
- WDR for high-contrast scenes
- Day/Night operation with automatic switching
Robust Outdoor Design
With IP66 waterproof/dustproof rating and IK10 impact resistance, this camera withstands harsh environmental conditions including heavy rain, dust ingress, and physical impacts.
- IP66 rated for outdoor use
- IK10 impact protection
- Operates from -40°F to 131°F (-40°C to 55°C)
Flexible Installation
Multiple power options including Power over Ethernet (PoE), 12V DC, and 24V AC provide installation flexibility, while the varifocal lens allows precise field-of-view adjustment during setup.
- PoE, DC, and AC power options
- Varifocal lens for precise framing
- Dome form factor for discreet mounting
Deployment / Use Cases
The Bosch FlexiDome NDE-5703-A is engineered for professional surveillance applications where reliable outdoor monitoring is essential. Its combination of high-resolution imaging, environmental durability, and flexible connectivity makes it suitable for various security scenarios.
Commercial and industrial facilities benefit from the camera's robust construction and wide operating temperature range, ensuring consistent performance in parking lots, loading docks, perimeter fencing, and building exteriors. The IP66 and IK10 ratings provide confidence in harsh weather conditions and potential vandalism attempts.
Perimeter Security
Monitor property boundaries, gates, and fence lines with the camera's varifocal lens that allows precise zoom adjustment to cover specific areas of interest while maintaining image clarity for identification purposes.
Retail & Commercial Exteriors
Deploy at building entrances, parking areas, and delivery zones where the 5MP resolution captures license plates and facial details, while the dome housing provides a discreet appearance that doesn't draw unnecessary attention.
Physical Profile
The camera features a dome form factor with dimensions of 4.80" (122 mm) in height and 5.83" (148 mm) in diameter. Weighing approximately 2.49 lb (1129.45 g), the compact design facilitates installation on ceilings, walls, or poles while maintaining a low profile.
The dual-color housing in white and black offers aesthetic options to blend with different architectural styles. The dome enclosure not only provides weather protection but also helps conceal the camera's viewing direction, enhancing its deterrent effect while maintaining surveillance discretion.
- Height
- 4.80" (122 mm)
- Weight
- 2.49 lb (1129.45 g)
- Length
- 3.2 mm (0.13")
Highlights
- 5-megapixel resolution for detailed surveillance footage
- Varifocal lens with 3.2x optical zoom for flexible framing
- IP66 and IK10 ratings for outdoor durability
- H.265 video compression for efficient bandwidth use
- Power over Ethernet (PoE) support for simplified installation
- Wide Dynamic Range for challenging lighting conditions
- Day/Night operation with automatic switching
- Operating temperature range from -40°F to 131°F (-40°C to 55°C)
- Multiple power options: PoE, 12V DC, and 24V AC
- Local storage via memory card for backup recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDE5703A |
| Brand Name | Bosch |
| Product Line | FlexiDome |
| Product Series | 5100i |
| Product Name | Fixed Dome 5MP HDR 3.4-10.2mm IP66 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color,Monochrome |
| Field of View | Horizontal field of view 96º - 29º Vertical field of view 71º - 22º |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.265 (HEVC) |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10.5 mm (0.41") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.2x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Ethernet |
| Protocols | IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,IGMP v2,IGMP v3,ICMPv6,ICMP,APIPA,DHCP,SNMPv1 (MIB2),SNMPv3 (MIB2),TLS,DNS,DNSv6,DDNS,SMTP,UPnP,iSCSI,LLDP,SOAP,CHAP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC,12 V DC |
| Power Source Type | DC,PoE,AC |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Form Factor | Dome |
| Height | 4.80" (122 mm) |
| Diameter | 5.83" (148 mm) |
| Weight (Approximate) | 2.49 lb (1129.45 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Day/Night,Privacy Masking,White Balance |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the resolution of this Bosch FlexiDome camera?
The Bosch FlexiDome NDE-5703-A provides 5-megapixel resolution at 2592 x 1944 pixels. This high resolution delivers detailed surveillance footage suitable for identification purposes, with a maximum frame rate of 30 frames per second for smooth video capture in real-time monitoring scenarios.
Is this camera suitable for outdoor installation?
Yes, this camera is specifically designed for outdoor use with an IP66 rating for protection against dust and water jets, along with an IK10 impact resistance rating. It operates in temperatures from -40°F to 131°F (-40°C to 55°C) and handles up to 100% humidity, making it reliable in various weather conditions.
What type of lens does this camera have?
This camera features a varifocal lens with a 3.2x optical zoom range from 3.2mm to 10.5mm. The lens has a maximum aperture of f/1.6 for improved low-light performance and provides a horizontal field of view from 96° at the widest setting to 29° at maximum zoom, allowing precise adjustment during installation.
What power options are available for this network camera?
The camera supports multiple power options including Power over Ethernet (PoE), 12V DC, and 24V AC. This flexibility allows installation in locations with different power infrastructure, with PoE particularly useful for simplified cabling where both data and power are delivered through a single Ethernet cable.
What video compression formats does this camera support?
The camera supports H.264, H.265 (HEVC), and MJPEG video compression formats. H.265 provides efficient bandwidth utilization while maintaining video quality, making it ideal for surveillance systems where network bandwidth conservation is important without compromising on image detail.
Does this camera support local storage?
Yes, the camera includes support for local storage via memory card. This allows for backup recording directly at the camera location, providing redundancy in case of network issues or as supplemental storage alongside network video recorder (NVR) systems for comprehensive surveillance data management.
