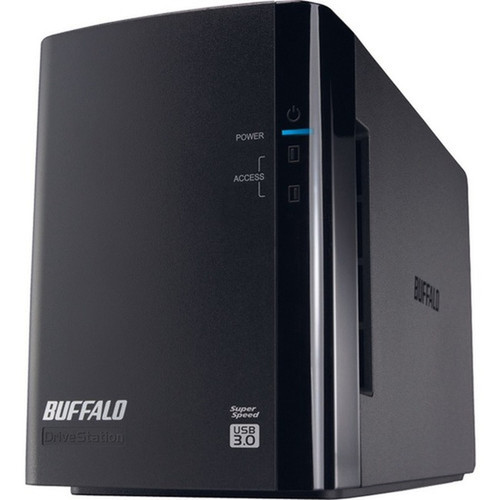

Buffalo HD-WH4TU3R1 DriveStation Pro DAS Array - 2 Bay - 4 TB Installed - USB 3.0 - RAID 0/1/JBOD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DAS array features a two-bay architecture, with both bays populated by hard drives to achieve the total 4 TB installed capacity. The storage subsystem is built around a Serial ATA/300 controller, which supports RAID levels 0, 1, and JBOD, allowing administrators to tailor the array for performance, redundancy, or independent drive operation based on specific workload requirements.
Connectivity is handled through a single USB 3.0 host interface, providing up to 5 Gbps theoretical transfer speeds for fast data access and backup operations. This universal interface ensures broad compatibility with modern Windows and macOS computers. The drive interface remains Serial ATA/300, ensuring stable communication with the installed hard drives.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Total Hard Drive Capacity Installed, Number of Total Expansion Bays. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DriveStation Pro HD-WH4TU3R1 delivers several distinct advantages for business storage needs. Its pre-configured, out-of-the-box operation eliminates setup time, while the robust RAID support and hot-swappable drive design provide critical data protection and maintainability. The use of NAS-optimized hard drives further ensures reliability under constant workloads.
Comprehensive Data Protection
RAID 1 mirroring safeguards data against a single drive failure, while hot-swappable bays allow for drive replacement without system downtime, maintaining business continuity.
- RAID 1 for redundancy
- Hot-swap capable bays
- 3-year limited warranty
Universal Connectivity & Backup
USB 3.0 ensures high-speed connections to both PC and Mac systems. Integrated support for NovaBACKUP® Buffalo Edition and Apple Time Machine® enables automated, scheduled backups across platforms.
- USB 3.0 for PC/Mac
- NovaBACKUP® support
- Time Machine® compatible
Deployment / Use Cases
This DAS array is optimally deployed as a dedicated storage expansion unit for individual workstations or as a local backup target for small office servers. Its simplicity and performance make it suitable for environments where network-attached storage (NAS) is unnecessary or where direct, high-speed access is preferred.
Common use cases include serving as a primary storage repository for video editing workstations, housing large design files for creative teams, functioning as a local backup destination for critical server data using bundled software, or expanding the storage capacity of a desktop used for data analysis or archival purposes. The compact size allows it to fit neatly on a desk or in a small server closet.
Physical Profile
The DriveStation Pro HD-WH4TU3R1 features a compact, desktop-oriented chassis measuring 5 inches in height, 3.39 inches in width, and 8.03 inches in depth. This modest footprint allows for flexible placement on or under a desk, in a media cabinet, or alongside a tower server. The design prioritizes functional accessibility for drive maintenance while maintaining a professional aesthetic suitable for office environments.
- Width
- 3.39" (86 mm)
- Depth
- 8.03" (204 mm)
- Height
- 5" (127 mm)
Highlights
- 2-bay DAS array with 4 TB of pre-installed storage capacity
- Supports RAID 0, 1, and JBOD for performance or data protection
- High-speed USB 3.0 host interface for universal PC and Mac connectivity
- Includes NAS-optimized hard drives rated for 24/7 continuous operation
- Hot-swappable drive bays enable maintenance without downtime
- Bundled NovaBACKUP® Buffalo Edition software for automated PC/server backups
- Native Apple Time Machine® support for scheduled Mac backups
- Compact desktop form factor with a small footprint
- TAA compliant and backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Buffalo Americas, Inc |
| Manufacturer Part Number | HD-WH4TU3R1 |
| Brand Name | Buffalo |
| Product Line | DriveStation Pro |
| Product Series | HD-WHU3/R1 |
| Product Model | HD-WH4TU3/R1 |
| Product Name | DriveStation Pro HD-WH4TU3/R1 DAS Array |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | 2 |
| Total Hard Drive Capacity Installed | 4 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Controllers | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/300 |
| Host Interface | USB 3.0 |
| Physical Characteristics | |
| Height | 5" (127 mm) |
| Width | 3.39" (86 mm) |
| Depth | 8.03" (204 mm) |
| Miscellaneous | |
| Country of Origin | Japan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total storage capacity of this Buffalo DAS array?
This Buffalo DriveStation Pro array comes with two hard drives pre-installed, providing a total usable capacity of 4 terabytes (4 TB). This capacity is available out of the box and can be configured using the supported RAID modes.
Which RAID configurations does this DAS array support?
The array supports RAID 0 (striping for performance), RAID 1 (mirroring for data redundancy), and JBOD (Just a Bunch of Disks, treating each drive independently). This flexibility allows you to optimize for speed, data protection, or simple storage expansion based on your needs.
How do I connect this DAS array to my computer?
You connect the array to your computer using the included USB 3.0 cable. The USB 3.0 interface provides high-speed data transfer and is compatible with both Windows PCs and Apple Mac computers, requiring no additional network configuration.
Are the hard drives in this array hot-swappable?
Yes, the drive bays are designed to support hot-swapping. This means you can remove and replace a hard drive while the array is powered on and operating, which is essential for maintaining uptime during drive failures or upgrades without interrupting access to data.
What backup software is included with this DAS array?
The array includes a license for NovaBACKUP® Buffalo Edition, which provides automated backup scheduling for Windows PCs and servers. For Mac users, the array offers native support for Apple's Time Machine®, allowing for scheduled backups directly through macOS.
What are the physical dimensions and warranty terms?
The unit measures 5 inches high, 3.39 inches wide, and 8.03 inches deep, making it compact for desktop use. It is backed by a 3-year limited warranty from Buffalo and is TAA compliant, meeting specific government procurement requirements.
