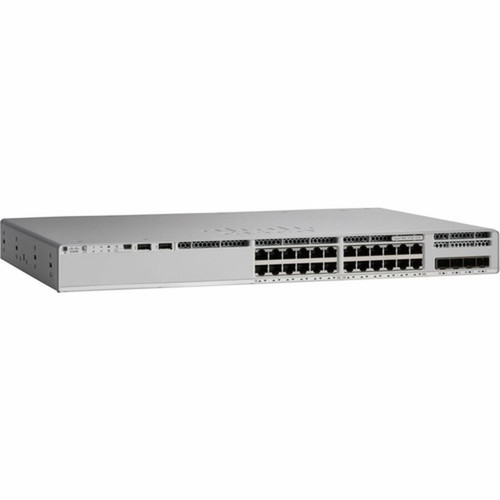

Cisco C9200L-24P-4X-E Catalyst 9200 Layer 3 Switch - 24 Port Gigabit + 4 x 10G SFP+ Uplinks - 370W PoE - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Catalyst 9200 switch operates at Layer 3, providing routing capabilities that enable scalable network designs with VLAN segmentation and inter-VLAN routing. The 24 Gigabit Ethernet ports support 10/100/1000Base-T connections over twisted pair cabling, while the four dedicated SFP+ slots deliver 10GBase-X uplink connectivity for high-bandwidth aggregation to core switches or servers.
The switching fabric handles mixed media environments with support for both copper and fiber optic connections. Stack port functionality allows multiple switches to be managed as a single logical unit, simplifying administration and increasing operational efficiency. The built-in power supply delivers consistent voltage regulation, and redundant power supply support ensures continuous operation in critical deployments.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch delivers several distinct advantages for business network deployments. The combination of high-density Gigabit access ports with multi-gigabit uplink capacity creates a balanced architecture that prevents bottlenecks while supporting bandwidth-intensive applications.
Power Over Ethernet Ready
With 370W of PoE budget, this switch can power numerous PoE+ devices simultaneously, eliminating the need for separate power injectors and reducing installation complexity for IP telephony, wireless access points, and surveillance systems.
- Supports PoE+ devices
- Centralized power management
- Reduced cable requirements
Scalable Uplink Architecture
The four SFP+ slots provide flexible 10 Gigabit uplink options using either copper or fiber transceivers, enabling high-speed connections to network cores, servers, or other switches without sacrificing port density for access devices.
- 10GBase-X compatibility
- Fiber or copper media
- Future-proof connectivity
Enterprise Management Features
As a fully managed Layer 3 switch, it offers advanced features including Quality of Service (QoS), access control lists (ACLs), VLAN support, and comprehensive monitoring capabilities through Cisco's management interfaces.
- Granular traffic control
- Network segmentation
- Performance monitoring
Deployment / Use Cases
The Catalyst 9200 C9200L-24P-4X-E is ideally suited for medium-sized business networks requiring reliable switching with advanced features. Its port configuration and PoE capabilities make it particularly effective in environments where both data connectivity and device power need to be delivered from a single infrastructure component.
In office deployments, this switch can serve as an access layer switch connecting workstations, IP phones, and wireless access points while providing high-speed uplinks to the network core. For retail environments, it supports point-of-sale systems, digital signage, and security cameras with both data and power over standard Ethernet cabling. Educational institutions can leverage the Layer 3 capabilities for classroom network segmentation while using the PoE budget to power learning technology throughout campus buildings.
Office Network Foundation
Provides connectivity for workstations, conference rooms, and common areas with sufficient PoE budget for VoIP phones and wireless access points, creating a unified communications infrastructure.
Retail & Hospitality Backbone
Supports point-of-sale systems, digital menu boards, and security cameras with reliable power and data delivery, ensuring operational continuity in customer-facing environments.
Physical Profile
Designed for standard 19-inch equipment racks, this switch occupies a single rack unit (1U) with dimensions of 1.73" height, 17.50" width, and 11.30" depth. The compact form factor maximizes port density per rack space while maintaining adequate airflow for thermal management. The rack-mountable design includes proper mounting hardware compatibility and cable management features to maintain organized installations in data closets or network rooms.
- Width
- 17.50" (444.50 mm)
- Depth
- 11.30" (287.02 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 12.13 lb (5502.08 g)
Highlights
- 24 Gigabit Ethernet ports with 10/100/1000Base-T auto-negotiation
- 4 dedicated SFP+ slots for 10 Gigabit uplink connectivity
- 370W PoE budget supports multiple PoE+ devices simultaneously
- Layer 3 switching capabilities for advanced routing and segmentation
- Fully manageable with comprehensive feature set for traffic control
- Stack port enables multiple switches to operate as a single unit
- 1U rack-mountable form factor for space-efficient deployment
- Redundant power supply support for increased reliability
- Supports both twisted pair and fiber optic media types
- Lifetime limited warranty from Cisco
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9200L-24P-4X-E |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9200 |
| Product Model | C9200L-24P-4X |
| Product Name | Catalyst 9200 C9200L-24P-4X Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 11.30" (287.02 mm) |
| Weight (Approximate) | 12.13 lb (5502.08 g) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can this switch power with PoE?
The switch provides a 370W PoE budget, which can support approximately 24 PoE+ devices at maximum 30W each, though actual capacity depends on individual device power requirements. This substantial budget allows simultaneous operation of multiple IP phones, wireless access points, and security cameras without external power sources.
What types of uplink connections does this switch support?
This switch includes four SFP+ slots that support 10 Gigabit Ethernet uplinks using either copper or fiber optic transceivers. The 10GBase-X compatibility enables high-speed connections to core switches, servers, or network aggregation points, providing flexible uplink options based on distance and media requirements.
Can multiple switches be managed together?
Yes, this switch includes stack port functionality that allows multiple Catalyst 9200 switches to be connected and managed as a single logical unit. This stacking capability simplifies configuration, improves management efficiency, and enables unified operation across multiple physical switches in distributed deployments.
What rack space does this switch require?
The switch occupies one rack unit (1U) in a standard 19-inch equipment rack, with dimensions of 1.73 inches in height, 17.50 inches in width, and 11.30 inches in depth. This compact form factor maximizes port density per rack space while maintaining proper airflow for reliable operation in rack-mounted environments.
Does this switch support redundant power?
Yes, the switch supports redundant power supply configurations, allowing connection of a secondary power source for increased reliability. This feature ensures continuous operation in the event of a primary power supply failure, making the switch suitable for deployments where network availability is critical.
What management features are available?
As a fully managed Layer 3 switch, it offers comprehensive management capabilities including VLAN configuration, Quality of Service (QoS) policies, access control lists (ACLs), port monitoring, and traffic analysis. These features provide granular control over network traffic, security policies, and performance optimization through Cisco's management interfaces.
