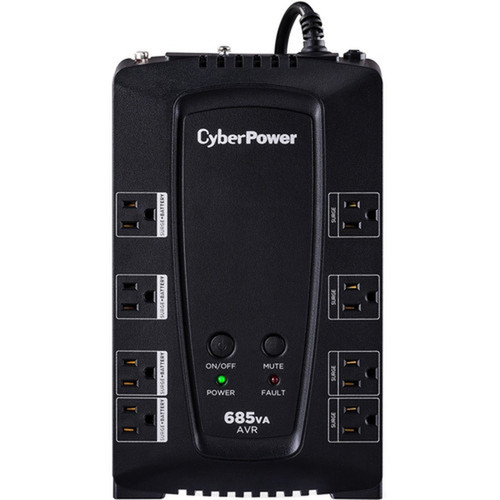

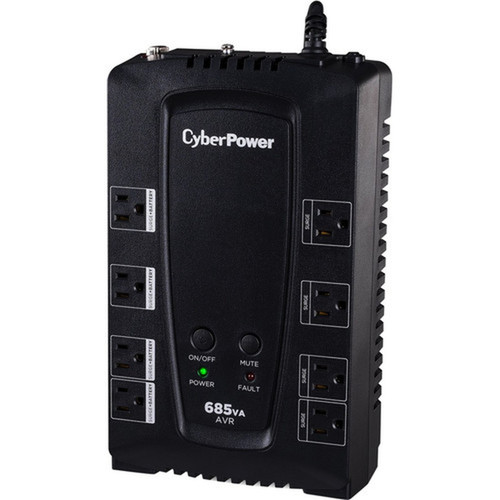

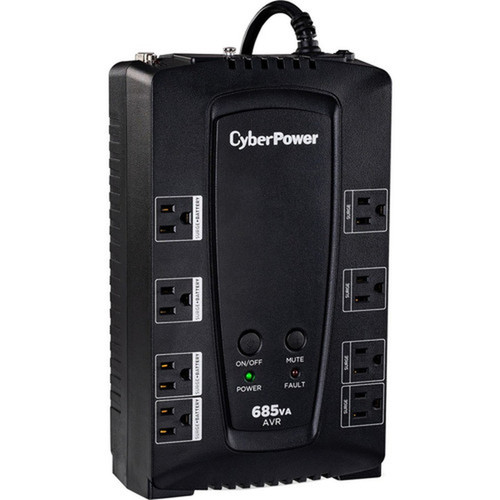

CyberPower CP685AVRG AVR UPS - 685VA/390W Line-Interactive - 120VAC - 8 Outlets - Compact - PowerPanel Personal - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower CP685AVRG AVR UPS is a line-interactive uninterruptible power supply engineered to protect sensitive electronics from power disruptions and voltage irregularities. With 685VA/390W capacity, it delivers reliable backup power for critical devices during outages while incorporating automatic voltage regulation to correct minor fluctuations without switching to battery power. This intelligent approach extends battery life and maintains stable operation for connected equipment.
Designed for compact deployment, this unit features eight NEMA 5-15R outlets—four with surge protection and battery backup plus four with surge protection only—providing flexible power distribution for multiple devices. The included PowerPanel Personal software enables intelligent battery management, runtime estimation, and graceful shutdown of connected systems during extended outages. ENERGY STAR qualification ensures energy-efficient operation that reduces electricity costs while meeting environmental standards.
The CP685AVRG combines essential UPS functionality with practical design considerations for small office, home office, and residential environments. Its line-interactive topology provides reliable protection against power outages, surges, and brownouts while maintaining compatibility with most modern electronics. The compact form factor makes it suitable for spaces where traditional tower UPS units would be impractical.
Technical Overview
Engineered with line-interactive topology, the CP685AVRG maintains stable 120V output through automatic voltage regulation across a 90-140V input range. This technology corrects minor voltage fluctuations without draining battery power, ensuring consistent performance and extended battery life. The 4ms transfer time ensures seamless transition to battery power during outages, while simulated sine wave output is compatible with computers, networking equipment, home theater components, and most consumer electronics.

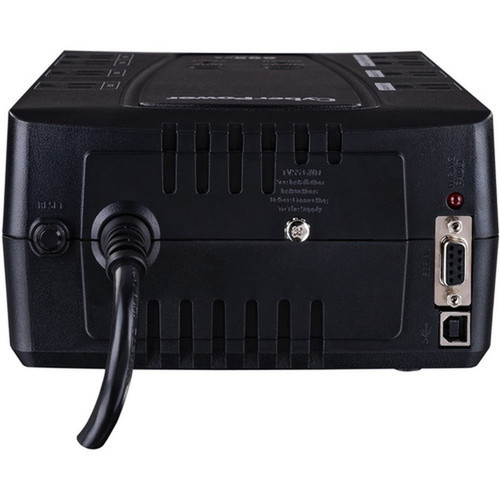

The unit includes comprehensive connectivity options with eight NEMA 5-15R outlets configured for optimal device protection. Four outlets provide both surge protection and battery backup for critical equipment, while four additional outlets offer surge protection only for peripheral devices. A network port enables management connectivity for monitoring and configuration through the included PowerPanel Personal software.
Built with modern sustainability standards, the CP685AVRG features RoHS compliance and environmentally friendly construction. The compact footprint measures 11" wide × 3.5" deep × 6.8" high, making it suitable for under-desk installation, media centers, or network closets. With proper ventilation for heat dissipation during extended operation, this UPS delivers reliable protection in space-constrained environments.
Key Product Advantages
The CP685AVRG combines essential UPS features with practical design considerations for small office and home office environments. Its compact form factor fits easily under desks or in tight spaces while delivering full 685VA capacity.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Automatic Voltage Regulation, Intelligent Power Management, Comprehensive Protection.
Automatic Voltage Regulation
Corrects minor voltage fluctuations without draining battery, extending runtime and battery life while maintaining stable power to connected equipment.
Intelligent Power Management
PowerPanel Personal software provides battery monitoring, runtime estimation, and automatic safe shutdown of connected systems during extended outages.
Comprehensive Protection
Eight-outlet configuration with surge protection on all outlets and battery backup on four outlets protects multiple devices simultaneously.
Deployment / Use Cases
This UPS is engineered for environments where reliable power is essential but space is limited. Its compact design makes it suitable for under-desk installation in offices, media centers, or network closets where traditional tower UPS units would be impractical.
Home Office & Small Business
Protect desktop computers, monitors, routers, and modems to maintain productivity during power interruptions. The 390W capacity supports typical workstation setups with room for additional peripherals.
Network Infrastructure
Ensure continuous operation of networking equipment including switches, routers, and VoIP phone systems. The 2-minute runtime at full load provides sufficient time for graceful shutdown or ride-through of brief outages.

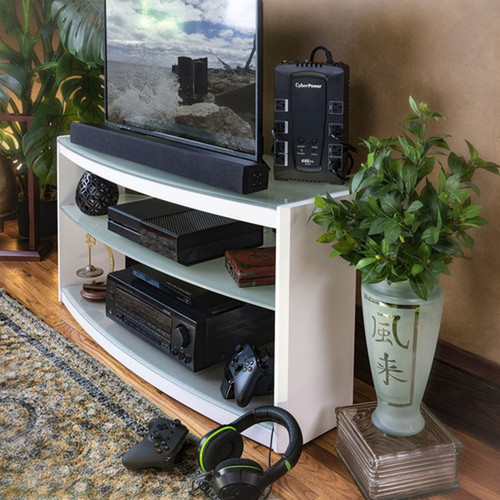

Entertainment Systems
Safeguard home theater components, gaming consoles, and audio equipment from power surges and brownouts. Simulated sine wave output is compatible with most consumer electronics.
Physical Profile
The CP685AVRG features a compact desktop form factor measuring 11" wide × 3.5" deep × 6.8" high, designed for practical deployment in space-constrained environments. Weighing 12 pounds, it offers stable placement on desks, shelves, or floors while maintaining a low profile that doesn't obstruct workspace. The design incorporates proper ventilation for heat dissipation during extended operation, ensuring reliable performance in various installation scenarios.
This physical configuration makes the unit suitable for under-desk installation in offices, placement in media centers, or deployment in network closets where traditional tower UPS units would be impractical. The compact dimensions allow for flexible positioning while providing full 685VA capacity and comprehensive outlet access. The sturdy construction ensures stable operation in typical office and residential environments.
- Width
- 11" (279.40 mm)
- Depth
- 3.50" (88.90 mm)
- Height
- 6.80" (172.72 mm)
- Weight
- 12 lb (5443.11 g)
What's in the Box
The CP685AVRG AVR UPS ships complete with all necessary components for immediate deployment.
Highlights
- 685VA/390W line-interactive UPS with automatic voltage regulation
- Eight NEMA 5-15R outlets (4 surge+battery, 4 surge only)
- Compact desktop form factor: 11"W × 3.5"D × 6.8"H
- 120V input/output with 90-140V input range
- 2-minute runtime at full load, 8-hour recharge time
- PowerPanel Personal management software included
- ENERGY STAR qualified for energy efficiency
- RoHS compliant and environmentally friendly
- 3-year limited warranty with connected equipment protection
- Simulated sine wave output compatible with most electronics
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP685AVRG |
| Brand Name | CyberPower |
| Product Series | AVR UPS |
| Product Model | CP685AVRG |
| Product Name | CP685AVRG AVR UPS Systems |
| Packaged Quantity | 1 / Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Application/Usage | Desktop Computer,Network Device,Home Theater,Router,Modem,VoIP Phone System,Workstation |
| Power Description | |
| Load Capacity (VA) | 685 VA |
| Load Capacity (Watt) | 390 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 90 V AC - 140 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Simulated Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 2 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Height | 6.80" (172.72 mm) |
| Width | 11" (279.40 mm) |
| Depth | 3.50" (88.90 mm) |
| Form Factor | Compact |
| Weight (Approximate) | 12 lb (5443.11 g) |
| Miscellaneous | |
| Package Contents | CP685AVRG AVR UPS Series User's Manual USB Device Cable PowerPanel Personal Software CD or Free Download Card |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower CP685AVRG AVR UPS provides 685 VA and 390 W of power capacity, suitable for protecting desktop computers, networking devices, and other sensitive electronics from power outages and voltage fluctuations.
What is the runtime at full load?
At full load, this UPS offers a backup runtime of 2 minutes, providing sufficient time for graceful shutdown of connected equipment during brief power interruptions or to ride through short outages.
How many outlets does this UPS have?
It features eight NEMA 5-15R outlets: four with surge protection and battery backup for critical devices, and four with surge protection only for peripherals, allowing flexible power distribution for multiple electronics.
What are the input and output voltage specifications?
The UPS operates with 120 V AC input and output, with an input voltage range of 90-140 V AC. This automatic voltage regulation helps correct minor fluctuations without draining the battery, ensuring stable power delivery.
Is this UPS designed for rack or tower deployment?
This unit has a compact desktop form factor, making it ideal for under-desk installation, media centers, or network closets where space is limited, rather than rack or tower configurations.
What management software is included?
The UPS includes PowerPanel Personal software, which enables battery monitoring, runtime estimation, and automatic safe shutdown of connected systems during extended outages, enhancing management and protection capabilities.
