CyberPower CP800AVR AVR UPS - 800VA/450W Line-Interactive Battery Backup with 8 Outlets - 120V - Compact - PowerPanel Personal - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

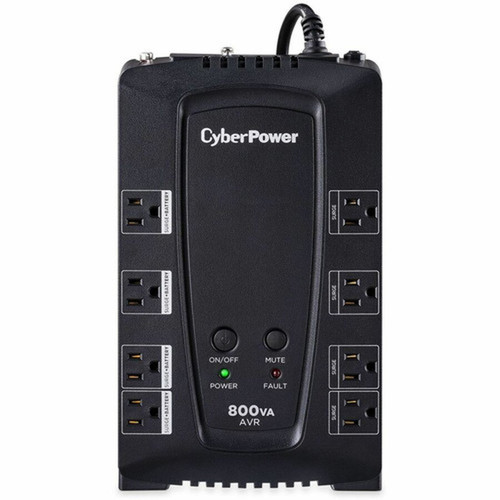

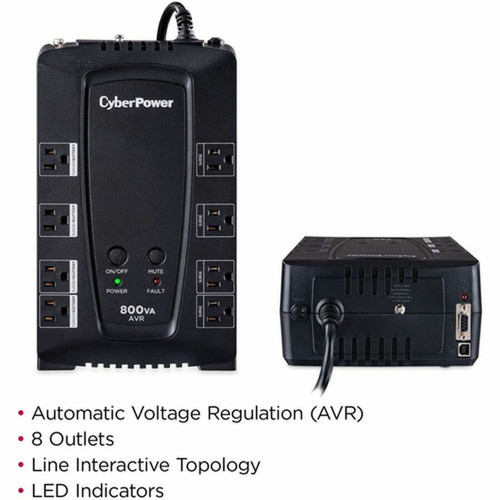

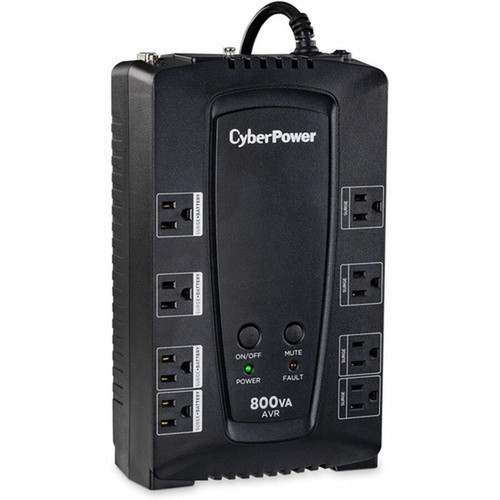

The CyberPower CP800AVR AVR UPS is a line-interactive battery backup system engineered to deliver reliable power protection for critical electronics in home and office environments. With an 800VA/450W capacity, it safeguards desktop computers, workstations, home theater systems, and network equipment from power interruptions, surges, and voltage fluctuations, ensuring uninterrupted operation during brief outages.
This compact unit features automatic voltage regulation (AVR) to correct minor voltage variations without switching to battery power, extending runtime and battery life. Its simulated sine wave output is compatible with most electronics, while the included PowerPanel Personal software provides real-time monitoring, graceful shutdown capabilities, and energy usage reporting for connected devices. The UPS includes eight NEMA 5-15R outlets—four with battery backup and surge protection, and four dedicated to surge-only protection—offering flexible power distribution for various setups.
Designed for efficiency, the CP800AVR incorporates GreenPower UPS™ bypass technology to reduce energy consumption and is ENERGY STAR certified. It operates with a 120V AC input and output at 60 Hz, maintaining stable power through a 4 ms transfer time. The maintenance-free lead-acid battery provides runtime of 1.2 minutes at full load and 13.5 minutes at half load, with a typical recharge time of 8 hours. Backed by a 3-year warranty and technical support, this UPS combines robust protection with user-friendly features for dependable power management.
Technical Overview
Engineered with a line-interactive topology, the CP800AVR delivers efficient power conditioning and backup for sensitive electronics. It features automatic voltage regulation to stabilize input voltage fluctuations between 90V and 140V, ensuring consistent 120V AC output without unnecessary battery drain. The unit's simulated sine wave output is suitable for most computers, networking gear, and home theater equipment, while its 4 ms transfer time minimizes disruption during power events.

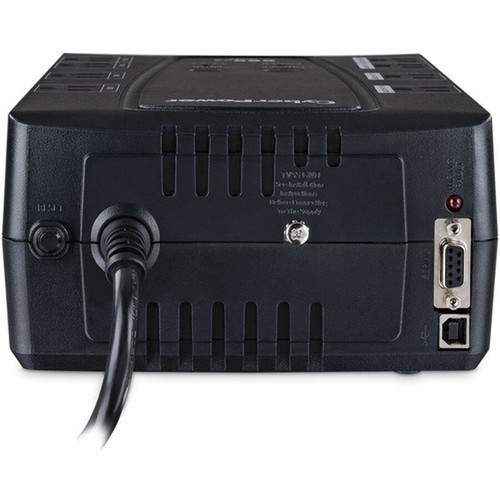

Connectivity and management options include serial and USB ports, with HID-compliant USB support for seamless integration with PowerPanel Personal software. This software enables remote monitoring, automatic shutdown, and alerts for low battery, on-battery operation, and overload conditions. The UPS also includes a circuit breaker for overload protection, status indicators for power and wiring faults, and audible alarms to notify users of critical events.
The maintenance-free lead-acid battery is rated at 12V with a 9000 mAh capacity, user-replaceable, and operates within a maximum temperature of 95°F (35°C). Surge protection is rated at 1030 joules, with a cord length of 6 ft (1.83 m) and a NEMA 5-15P plug for standard North American outlets. Environmental compliance includes RoHS standards, and the unit is manufactured in the Philippines with an environmentally friendly design.
Key Product Advantages
The CP800AVR combines robust power protection with user-friendly features, making it an ideal choice for both home and office environments. Its automatic voltage regulation ensures consistent power delivery, while the compact form factor allows for flexible placement under desks or in tight spaces.
Comprehensive Outlet Protection
Eight NEMA 5-15R outlets provide versatile connectivity, with four offering battery backup and surge protection, and four dedicated to surge-only protection for non-critical devices.
- 4 battery & surge outlets
- 4 surge-only outlets
- NEMA 5-15P plug type
Advanced Management Capabilities
PowerPanel Personal software enables remote monitoring, automatic shutdown, and energy usage reporting, while audible alarms alert users to low battery, on-battery, and overload conditions.
- Real-time power monitoring
- Graceful shutdown features
- Low battery alerts
Deployment / Use Cases
This UPS is suited for protecting sensitive electronics in environments where power quality is inconsistent. Its 800VA capacity supports typical desktop setups, including computers, monitors, and peripherals, ensuring uninterrupted operation during brief outages.
Common applications include home offices, small business workstations, network closets with routers and modems, and entertainment centers with home theater equipment. The compact design and black finish integrate discreetly into various settings.
Relevant product facts for this section include AVR: Yes, Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Load Capacity (VA): 800 VA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Home Office & Workstation Protection
Safeguard computers, monitors, and external drives from data loss during power failures, with enough runtime to save work and shut down safely.
Network & VoIP Support
Keep routers, modems, and VoIP phone systems online during outages, maintaining internet connectivity and communication lines.
Physical Profile
The CP800AVR features a compact black chassis designed for desktop placement, with dimensions of 6.80" (172.72 mm) in height, 11" (279.40 mm) in width, and 3.50" (88.90 mm) in depth. Weighing 12.74 lb (5778.77 g), its low-profile footprint allows for flexible installation under desks, on shelves, or in network closets without occupying excessive space.
The black finish integrates discreetly into various settings, from home offices to entertainment centers. The compact form factor is practical for deployment planning, ensuring the UPS fits easily in tight spaces while providing robust power protection. Its design supports efficient heat dissipation and easy access to outlets and controls, making it suitable for both temporary and permanent installations in environments with limited room.
- Width
- 11" (279.40 mm)
- Depth
- 3.50" (88.90 mm)
- Height
- 6.80" (172.72 mm)
- Weight
- 12.74 lb (5778.77 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- 800VA/450W line-interactive UPS with automatic voltage regulation
- 8 outlets: 4 with battery backup & surge protection, 4 surge-only
- Compact black design with dimensions 6.80" H x 11" W x 3.50" D
- Includes PowerPanel Personal software for monitoring and shutdown
- Maintenance-free 12V lead-acid battery with 9000 mAh capacity
- 1.2 minutes runtime at full load, 13.5 minutes at half load
- ENERGY STAR certified with GreenPower UPS bypass technology
- 3-year warranty with CyberPower technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP800AVR |
| Brand Name | CyberPower |
| Product Series | AVR UPS |
| Product Model | CP800AVR |
| Product Name | CP800AVR AVR UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Energy Saving | GreenPower UPS™ Bypass |
| Application/Usage | Desktop Computer,Workstation,Home Theater,Electronic Equipment,Home Network,Router,Modem,VoIP Phone System |
| Power Description | |
| Load Capacity (VA) | 800 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1030 J |
| Circuit Breaker | Yes |
| Management | |
| Alarm | Low Battery,On Battery,Overload |
| Controls/Indicators | |
| Status Indicators | Power On Wiring Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 95°F (35°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.80" (172.72 mm) |
| Width | 11" (279.40 mm) |
| Depth | 3.50" (88.90 mm) |
| Form Factor | Compact |
| Weight (Approximate) | 12.74 lb (5778.77 g) |
| Miscellaneous | |
| Package Contents | AVR CP800AVR 800VA UPS User Manual USB A+B Type Cable Serial Cable Warranty Registration Card |
| Software Included | PowerPanel® Personal |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a technical support team that will assist you with product, installation, or warranty concerns. |
User Manual
FAQ
What is the power capacity of the CyberPower CP800AVR UPS?
The CyberPower CP800AVR provides 800 VA and 450 W of power capacity, suitable for protecting desktop computers, workstations, and network equipment from power interruptions and surges.
What is the runtime at full and half load for this UPS?
At full load, the UPS offers 1.2 minutes of backup runtime, while at half load, it provides 13.5 minutes. This allows time to save work and shut down safely during power outages.
How many outlets does the CP800AVR have, and what types are included?
The UPS features eight NEMA 5-15R outlets: four with battery backup and surge protection, and four dedicated to surge-only protection, offering flexible power distribution for critical and non-critical devices.
What input and output voltage does this UPS support?
The CP800AVR operates with 120 V AC input and output at 60 Hz, making it compatible with standard North American electrical systems for consistent power delivery.
Is the CyberPower CP800AVR designed for rack or tower deployment?
This UPS has a compact form factor designed for desktop or tower deployment, with dimensions of 6.80" H x 11" W x 3.50" D, ideal for placement under desks or in tight spaces.
What management and connectivity options are included with this UPS?
The UPS includes serial and USB ports, with HID-compliant USB support for integration with PowerPanel Personal software. This software enables remote monitoring, automatic shutdown, and alerts for low battery or overload conditions.
