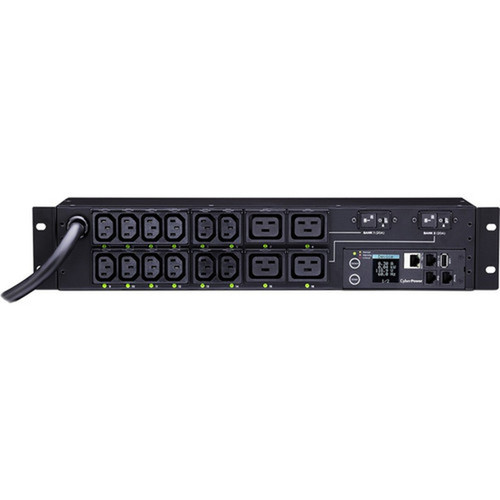

CyberPower PDU41008 Switched PDU - 16 Outlets - 12 C13 - 4 C19 - 30A - 200-240V - 2U Rackmount - SNMP - 12 ft Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched PDU operates on single-phase power with a 30A input current derated to 24A for continuous operation. The input accepts 200-240V AC with a 60Hz frequency, while output maintains the same voltage range to ensure stable power delivery to connected equipment.
Network management is comprehensive, supporting IPv4 and IPv6 protocols including SNMPv1/v3, HTTP/HTTPS, SSH, Telnet, FTP, and LDAP(S). The unit features both LED status indicators and an LCD display for local monitoring, while remote outlet switching enables power cycling of individual outlets without physical access.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDU41008 combines robust power distribution with intelligent management features that enhance data center operational efficiency. The switched outlet capability allows administrators to remotely power cycle equipment, reducing downtime and minimizing the need for physical access to racks.
Comprehensive Outlet Configuration
With 12 IEC C13 outlets for standard equipment and 4 IEC C19 outlets for high-power devices, this PDU accommodates diverse rack configurations without requiring additional adapters or power strips.
- 12 x IEC C13 outlets
- 4 x IEC C19 outlets
- Front-facing outlet placement
Advanced Network Management
Support for multiple management protocols including SNMPv3, HTTPS, and SSH ensures secure remote access and integration with existing network management systems.
- SNMPv1/v3 support
- HTTPS/SSH encryption
- Windows AD integration
Deployment / Use Cases
This switched PDU is designed for deployment in data centers, server rooms, and network closets where reliable power distribution and remote management are essential. The 2U form factor optimizes rack space while providing ample outlet capacity for dense equipment configurations.
Ideal for environments requiring individual outlet control, the PDU41008 enables scheduled power cycling, load shedding, and outlet-level monitoring. The cord retention tray and locking receptacles ensure secure connections in vibration-prone environments, while the horizontal/vertical mounting flexibility accommodates various rack configurations.
Data Center Power Management
Deploy in server racks to provide switched power control for individual servers, network switches, and storage arrays, enabling remote troubleshooting and power sequencing.
Network Infrastructure Support
Power networking equipment in telecom closets or edge computing locations with the ability to remotely reset devices and monitor power consumption at the outlet level.
Physical Profile
Constructed with a durable metal housing in black finish, this PDU measures 3.50" (88.90 mm) in height, 17.05" (433.07 mm) in width, and 4.41" (112.01 mm) in depth. The 2U rack height fits standard 19" racks, while the 12-foot power cord provides flexibility in rack placement and cable management.
- Width
- 17.05" (433.07 mm)
- Depth
- 4.41" (112.01 mm)
- Height
- 2U
- Weight
- 9.90 lb (4490 g)
- Length
- 12 ft (3.66 m)
Highlights
- Switched PDU with SNMP network interface and remote outlet control
- 16 total outlets: 12 IEC C13 and 4 IEC C19 connectors
- 30A input current with NEMA L6-30P plug for 200-240V operation
- 2U rackmount form factor with horizontal/vertical mounting options
- Comprehensive management protocols: SNMPv1/v3, HTTP/HTTPS, SSH, Telnet
- 12-foot power cord for flexible rack placement
- LED status indicators and LCD display for local monitoring
- Overload protection and cord retention for secure operation
- Metal construction with black finish, UL listed and RoHS compliant
- 3-year limited warranty with environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41008 |
| Brand Name | CyberPower |
| Product Series | Switched PDU |
| Product Model | PDU41008 |
| Product Name | PDU41008 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,4 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Features | LED Status Indicator,LCD Display |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 200 V AC,240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Management | |
| Management | Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable,Wall-mountable |
| Form Factor | Rack |
| Rack Height | 2U |
| Cord Length | 12 ft (3.66 m) |
| Height | 3.50" (88.90 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 4.41" (112.01 mm) |
| Weight (Approximate) | 9.90 lb (4490 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Miscellaneous | |
| Application/Usage | Network Device,Data Center |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of outlets does this PDU have and how many of each?
The CyberPower PDU41008 provides 16 total outlets with a mixed configuration: 12 IEC 60320 C13 outlets for standard equipment like servers and networking gear, plus 4 IEC 60320 C19 outlets for higher-power devices. All outlets are front-facing for easy access in rack installations.
What input power specifications does this PDU require?
This PDU requires a 200-240V AC single-phase power source with a NEMA L6-30P plug connection. It operates at 60Hz frequency with a 30A input current that's derated to 24A for continuous operation, making it suitable for standard North American data center power configurations.
What management capabilities does this switched PDU offer?
The PDU41008 offers comprehensive network management through multiple protocols including SNMPv1/v3, HTTP/HTTPS, SSH, Telnet, FTP, and LDAP(S). This enables remote outlet switching, power monitoring, and integration with existing network management systems for centralized control of power distribution.
How is this PDU mounted in a rack and what are its dimensions?
This PDU features a 2U rackmount form factor that occupies two rack units in standard 19" racks. It measures 3.50" in height, 17.05" in width, and 4.41" in depth, with mounting options for both horizontal and vertical installation to accommodate different rack configurations and cable management needs.
What protection features does this PDU include?
The PDU41008 includes overload protection to prevent damage from excessive current draw, along with a cord retention tray that secures power cords in place. The unit is UL listed for safety compliance and meets RoHS environmental standards, ensuring reliable operation in data center environments.
What is the warranty coverage for this CyberPower PDU?
CyberPower provides a 3-year limited warranty for the PDU41008, covering defects in materials and workmanship. The unit is also environmentally friendly and RoHS compliant, reflecting CyberPower's commitment to sustainable manufacturing practices alongside reliable power distribution solutions.
