D-Link DGS-1520-28MP Layer 3 Managed Switch - 26 Ports - 20 PoE - 4 2.5G PoE - 2 10G - 740W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers multi-gigabit performance across its port portfolio, supporting Ethernet technologies from Gigabit Ethernet up to 10 Gigabit Ethernet. The media compatibility includes both twisted pair copper cables for cost-effective deployments up to 100 meters and optical fiber via the two SFP+ expansion slots for long-distance or high-bandwidth backbone connections. Network technologies encompass 10/100/1000Base-T, 2.5GBase-T, 10GBase-T, and 10GBase-X, ensuring flexibility for diverse infrastructure needs.
Management features include full Layer 3 routing protocols, SNMP, CLI, and web-based interfaces for granular control over network traffic, security policies, and monitoring. The stack port functionality allows multiple units to be combined into a single logical switch, simplifying management and increasing scalability. Power sourcing options include standard AC power supply and PoE, with support for redundant power supplies to minimize downtime in mission-critical applications.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DGS-1520-28MP stands out with its balanced mix of high-density PoE, multi-gigabit uplinks, and enterprise-grade management in a compact 1U footprint. Its 740W PoE budget supports power-hungry devices like PTZ cameras, high-performance access points, and thin clients, reducing the need for additional power injectors and streamlining deployments. The inclusion of 2.5 Gigabit PoE ports future-proofs networks for emerging Wi-Fi 6/6E access points and other devices requiring higher throughput without immediate upgrades to 10G infrastructure.
High-Density PoE Design
With 24 PoE-capable ports (20 Gigabit + 4 2.5G), this switch powers numerous devices simultaneously, ideal for offices, schools, or retail environments deploying VoIP, surveillance, and wireless systems.
- 740W total PoE budget
- Supports PoE+ (30W per port) and PoE++
- Eliminates separate power adapters
Scalable Uplink Performance
Dual 10 Gigabit Ethernet ports provide high-speed backbone connections to servers, storage, or core switches, while SFP+ slots enable fiber optic links for extended reach or noise-immune environments.
- 2 x 10G copper uplinks
- 2 x SFP+ slots for fiber
- Supports 10GBase-T and 10GBase-X
Deployment / Use Cases
This switch is optimally deployed as an access or distribution layer switch in medium to large business networks where PoE demand and traffic segmentation are critical. In office buildings, it can centralize connectivity for IP phones, wireless access points, and desktop computers, with Layer 3 features enabling secure departmental VLANs and efficient inter-VLAN routing. For educational institutions, the high PoE budget supports classrooms with interactive displays, VoIP systems, and student device charging, while the 10G uplinks handle aggregated traffic from multiple switches back to the core.
In retail or hospitality environments, the DGS-1520-28MP powers POS systems, digital signage, and surveillance cameras, with stackability allowing easy expansion as locations grow. The 1U rack-mount design makes it suitable for data closets or server rooms with limited space, and the lifetime warranty provides long-term reliability assurance for continuous operation.
Enterprise Office Networks
Ideal for corporate offices requiring VLAN segmentation for departments, high-speed uplinks for data-intensive applications, and PoE for unified communications and wireless coverage.
- Layer 3 routing between VLANs
- PoE for VoIP phones and APs
- 10G uplinks for server access
Education & Campus Environments
Supports classrooms with high-density device connections, PoE for interactive technology, and scalable stacking for multi-building networks with centralized management.
- 740W PoE for devices and charging
- Stackable for easy expansion
- Managed for traffic prioritization
Physical Profile

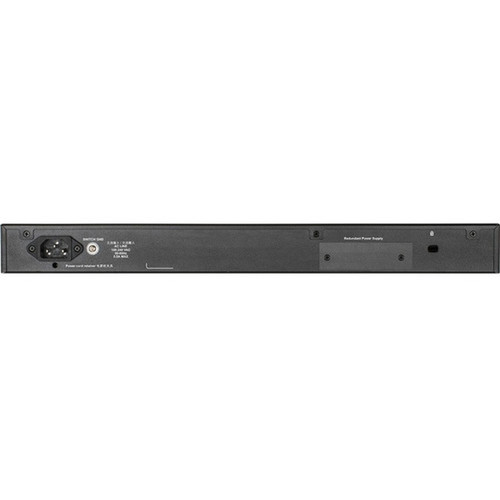

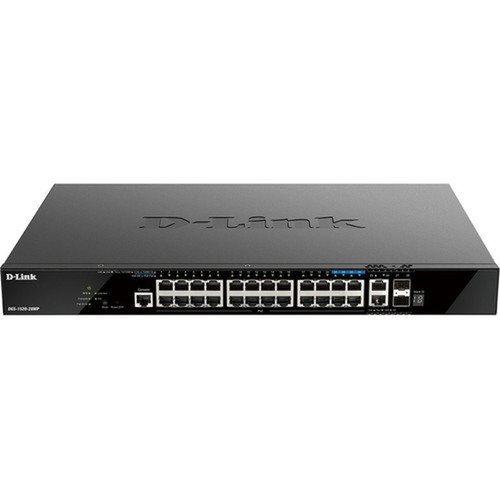

The switch features a durable metal chassis designed for 1U rack mounting, with dimensions of 1.73" (44 mm) height, 12.15" (308.50 mm) width, and 17.36" (441 mm) depth, fitting standard 19-inch racks. Its compact footprint maximizes rack space efficiency, while the approximate weight of 9.46 lb (4290 g) ensures stable installation without excessive load. The front panel includes clearly labeled ports and status LEDs for easy monitoring, and the rear accommodates power inputs and optional redundant power supplies. The rack-mountable form factor is complemented by tool-less mounting options for quick deployment in data centers or network closets.
- Width
- 12.15" (308.50 mm)
- Height
- 1.73" (44 mm)
- Weight
- 9.46 lb (4290 g)
- Length
- 17.36" (441 mm)
Highlights
- 26 total network ports with 24 PoE-capable ports (20 Gigabit PoE + 4 2.5G PoE)
- 740W total PoE budget to power high-demand devices like APs, cameras, and phones
- Dual 10 Gigabit Ethernet uplink ports for high-speed backbone connections
- Layer 3 managed switching with advanced routing, VLAN, and QoS features
- Two SFP+ expansion slots for fiber optic or additional copper uplinks
- 1U rack-mountable design with dimensions of 1.73"H x 12.15"W x 17.36"D
- Supports stacking for scalable management and increased port capacity
- Redundant power supply support for enhanced network reliability
- Lifetime warranty for long-term peace of mind and reduced TCO
- Compatible with twisted pair and optical fiber media for flexible cabling
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-1520-28MP |
| Brand Name | D-Link |
| Product Model | DGS-1520-28MP |
| Product Name | DGS-1520-28MP Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 26 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet PoE,4 x 2.5 Gigabit Ethernet PoE,2 x 10 Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,2.5GBase-T,10GBase-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply,PoE |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 453.30 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 12.15" (308.50 mm) |
| Length | 17.36" (441 mm) |
| Weight (Approximate) | 9.46 lb (4290 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE budget of the D-Link DGS-1520-28MP switch?
The D-Link DGS-1520-28MP has a total PoE budget of 740 watts. This budget is allocated across its 24 PoE-capable ports (20 Gigabit Ethernet PoE and 4 2.5 Gigabit Ethernet PoE), allowing it to power multiple PoE+ or PoE++ devices such as wireless access points, IP cameras, and VoIP phones simultaneously without requiring separate power adapters. The switch dynamically manages power distribution to connected devices based on their requirements.
How many 10 Gigabit ports does this switch include?
This switch includes two 10 Gigabit Ethernet network ports as built-in uplinks. Additionally, it features two SFP+ expansion slots that can support 10 Gigabit fiber or copper transceivers, providing up to four potential 10G connections. The 10G ports are designed for high-speed backbone links to servers, core switches, or storage systems, enhancing overall network throughput and reducing bottlenecks in data-intensive environments.
Is the DGS-1520-28MP a Layer 2 or Layer 3 switch?
The DGS-1520-28MP is a Layer 3 managed switch. It supports Layer 3 routing protocols, allowing it to perform inter-VLAN routing, implement access control lists (ACLs), and apply quality of service (QoS) policies based on IP addresses. This makes it suitable for more complex network architectures where segmentation, security, and traffic management between subnets are required, beyond basic Layer 2 switching functionality.
Can this switch be mounted in a standard server rack?
Yes, the DGS-1520-28MP is designed for 1U rack mounting and is compatible with standard 19-inch server racks. Its dimensions are 1.73 inches (44 mm) in height, 12.15 inches (308.50 mm) in width, and 17.36 inches (441 mm) in depth, ensuring a compact fit that maximizes rack space. The switch includes mounting brackets and supports tool-less installation for easy deployment in data centers, network closets, or server rooms.
Does the switch support redundant power supplies?
Yes, the DGS-1520-28MP supports redundant power supplies. This feature allows for the installation of an optional secondary power supply unit to provide backup power in case the primary unit fails, enhancing network uptime and reliability for critical applications. The switch can automatically switch to the redundant power source without interrupting operation, making it suitable for environments where continuous availability is essential.
What types of cables are compatible with this switch?
The switch supports both twisted pair copper cables and optical fiber cables. For copper connections, it is compatible with Cat5e, Cat6, or higher cables for distances up to 100 meters, supporting network technologies like 10/100/1000Base-T, 2.5GBase-T, and 10GBase-T. For fiber connections, the two SFP+ slots can accommodate SFP+ transceivers for 10GBase-X standards, enabling longer-distance links or use in electrically noisy environments where fiber is preferred.
