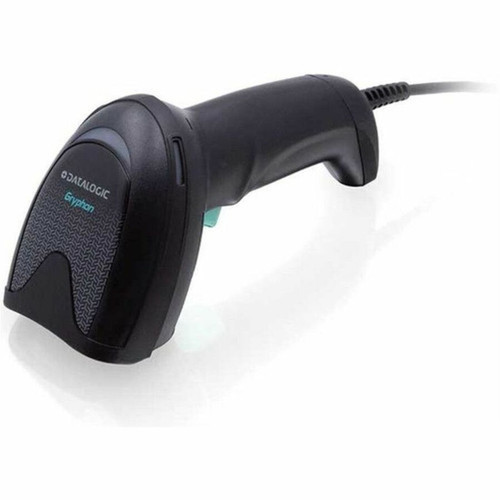

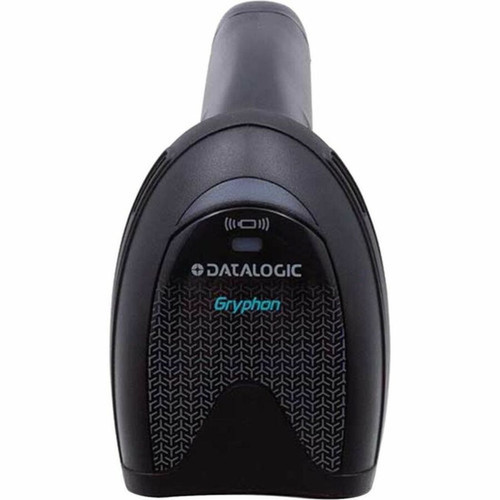

Datalogic GD4520-BKK1-HD Gryphon I Barcode Scanner Kit - 1D/2D Laser Imager - 15. 7" Scan Distance - USB Cable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GD4520 employs advanced laser imaging technology with a 1280 x 800 resolution sensor that captures detailed barcode data across a wide range of symbologies. The scanner supports comprehensive 1D and 2D barcode formats including Code 39, Data Matrix, PDF417, QR codes, and specialized formats like GS1 DataBar and Digimarc digital watermarks.
Technical specifications include a 65° reading angle for skew and pitch, 360° roll capability, and motion tolerance up to 35 inches per second. The scanner operates effectively in ambient light up to 100,000 lux and handles print contrast as low as 15%, ensuring reliable performance across various label conditions and surface materials.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Gryphon I GD4520 stands out with its combination of precision scanning, durability, and user-friendly operation. The laser imaging technology eliminates the need for additional lighting in low-ambient conditions, while the comprehensive barcode support ensures compatibility with diverse industry standards and labeling systems.
Durability & Reliability
Built to withstand repeated drops from 1.8 meters onto concrete surfaces, the GD4520 maintains consistent performance in demanding environments. The IP52 rating provides protection against dust and water droplets, extending the scanner's operational life in various workplace conditions.
- Drop-resistant construction
- IP52 ingress protection
- Extended temperature range operation
Advanced Scanning Capabilities
The scanner's high-density range and precise element resolution enable accurate reading of small, dense, or damaged barcodes. Support for specialized formats like postal codes and composite codes makes it suitable for logistics, pharmaceutical, and retail applications requiring complex data capture.
- High-density scanning range
- 3 mil minimum resolution
- Comprehensive symbology support
Deployment / Use Cases
The GD4520 Barcode Scanner Kit is optimized for fixed workstation applications where reliable, high-performance scanning is essential. The USB cable connectivity makes it ideal for point-of-sale systems, inventory management stations, and data collection points that require consistent association with specific computing devices.
In retail environments, the scanner handles product barcodes, loyalty cards, and mobile payment codes with equal efficiency. Healthcare facilities benefit from its ability to read medication barcodes, patient wristbands, and laboratory sample labels. Light manufacturing and transportation operations utilize the scanner for tracking work-in-progress, shipping labels, and asset management across temperature-controlled and industrial settings.
Retail & Point of Sale
Perfect for checkout counters, customer service desks, and inventory management stations where fast, accurate barcode reading improves transaction speed and data accuracy.
- Quick product scanning
- Loyalty card processing
- Inventory control
Healthcare & Laboratory
Supports patient identification, medication administration, and sample tracking with reliable reading of medical barcodes and specialized healthcare symbologies.
- Patient wristband scanning
- Medication verification
- Laboratory sample tracking
Physical Profile
The handheld form factor combines ergonomic design with practical durability. Weighing just 5.68 ounces, the scanner offers comfortable extended use without operator fatigue. The black finish provides professional appearance while resisting visible wear in high-use environments. The compact design integrates easily into workstation layouts without requiring excessive desk space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.68 oz (161 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.68 oz (161 g)
What's in the Box
The GD4520 Barcode Scanner Kit includes all essential components for immediate deployment.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Laser imaging technology for effective scanning in low ambient lighting conditions
- 15.7-inch scanning distance with omni-directional capture pattern
- Comprehensive 1D and 2D barcode support including specialized formats
- Drop-resistant construction withstands 1.8-meter falls onto concrete
- USB cable connectivity for reliable workstation association
- IP52 rating for dust and water droplet protection
- 1280 x 800 image sensor resolution for detailed barcode capture
- Ergonomic handheld design weighing just 5.68 ounces
- Operating temperature range from 32°F to 122°F (0°C to 50°C)
- Suitable for retail, healthcare, manufacturing, and transportation applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4520-BKK1-HD |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4520 |
| Product Name | Gryphon I GD4520 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | High Density |
| Scanning Distance | 15.70" (398.78 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,TIFF,JPEG |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 4 mil (0.10 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
User Manual
FAQ
What types of barcodes can the GD4520 scanner read?
The Datalogic GD4520 reads both 1D and 2D barcodes, including standard linear codes like Code 39 and GS1 DataBar, plus 2D formats such as Data Matrix, QR Code, PDF417, MaxiCode, and Aztec Code. It also supports specialized formats including postal codes from various countries, composite codes, and Digimarc digital watermarks, making it suitable for diverse industry applications.
How durable is this barcode scanner for industrial use?
The GD4520 features drop-resistant construction that withstands repeated drops from 1.8 meters (6 feet) onto concrete surfaces. It carries an IP52 ingress protection rating, providing defense against dust and water droplets. The scanner operates across a wide temperature range from 32°F to 122°F (0°C to 50°C) and handles humidity from 0% to 95% non-condensing, ensuring reliability in demanding environments.
What connectivity options does this scanner support?
This scanner kit uses cable connectivity with a USB host interface. The package includes a USB cable for direct connection to workstations, point-of-sale systems, or notebooks. The cable-based design provides stable, reliable data transmission without wireless interference concerns, making it ideal for fixed workstation applications where consistent device association is required.
What is the maximum scanning distance for this device?
The GD4520 achieves a scanning distance of 15.70 inches (398.78 mm) with high-density scanning capability. This range allows operators to scan items without needing direct contact, improving workflow efficiency. The scanner maintains accuracy across this distance with motion tolerance up to 35 inches per second and reading angles of 65° for skew and pitch with 360° roll capability.
Can this scanner read damaged or low-contrast barcodes?
Yes, the GD4520 handles challenging barcode conditions effectively. It reads barcodes with minimum print contrast as low as 15% and captures elements with resolutions down to 3 mil (0.08 mm) for Code 39 and 5 mil (0.13 mm) for Data Matrix formats. The laser imaging technology performs well in ambient light up to 100,000 lux, and grayscale image capture helps interpret damaged, faded, or partially obscured barcodes.
What industries is this barcode scanner designed for?
The GD4520 is engineered for healthcare, retail, light manufacturing, transportation, commercial service, laboratory, and pharmacy applications. Its comprehensive barcode support meets medical labeling requirements, retail product scanning, manufacturing work-in-progress tracking, logistics shipping labels, and pharmaceutical verification needs. The durable construction and reliable performance make it suitable for high-volume scanning across these diverse environments.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
