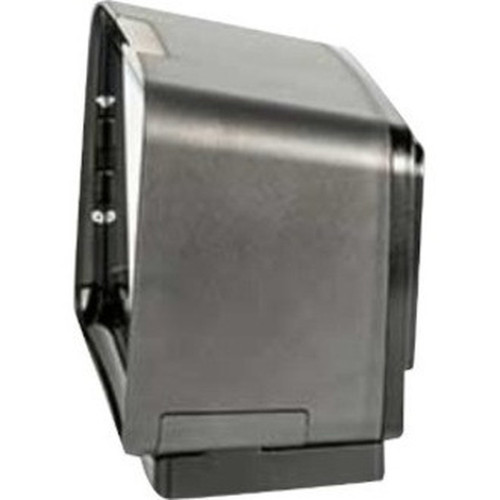

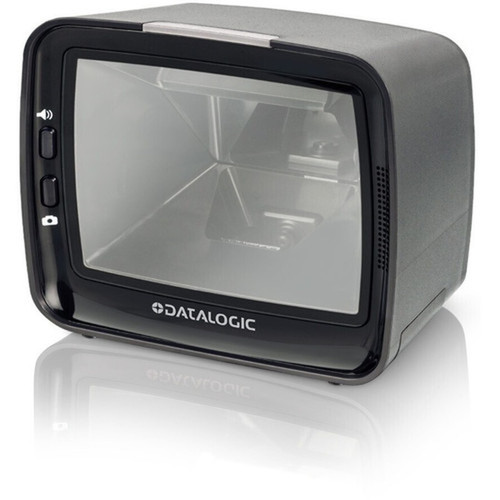

Datalogic Magellan 3410VSi Barcode Scanner - Cable Connectivity - 8" (203.20 mm) Scan Distance - 1D, 2D - LED - Imager - Area - USB, - (M3410-010200-01104)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
- Aztec Code, Data Matrix, QR Code
- GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417
- Optional support for Digimarc® Barcodes / GS1 DW Code
- 1 x Magellan 3410VSi Barcode Scanner
- 1 x US/Canada Power Supply,
- 1 x 15' RS232 Interface Cable
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
2D Codes:
Stacked Codes:
Digital Watermarks:
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Area
Scanning Distance: 8" (203.20 mm)
Cable Type Included: Serial
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 25%
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 20 mil (0.51 mm)
Image Sensor Resolution: 1280 x 800
Air Electrostatic Discharge (+/-): 25kV
Features: Beep,Notification LED,Sensormatic EAS,Checkpoint EAS,Ergonomic Design,Diagnostic Reporting
Host Interface: USB,Serial
Power Supply Included: Yes
Operating Temperature: 50°F (10°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Hands-free
Color Family: Dual Color
Product Color: Black,Silver
Product Material: Plastic
Durability: Spill Resistant
Weight (Approximate): 1.32 lb (600 g)
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage: Industrial,Retail,Pharmacy,Manufacturing,Self-checkout
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 3 Year
- Advanced digital imaging provides class-leading performance and reliability
- Seamless 1D, 2D and Digimarc® digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort Solid-state electronics for silent operation and superior reliability
- Powers from single Type A USB port- 2.5 W, available Magellan Customer Service Scanner (CSS) with omni-mount for reading cell phones, coupons and loyalty cards Software driven - flexible and upgradeable
- Image capture
- Micro SD card slot
- Multiple interfaces in every unit
- Powered USB auxiliary port - Not enabled when connected to 5V USB Type A host port
- Checkpoint Systems and Tyco Sensormatic EAS compatible
- Diagnostics reporting
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | M3410-010200-01104 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Model | 3410VSi |
| Product Name | Magellan 3410VSi Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D / Linear Codes:
2D Codes:
Stacked Codes:
Digital Watermarks:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanning Distance | 8" (203.20 mm) |
| Cable Type Included | Serial |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 20 mil (0.51 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Air Electrostatic Discharge (+/-) | 25kV |
| Features | Beep,Notification LED,Sensormatic EAS,Checkpoint EAS,Ergonomic Design,Diagnostic Reporting |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Power Description | |
| Power Supply Included | Yes |
| Environmental Conditions | |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Product Material | Plastic |
| Durability | Spill Resistant |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Industrial,Retail,Pharmacy,Manufacturing,Self-checkout |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
